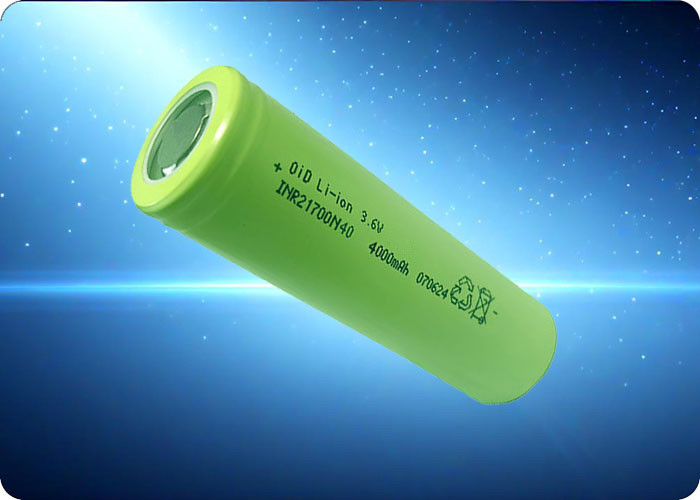

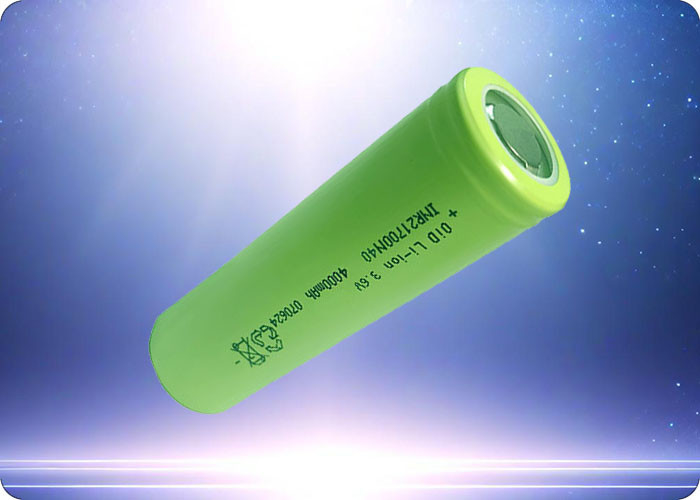

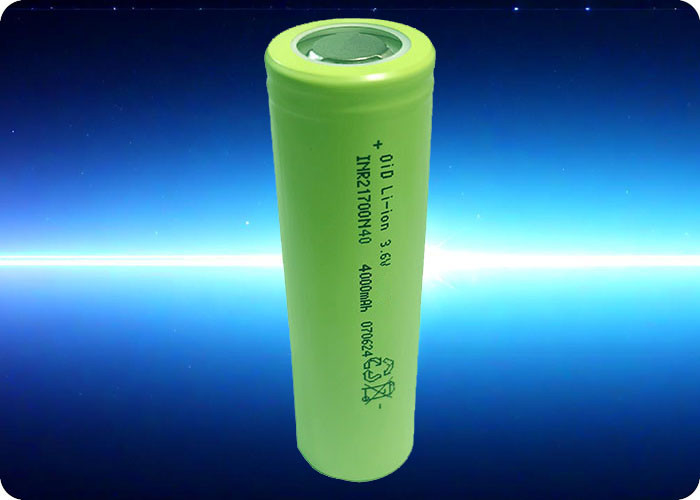

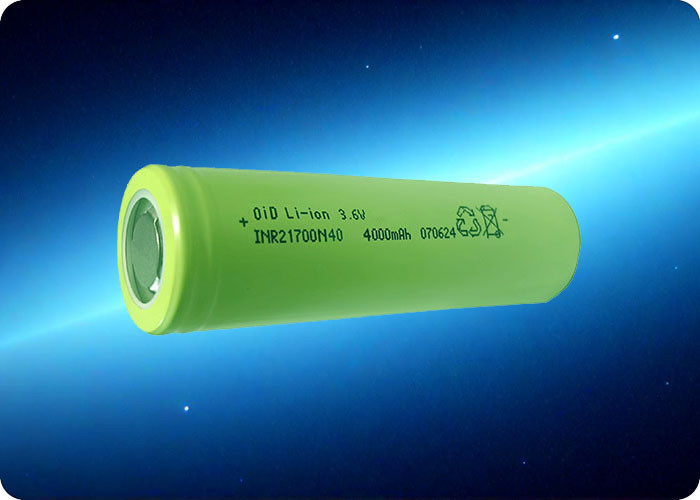

INR21700N40A40 3.7V 4000mAh 40A 300 Cycles 21700 Battery
Product Name
INR21700-4000-3.7 21700 Battery
Advantages
Specifications
|
Parameter |
Value |
|
Model |
INR21700N40A40 |
|
Nominal Voltage |
3.7V |
|
Nominal Capacity |
4000mAh |
|
Charging Voltage |
4.20V ± 0.05V |
|
Discharge Cut-off Voltage |
2.50V |
|
Max Charging Current |
6.0A |
|
Max Continuous Discharge Current |
40A |
|
Weight |
≤68.0g |
|
Dimensions |
Diameter: ≤21.30mm, Height: ≤70.40mm |
|
Internal Resistance |
≤15mΩ |
|
Energy Density |
Volume: 590Wh/L, Weight: 218Wh/kg |
|
Terminal Type |
Standard 21700 flat top or button top (customizable) |
Cycle Life
|
Condition |
Cycles |
Capacity Retention |
|
4A Charge / 20A Discharge |
300 |
≥60% |
|
4A Charge / 30A Discharge |
200 |
≥60% |
Discharge Curve
![]()
Operating Temperature Range
|
Condition |
Temperature Range |
|
Charging |
0°C to 50°C |
|
Discharging |
-20°C to 75°C |
|
Storage |
-20°C to 45°C (recommended for long-term storage) |
Certifications
Key Features
Applications
![]()
Usage Warnings & Precautions
Storage Guidelines
Warranty & Disclaimer
