18.6A Discharge LiFePo4 Battery
,LiFePo4 Battery 3.2V
,3.2V 6200 MAh Battery
-
NameLiFePo4 Battery
-
ODMFree Custom Design For Packs
-
Battery Type6200mAh Rechargeable
-
Superior Safety & StabilitySafe LiFePo4 Chemistry
-
Exceptional Lifespan2000+ Cycles
-
High-Temperature Resistance-20°C To 60°C
-
Eco-Friendly & Non-ToxicCobalt-free Chemistry, Non-hazardous Materials
-
Cost-Effective Long-Term ValueLower Total Ownership Cost
-
Place of OriginChina
-
Brand NameOiD
-
CertificationCompliant with UN38.3, CB, UL, PSE, BIS、KC、BSMI, IEC 62619, REACH standard
-
Model NumberIFR32700N62A18.6
-
Minimum Order Quantity100pcs
-
Price$0.5 ~ $100.0 / pcs
-
Delivery Time3 ~ 7 days for storage
-
Payment TermsTT,L/C,Western Union
3.2V 6200mAh LiFePo4 Battery 18.6A Discharge 2000+ Cycles
IFR32700N62A18.6 LiFePo4 Battery 3.2V 6200mAh 18.6A Discharge 2000+ Cycles
Product Name

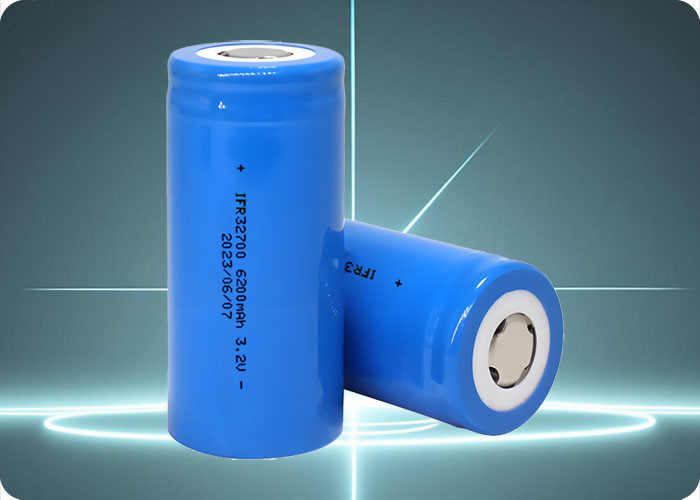

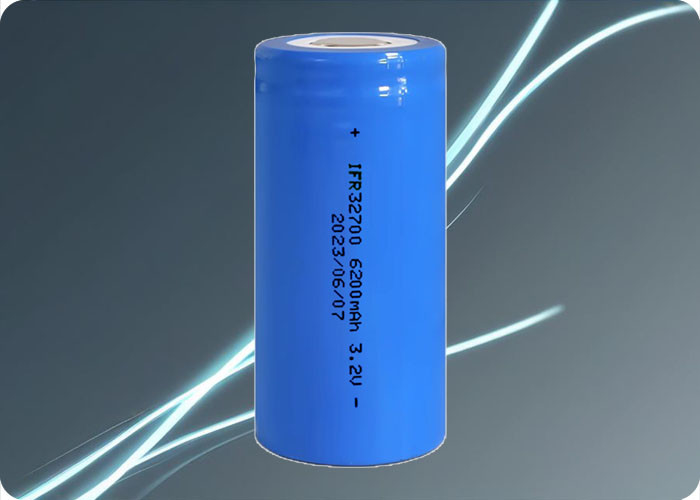

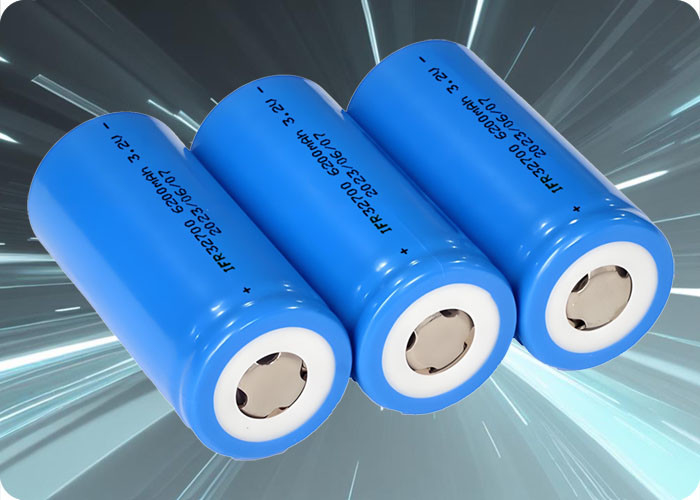

IFR32700N62A18.6 LiFePo4 Battery Cell
Advantages
- High-Current Capability: Supports up to 18.6A (3C) continuous discharge.
- Long Lifespan: 2000+ cycles with ≥80% capacity retention.
- Wide Temperature Operation: Reliable performance from -20°C to 60°C.
- Safe LiFePo4 Chemistry: Intrinsically stable with minimal thermal runaway risk.
- Fast Charging: 0.5C (3100mA) rated charge current.
Specifications
|
Parameter |
Value |
|
Model |
IFR32700N62A18.6 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
6200mAh |
|
Energy |
19.8Wh |
|
Internal Resistance |
≤8mΩ |
|
Max Continuous Charge Current |
3100mA (0.5C) |
|
Max Continuous Discharge Current |
18600mA (3C) |
|
Charging Voltage |
3.65V |
|
Discharge Cut-off Voltage |
2.0V |
|
Terminal Type |
M6 Threaded Terminal |
|
Weight |
142g |
|
Dimensions (Diameter × Height) |
32.5mm × 70.5mm |
Cycle Life
|
Cycles |
Capacity Retention |
Test Conditions |
|
1000 cycles |
≥90% |
0.5C Charge/Discharge, 25°C |
|
2000 cycles |
≥80% |
0.5C Charge/Discharge, 25°C |
Operating Temperature Range
|
Mode |
Temperature Range |
Max Current (Charge/Discharge) |
|
Charging |
0°C to 45°C |
3100mA (0.5C) |
|
Discharging |
-20°C to 60°C |
18600mA (3C) |
Discharge Curve
[Graph placeholder: Voltage vs. Capacity at 0.5C, 1C, and 3C discharge rates.]
Certifications
- Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
Key Features
- Durable Terminal Design: M6 threaded terminals for secure high-current connections.
- Low Self-Discharge: <3% monthly loss for long-term reliability.
- Compact & Lightweight: Optimized energy density (19.8Wh) in a portable 32700 format.
Applications
- Solar Energy Systems: Off-grid solar storage, solar-powered lighting.
- Electric Mobility: E-scooters, electric wheelchairs, and hybrid vehicles.
- Industrial Automation: Robotics, AGVs (Automated Guided Vehicles), and power tools.
- Emergency Backup: Data center UPS, medical equipment power reserves.
- Outdoor Gear: Portable solar generators and camping power stations.
Usage Warnings & Precautions
- ⚠️ Never charge above 45°C or discharge below -20°C to avoid irreversible damage.
- Use only LiFePo4-compatible chargers with 3.65V voltage limits.
- Avoid mechanical stress, water exposure, or terminal short circuits.
- Ensure proper insulation during installation.
Storage Guidelines
- Optimal SOC for Storage: 30%-50% (2.8V-3.3V per cell).
- Storage Temperature Range: -10°C to 35°C (dry, non-condensing environment).
- Recharge Frequency: Every 6 months for batteries in prolonged storage.
Warranty & Disclaimer
- Warranty: 24-month limited warranty against manufacturing defects.
- Disclaimer: Warranty void if misused (e.g., overcurrent, extreme temperatures). Dispose of batteries per local regulations.
