14.4A Lifepo4 Rechargeable Battery
,3.2V 4800mah Rechargeable Battery
,14.4A 4800mah Rechargeable Battery
-
NameLifepo4 Rechargeable Battery
-
ODMFree Custom Design For Packs
-
Battery Type4800mAh Rechargeable
-
Superior Safety & StabilitySafe LiFePo4 Chemistry
-
Exceptional Lifespan2000+ Cycles
-
High-Temperature Resistance-20°C To 60°C
-
Eco-Friendly & Non-ToxicCobalt-free Chemistry, Non-hazardous Materials
-
Cost-Effective Long-Term ValueLower Total Ownership Cost
-
Place of OriginChina
-
Brand NameOiD
-
CertificationCompliant with UN38.3, CB, UL, PSE, BIS、KC、BSMI, IEC 62619, REACH standard
-
Model NumberIFR26700N48N14.4
-
Minimum Order Quantity100pcs
-
Price$0.5 ~ $100.0 / pcs
-
Delivery Time3 ~ 7 days for storage
-
Payment TermsTT,L/C,Western Union
3.2V 4800mAh LiFePo4 Battery 14.4A Discharge 2000+ Cycles
IFR26700N48N14.4 LiFePo4 Battery 3.2V 4800mAh 14.4A Discharge 2000+ Cycles
Product Name

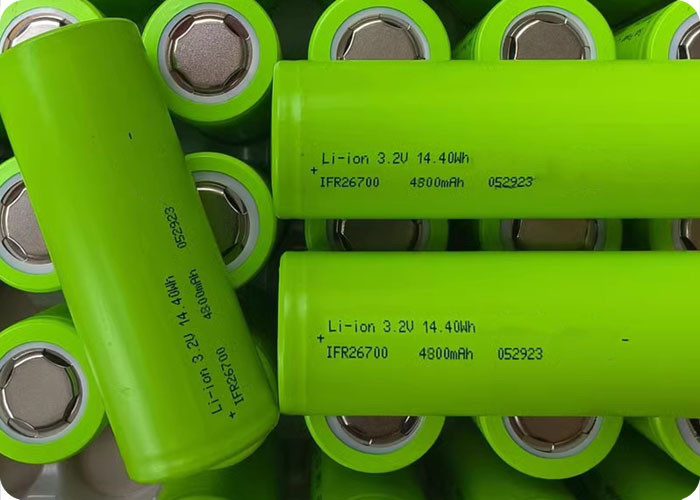

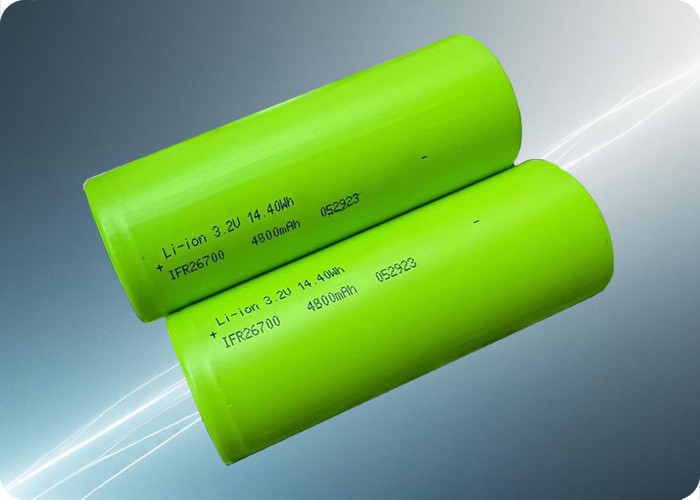

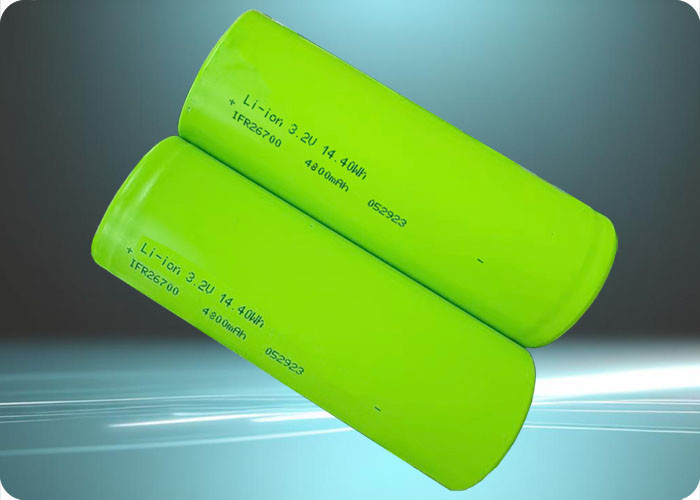

IFR26700N48N14.4 LiFePo4 Battery Cell
Advantages
- High Discharge Capability: Supports up to 14.4A (3C) continuous output for power-demanding tasks.
- Extended Cycle Life: 2000+ cycles with ≥80% capacity retention.
- Wide Temperature Range: Reliable operation from -20°C to 60°C.
- Safe LiFePo4 Chemistry: Inherent stability reduces thermal runaway risks.
- Efficient Charging: 0.5C (2400mA) rated charge current.
Specifications
|
Parameter |
Value |
|
Model |
IFR26700N48N14.4 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
4800mAh |
|
Energy |
15.36Wh |
|

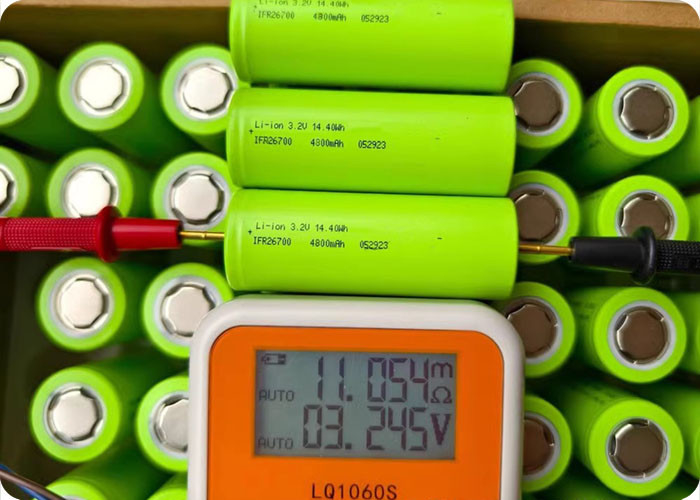

Internal Resistance |
≤25mΩ |
|
Max Continuous Charge Current |
2400mA (0.5C) |
|
Max Continuous Discharge Current |
14400mA (3C) |
|
Charging Voltage |
3.65V |
|
Discharge Cut-off Voltage |
2.0V |
|
Weight |
114g |
|
Dimensions (Diameter × Height) |
26.5mm × 70.5mm |
Cycle Life
|
Cycles |
Capacity Retention |
Test Conditions |
|
1000 cycles |
≥90% |
0.5C Charge/Discharge, 25°C |
|
2000 cycles |
≥80% |
0.5C Charge/Discharge, 25°C |
Operating Temperature Range
|
Mode |
Temperature Range |
Max Current (Charge/Discharge) |
|
Charging |
0°C to 45°C |
2400mA (0.5C) |
|
Discharging |
-20°C to 60°C |
14400mA (3C) |
Discharge Curve
Certifications
- Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
Key Features
- Compact Design: Slim 26700 form factor (26.5mm diameter) for space-constrained applications.
- Low Self-Discharge: <3% monthly loss during storage.
- Durable Construction: Robust casing for mechanical resilience.
Applications
- Portable Electronics: High-drain devices like LED flashlights and handheld scanners.
- Light Electric Vehicles: Electric skateboards, compact e-bikes, and mobility scooters.
- Renewable Energy Storage: Small solar panels and portable wind turbines.
- Medical Devices: Battery-powered medical monitors and portable equipment.
- IoT & Sensors: Long-life power for remote sensors and wireless devices.
Usage Warnings & Precautions
- ⚠️ Never charge above 45°C or discharge below -20°C to avoid permanent damage.
- Use only LiFePo4-specific chargers with 3.65V cut-off.
- Prevent terminal short circuits with insulated tools and protective covers.
- Avoid crushing, puncturing, or exposing the battery to water.
Storage Guidelines
- Optimal Storage SOC: 30%-50% (2.8V-3.3V per cell).
- Temperature: -10°C to 35°C (dry, non-condensing conditions).
- Recharge Frequency: Every 6 months for batteries stored long-term.
Warranty & Disclaimer
- Warranty: 24-month limited warranty against manufacturing defects.
- Disclaimer: Warranty void if misused (e.g., over-discharge, extreme temperatures). Dispose per local regulations.
