Highlight
3.2V LiFePo4 Battery
,4500mAh LiFePo4 Battery
,13.5A Discharge 26700 Battery
-
NameLiFePo4 Battery
-
ODMFree Custom Design For Packs
-
Battery Type4500mAh Rechargeable
-
Superior Safety & StabilitySafe LiFePo4 Chemistry
-
Exceptional Lifespan2000+ Cycles
-
High-Temperature Resistance-20°C To 60°C
-
Eco-Friendly & Non-ToxicCobalt-free Chemistry, Non-hazardous Materials
-
Cost-Effective Long-Term ValueLower Total Ownership Cost
-
Place of OriginChina
-
Brand NameOiD
-
CertificationCompliant with UN38.3, CB, UL, PSE, BIS、KC、BSMI, IEC 62619, REACH standard
-
Model NumberIFR26700N45A13.5
-
Minimum Order Quantity100pcs
-
Price$0.5 ~ $100.0 / pcs
-
Delivery Time3 ~ 7 days for storage
-
Payment TermsTT,L/C,Western Union

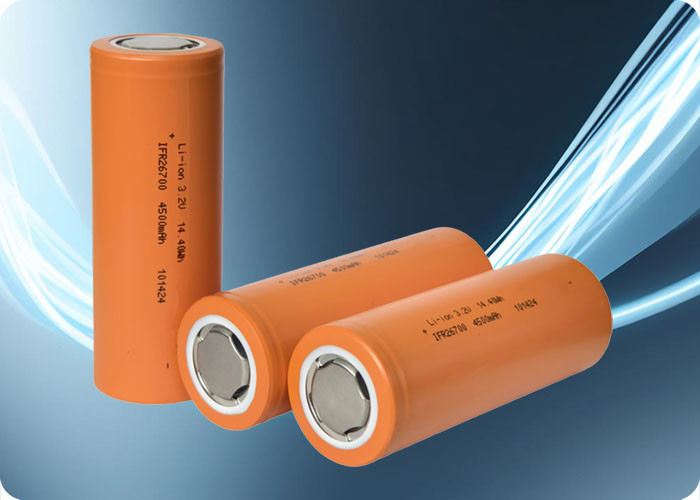

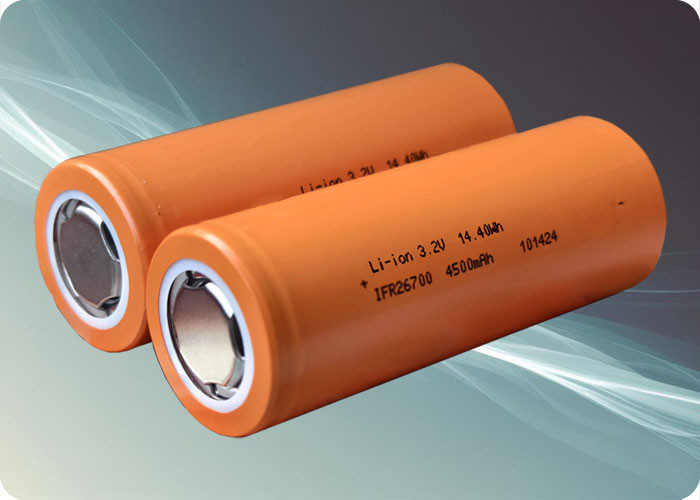

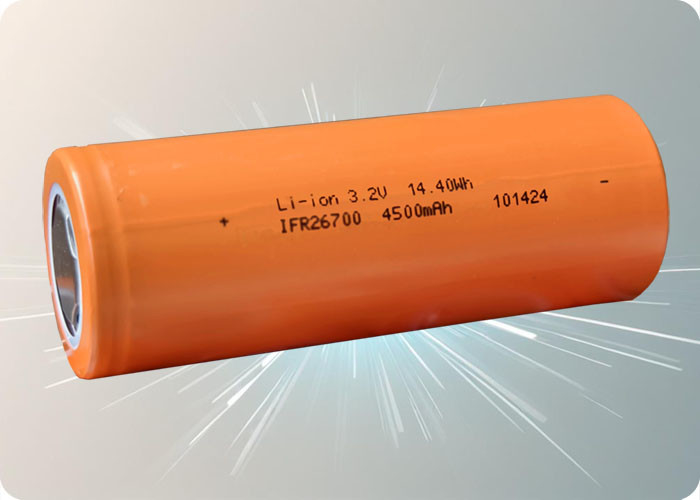

3.2V 4500mAh LiFePO4 Battery 13.5A Discharge 2000 Cycles
IFR26700N45A13.5 LiFePO4 Battery 3.2V 4500mAh 13.5A Discharge 2000 Cycles
Product Name
IFR26700N45A13.5 LiFePO4 Battery
Advantages
- Compact energy storage (14.4Wh) with reduced weight (106g)
- Stable performance under high-current discharge
- Extended cycle life for cost-effective use
- Safe and reliable LiFePO4 chemistry
Specifications
|
Parameter |
Value |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
4500mAh |
|
Energy |
14.4Wh |
|
Max Continuous Discharge |
13.5A (13500mA) |
|
Rated Discharge Current |
2.25A (2250mA) |
|
Max Charge Current |
2.25A (2250mA) |
|
Charging Voltage |
3.65V |
|
Discharge Cut-off Voltage |
2.0V |
|

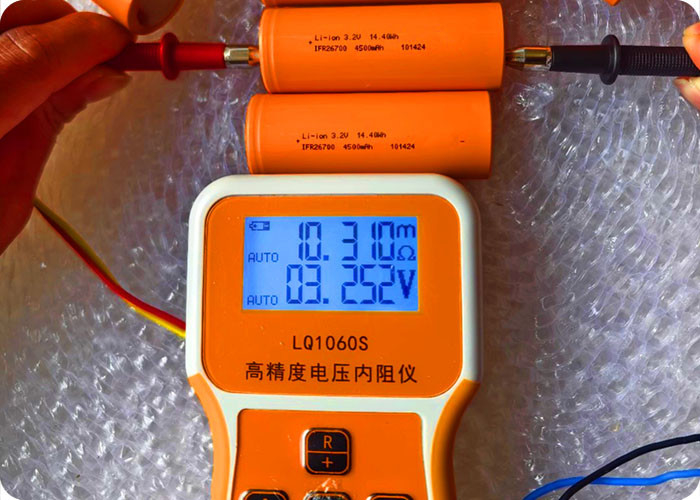

Internal Resistance |
≤25mΩ |
|
Dimensions |
26.5mm (D) × 70.5mm (H) |
|
Weight |
106g |
Cycle Life
|
Condition |
Performance |
|
80% Depth of Discharge (DoD) |
≥2000 cycles |
|
100% DoD |
≥1500 cycles |
Discharge Curve
Operating Temperature Range
|
Mode |
Temperature Range |
|
Charging |
0°C to 45°C |
|
Discharging |
-20°C to 60°C |
|
Storage |
-20°C to 35°C |
Certifications
Compliant with UN38.3, IEC 62133, and RoHS standards.
Key Features
- Ultra-low internal resistance (25mΩ) for minimal energy loss.
- Supports fast charging (2.25A) and high-power discharge (13.5A).
- Flame-retardant LiFePO4 technology for enhanced safety.
- Lightweight design ideal for portable applications.
Applications
- Portable Power Stations: Backup energy for camping, emergencies, and outdoor activities.
- E-Scooters & E-Bikes: Reliable power for urban commuting and recreational vehicles.
- Marine Equipment: Power for fish finders, trolling motors, and onboard electronics.
- Medical Devices: Emergency power for portable oxygen concentrators and monitors.
- Consumer Electronics: High-performance batteries for drones and RC models.
Usage Warnings & Precautions
- Never exceed 3.65V charging voltage.
- Avoid exposing to temperatures beyond 0°C–45°C (charging) or -20°C–60°C (discharging).
- Use only LiFePO4-compatible chargers and controllers.
- Prevent physical damage, water exposure, or reverse polarity.
Storage Guidelines
- Store at 30–50% charge in a dry, temperature-controlled environment (≤35°C).
- Recharge every 3–6 months during prolonged storage.
Warranty & Disclaimer
- Warranty: 24-month limited warranty covering manufacturing defects.
- Disclaimer: Warranty void if misused (e.g., overcharging, extreme temperatures). Performance metrics based on lab testing.
