Highlight
12.6A Lifepo4 26650 Battery
,3.2V 4200mAh Rechargeable Battery
,4200mAh Rechargeable Battery Lightweight
-
NameLifepo4 26650 Battery
-

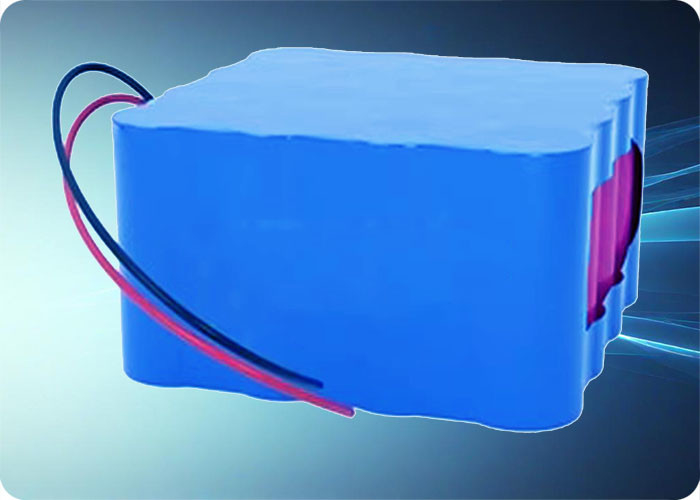

ODMFree Custom Design For Packs
-
Battery Type4200mAh Rechargeable
-
Superior Safety & StabilitySafe LiFePo4 Chemistry
-
Exceptional Lifespan2000+ Cycles
-
High-Temperature Resistance-20°C To 60°C
-
Eco-Friendly & Non-ToxicCobalt-free Chemistry, Non-hazardous Materials
-
Cost-Effective Long-Term ValueLower Total Ownership Cost
-
Place of OriginChina
-
Brand NameOiD
-
CertificationCompliant with UN38.3, CB, UL, PSE, BIS、KC、BSMI, IEC 62619, REACH standard
-
Model NumberIFR26650N42A12.6
-
Minimum Order Quantity100pcs
-
Price$0.5 ~ $100.0 / pcs
-
Delivery Time3 ~ 7 days for storage
-
Payment TermsTT,L/C,Western Union
3.2V 4200mAh LiFePo4 26650 Battery 12.6A Discharge 2000+ Cycles
IFR26650N42A12.6 LiFePo4 Battery 3.2V 4200mAh 12.6A Discharge 2000+ Cycles
Product Name
IFR26650N42A12.6 LiFePo4 Battery Cell
Advantages
- High Discharge Capability: Supports up to 12.6A (3C) continuous discharge for power-intensive tasks.
- Long Cycle Life: 2000+ cycles with ≥80% capacity retention.
- Lightweight Design: Ultra-compact and portable for space-sensitive applications.
- Safe LiFePo4 Chemistry: Inherent stability with minimal thermal runaway risk.
- Efficient Charging: 0.5C (2100mA) rated charge current.
Specifications
|
Parameter |
Value |
|
Model |
IFR26650N42A12.6 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
4200mAh |
|
Energy |
13.44Wh |
|
Internal Resistance |
≤25mΩ |
|
Max Continuous Charge Current |
2100mA (0.5C) |
|
Max Continuous Discharge Current |
12600mA (3C) |
|
Charging Voltage |
3.65V |
|
Discharge Cut-off Voltage |
2.0V |
|
Weight |
92g |
|
Dimensions (Diameter × Height) |
26.5mm × 66.5mm |
Cycle Life
|
Cycles |
Capacity Retention |
Test Conditions |
|
1000 cycles |
≥90% |
0.5C Charge/Discharge, 25°C |
|
2000 cycles |
≥80% |
0.5C Charge/Discharge, 25°C |
Operating Temperature Range
|
Mode |
Temperature Range |
Max Current (Charge/Discharge) |
|
Charging |
0°C to 45°C |
2100mA (0.5C) |
|
Discharging |
-20°C to 60°C |
12600mA (3C) |
Discharge Curve
Certifications
- Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
Key Features
- Compact Energy Storage: 13.44Wh capacity in a slim 26650 format.
- Low Self-Discharge: <3% monthly loss during idle storage.
- Durable Terminal Compatibility: Standard connectors for easy integration.
Applications
- Portable Lighting: High-lumen flashlights, camping lanterns.
- Consumer Electronics: Wireless speakers, portable fans, and drones.
- Power Tools: Compact cordless screwdrivers and mini grinders.
- Backup Systems: Emergency alarms, security cameras, and IoT devices.
- DIY Projects: Hobbyist robotics and small-scale energy storage prototypes.
Usage Warnings & Precautions
- ⚠️ Never charge above 45°C or discharge below -20°C to prevent irreversible cell damage.
- Use only LiFePo4-specific chargers with 3.65V voltage control.
- Avoid terminal short circuits, physical impacts, or exposure to liquids.
- Ensure proper insulation during installation.
Storage Guidelines
- Optimal Storage SOC: 30%-50% (2.8V-3.3V per cell).
- Storage Temperature: -10°C to 35°C (dry, non-condensing environment).
- Recharge Interval: Every 6 months for long-term stored batteries.
Warranty & Disclaimer
- Warranty: 24-month limited warranty against manufacturing defects.
- Disclaimer: Warranty void if misused (e.g., over-discharge, extreme temperatures). Dispose responsibly per local regulations.
Our products are sold all over the world, you can rest assured.
