Highlight
10.8A 26650 LiFePo4 Battery
,3600mAh 3.2 Volt Rechargeable Battery
,LiFePo4 Battery 3600mAh
-
Name26650 LiFePo4 Battery
-
ODMFree Custom Design For Packs
-
Battery Type3600mAh Rechargeable
-
Superior Safety & StabilitySafe LiFePo4 Chemistry
-
Exceptional Lifespan2000+ Cycles
-
High-Temperature Resistance-20°C To 60°C
-
Eco-Friendly & Non-ToxicCobalt-free Chemistry, Non-hazardous Materials
-
Cost-Effective Long-Term ValueLower Total Ownership Cost
-
Place of OriginChina
-
Brand NameOiD
-
CertificationCompliant with UN38.3, CB, UL, PSE, BIS、KC、BSMI, IEC 62619, REACH standard
-
Model NumberIFR26650N36A10.8
-
Minimum Order Quantity100pcs
-
Price$0.5 ~ $100.0 / pcs
-
Delivery Time3 ~ 7 days for storage
-
Payment TermsTT,L/C,Western Union
26650 LiFePo4 Battery 3.2V 3600mAh 10.8A Rechargeable 2000+ Cycles
IFR26650N36A10.8 LiFePo4 Battery 3.2V 3600mAh 10.8A Discharge 2000+ Cycles
Product Name

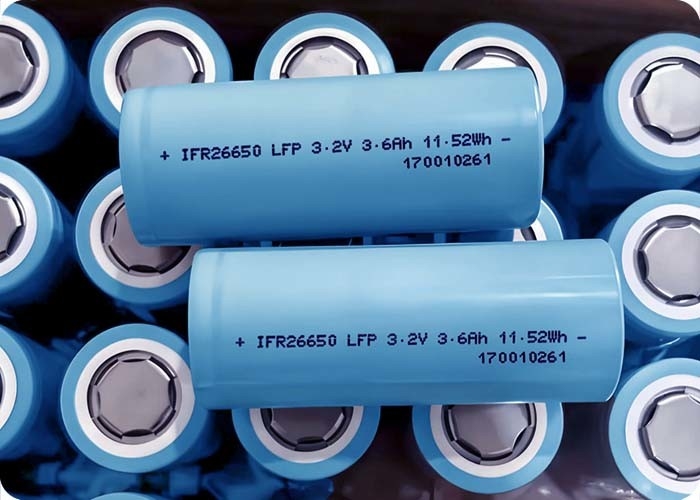

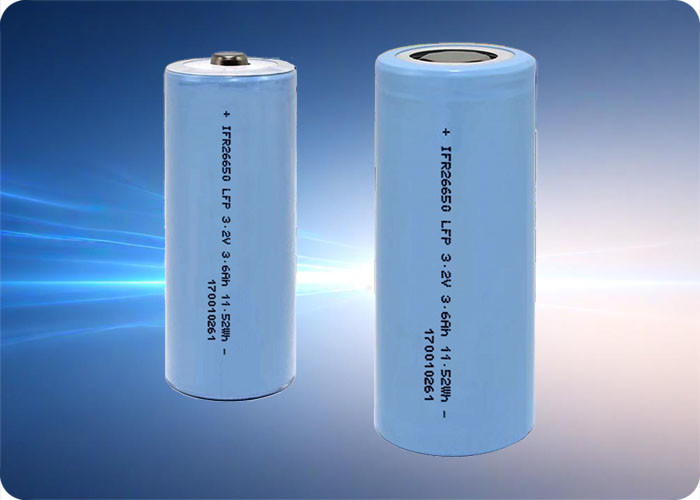

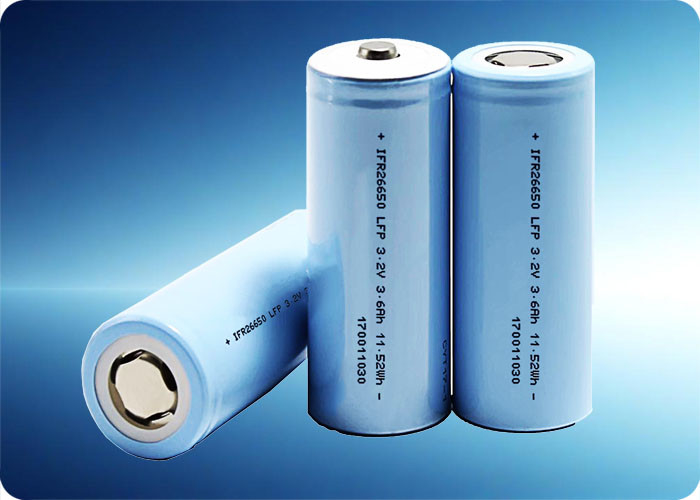

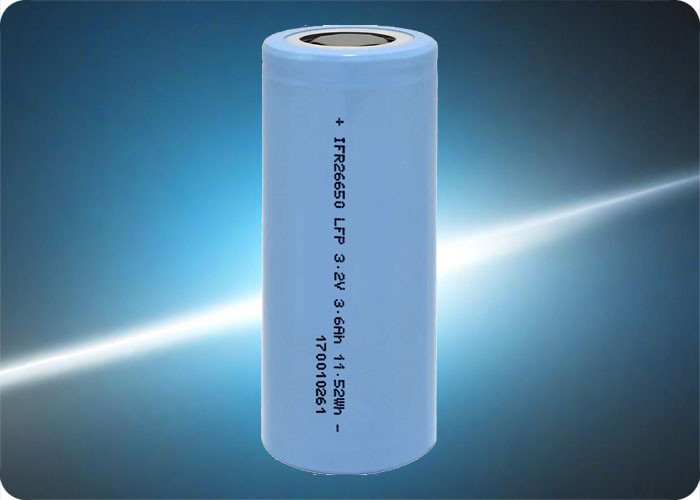

IFR26650N36A10.8 LiFePo4 Battery Cell
Advantages
- High Discharge Capability: Supports up to 10.8A (3C) continuous discharge for power-demanding applications.
- Extended Cycle Life: 2000+ cycles with ≥80% capacity retention.
- Lightweight & Compact: Optimized for portable and space-sensitive designs.
- Safe LiFePo4 Chemistry: Inherent thermal stability minimizes safety risks.
- Fast Charging: 0.5C (1800mA) rated charge capability.
Specifications
|
Parameter |
Value |
|
Model |
IFR26650N36A10.8 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
3600mAh |
|
Energy |
11.5Wh |
|
Internal Resistance |
≤25mΩ |
|
Max Continuous Charge Current |
1800mA (0.5C) |
|
Max Continuous Discharge Current |
10800mA (3C) |
|
Charging Voltage |
3.65V |
|
Discharge Cut-off Voltage |
2.0V |
|
Weight |
86g |
|
Dimensions (Diameter × Height) |
26.3mm × 66.5mm |
Cycle Life
|
Cycles |
Capacity Retention |
Test Conditions |
|
1000 cycles |
≥90% |
0.5C Charge/Discharge, 25°C |
|
2000 cycles |
≥80% |
0.5C Charge/Discharge, 25°C |
Operating Temperature Range
|
Mode |
Temperature Range |
Max Current (Charge/Discharge) |
|
Charging |
0°C to 45°C |
1800mA (0.5C) |
|
Discharging |
-20°C to 60°C |
10800mA (3C) |
Discharge Curve
Certifications
- Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
Key Features
- Optimized Energy Density: 11.5Wh in a lightweight 26650 format.
- Low Self-Discharge: <3% per month for long-term storage reliability.
- Universal Compatibility: Standard terminals for seamless integration.
Applications
- Portable Electronics: Digital cameras, handheld gaming devices, and GPS units.
- Low-Power Tools: Miniature cordless screwdrivers and hobbyist equipment.
- Solar-Powered Devices: Compact solar chargers and outdoor lighting.
- Medical Devices: Portable glucometers and wearable health monitors.
- IoT & Wearables: Long-lasting power for smartwatches and fitness trackers.
Usage Warnings & Precautions
- ⚠️ Do NOT charge above 45°C or discharge below -20°C to prevent irreversible damage.
- Use only LiFePo4-compatible chargers with 3.65V voltage limits.
- Avoid terminal short circuits, mechanical stress, or exposure to liquids.
- Ensure proper insulation during installation.
Storage Guidelines
- Recommended Storage SOC: 30%-50% (2.8V-3.3V per cell).
- Storage Temperature: -10°C to 35°C (dry, non-condensing environment).
- Recharge Interval: Every 6 months for batteries stored long-term.
Warranty & Disclaimer
- Warranty: 24-month limited warranty against manufacturing defects.
- Disclaimer: Warranty void if misused (e.g., overcurrent, extreme temperatures). Dispose per local regulations.
