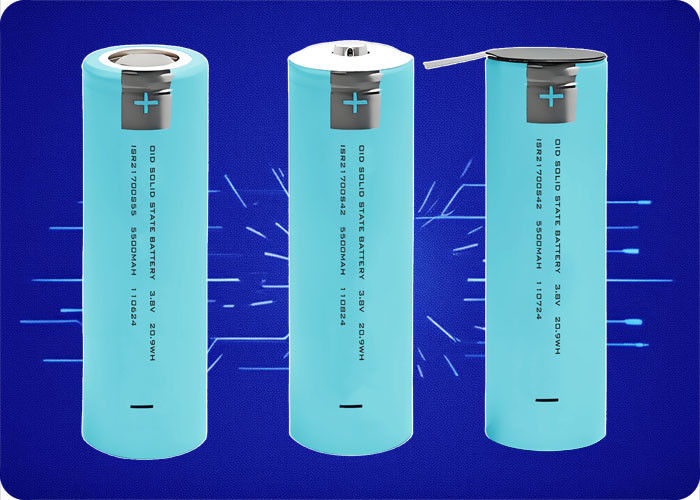

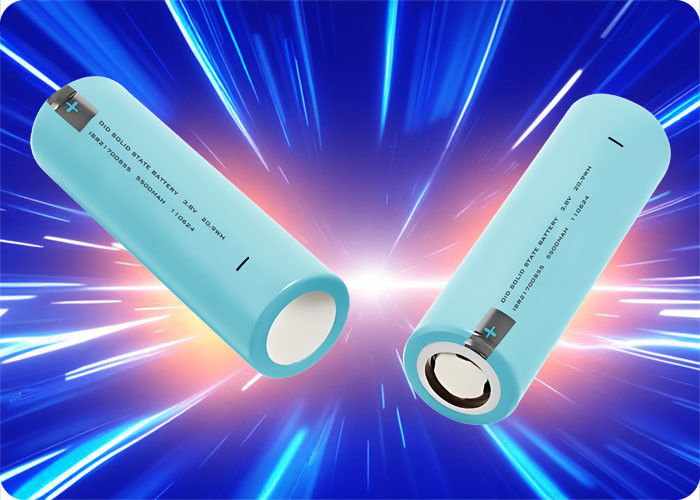

21700 Solid State Battery 3.8V 5.5Ah 1000 Cycles 3C Discharge

21700 Solid State Battery 3.8V 5.5Ah 1000 Cycles 3C Discharge

Products - Solid State Battery
  • Highlight

    1000 Cycles Solid State Battery

    ,

    Cycles Solid State Battery 3C

    ,

    3.8V 5.5 Ah Battery

  • Name
    Solid State Battery
  • ODM
    Free Custom Design
  • Battery Type
    5.5Ah Rechargeable
  • Extended Lifespan
    Endure 1, 000 Cycles
  • Higher Energy Density
    300Wh/kg
  • Ultra-Fast Charging
    1C Fast Charge Rate
  • Wider Temperature Tolerance
    Stable Performance In Extreme Conditions (from -30°C To 100°C)
  • Enhanced Safety
    Solid-state Liquid Electrolytes For Worry-free Usage.
  • Place of Origin
    China
  • Brand Name
    OiD
  • Certification
    Compliant with solid state battery standards (IEC 62133-2, UN38.3)
  • Model Number
    ISR21700S55
  • Minimum Order Quantity
    100pcs
  • Price
    $0.5 ~ $100.0 / pcs
  • Delivery Time
    3 ~ 7 days for storage
  • Payment Terms
    TT,L/C,Western Union

21700 Solid State Battery 3.8V 5.5Ah 1000 Cycles 3C Discharge

  • 21700 Solid State Battery 3.8V 5.5Ah 1000 Cycles 3C Discharge
  • 21700 Solid State Battery 3.8V 5.5Ah 1000 Cycles 3C Discharge
Get Price Contact Now
21700 Solid State Battery 3.8V 5.5Ah 1000 Cycles 3C Discharge 0

ISR21700S55 3.8V 5.5Ah 3C Discharge 1000 Cycles 21700 Solid State Battery

Product Name

21700 Solid State Cylindrical Cell (Model: ISR21700S55)


Advantages

  • High Energy Density (3.8V Platform)
  • Standard 21700 Form Factor (21mm × 70mm)
  • Optimized for Long Cycle Life

Specifications

Parameter

Specification

Nominal Capacity

5.5Ah

Nominal Voltage

3.8V

Cell Configuration

21700 (21mm × 70mm)

Typical Energy

20.9Wh

Weight

Approx. 72g

Max Continuous Discharge

3C (16.5A)

Peak Discharge (≤2sec)

5C (27.5A)

Standard Charge Rate

0.5C (2.75A)

Fast Charge Rate

1C (5.5A)



Cycle Life

Test Condition

Performance

0.5C Charge / 1C Discharge @25°C

≥1000 cycles


Operating Temperature Range

Operation

Temperature Range

Charging

0°C to 45°C

Discharging

-30°C to 100°C

Storage (≤1 year)

-20°C to 45°C


Certifications

Compliant with solid state battery standards (IEC 62133-2, UN38.3)


Key Features

  • Advanced solid state electrolyte technology
  • Stable voltage output under load
  • Low self-discharge rate (<3% per month)

Applications

  • High-end power tools
  • Electric vehicle subsystems
  • Professional audio equipment
  • Medical monitoring devices

21700 Solid State Battery 3.8V 5.5Ah 1000 Cycles 3C Discharge 1

Usage Warnings

  • Charge voltage must not exceed 4.25V
  • Do not discharge below 2.75V
  • Requires protection circuit for commercial applications

Storage Guidelines

  • Ideal storage charge: 40-60% SOC
  • Recommended ambient storage: 15-25°C
  • Avoid high humidity environments

Warranty

12-month manufacturer warranty
