INR21700N60YD 3.6V 6000mAh 60A Discharge 500 Cycle
Product Name

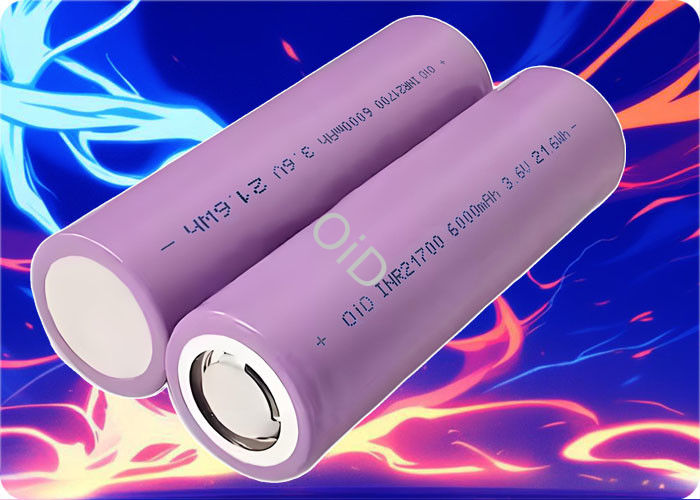

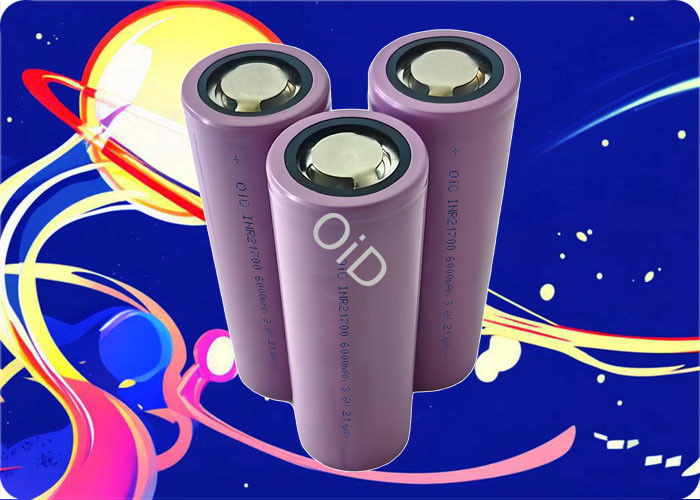

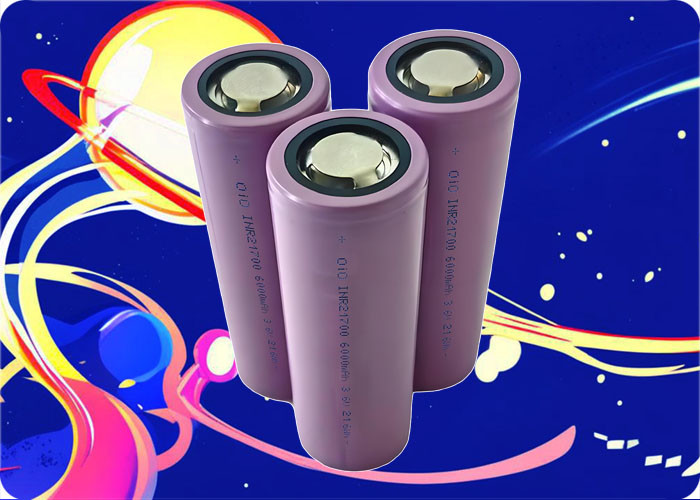

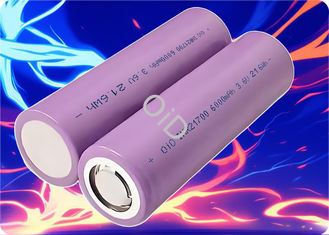

21700 Li-Ion Battery (INR21700N60YD)
Advantages
Specifications
|
Item |
Specification |
|
Nominal Voltage |
3.6V |
|
Nominal Capacity |
6000mAh |
|
Minimum Capacity |
5850mAh |
|
Energy Density |
296Wh/kg |
|
Internal Resistance |
≤25mΩ (AC, 1000Hz) |
|
Charge Cut-off Voltage |
4.20V |
|
Discharge Cut-off Voltage |
2.50V |
|
Standard Charge Current |
0.5C (3000mA) |
|
Standard Discharge Current |
1C (6000mA) |
|
Max Charge Current |
0.7C (4200mA) at 15°C–45°C; 0.5C (3000mA) at 5°C–15°C; 0.1C (600mA) at 0°C–5°C |
|
Max Discharge Current |
10C (60A) at 0°C–35°C; 1C (6000mA) at -20°C–0°C |
|
Dimensions |
21.65±0.2mm (Diameter) × 70.95±0.2mm (Height) |
|
Weight |
≤75g |
Cycle Life
|
Condition |
Performance |
|
Charge/Discharge Cycles (0.5C/1C) |
≥500 cycles (70% capacity retention) |
|
Storage at 25°C (28 days) |
≥85% residual capacity; ≥90% recovery capacity |
|
Storage at 55°C (7 days) |
≥85% residual capacity; ≥90% recovery capacity |
Discharge Curve
Operating Temperature Range
|
Operation |
Temperature Range |
|
Charging |
0°C to 45°C |
|
Discharging |
-20°C to 60°C |
|
Storage |
-20°C to 40°C (≤3 months); -20°C to 20°C (≤12 months) |
Certifications
Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
Key Features
Applications
Usage Warnings & Precautions
Storage Guidelines
Warranty & Disclaimer
