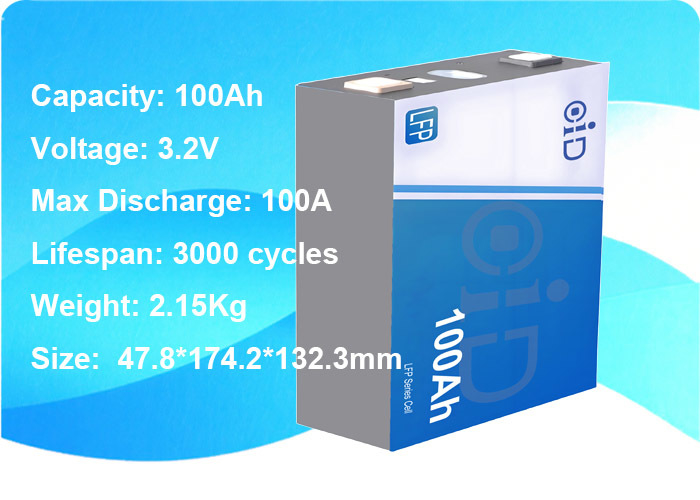

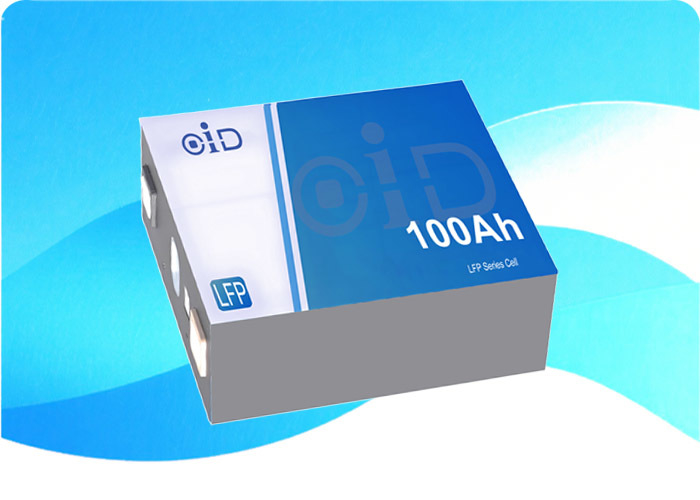

3.2V 100Ah Rechargeable Lithium Iron Phosphate lithium solar battery
- Long cycle life: Supports 3000 cycles with 80% capacity retention, ensuring durable performance for long-term use.
- Wide temperature adaptability: Operates efficiently in a broad temperature range, suitable for various environmental conditions.
- High safety: Built with lithium iron phosphate chemistry, featuring stable performance and strong resistance to overcharge, over-discharge, and short circuits.
- Low self-discharge: ≤3.5% per month, maintaining capacity well during storage.
- Reliable output: Provides stable voltage and current, ideal for consistent power supply in solar energy systems and other applications.
| Parameter |
Details |
| Nominal Voltage |
3.2V |
| Nominal Capacity |
100Ah (tested at 25±2℃ with standard charge/discharge mode) |
| Maximum Charge Current |
1.0C (continuous, at 25±2℃; varies with temperature, see Operating Temperature Range) |
| Maximum Discharge Current |
1.0C (continuous, at 25±2℃; varies with temperature, see Operating Temperature Range) |
| Standard Charge Voltage |
3.65V (max per cell, at 25±2℃) |
| Discharge Cut-off Voltage |
2.50V (0℃<T≤60℃); 2.00V (-20℃≤T≤0℃) |
| Internal Resistance (1KHz) |
≤0.40mΩ (fresh cell) |
| Weight |
2.15±0.1Kg |
| Dimensions |
Thickness: 47.8±0.5mm (under 300±50Kgf pressure); Width: 174.2±0.8mm; Height: 132.3±0.8mm (including poles) |
| Self-discharge |
≤3.5% per month (after 3 months of shipment, stored at 25±2℃ with 40% SOC) |
| Insulation Performance |
Insulation resistance ≥1GΩ or insulation current ≤20mA (tested at 300±50Kgf pressure with 500±10V/1500±50V voltage) |
| Condition |
Performance |
| Temperature: 25±2℃; Charge/Discharge Rate: 1.0C; Initial Pressure: 300±50Kgf |
3000 cycles with ≥80% capacity retention |
| Storage at 25±2℃, 100% SOC, under 300±50Kgf preload for 28 days |
≥95% residual capacity |
The lithium solar battery exhibits stable discharge performance across different temperatures:
- At 55℃: Discharge capacity ≥95.0Ah.
- At -20℃: Discharge capacity ≥70.0Ah.
Discharge efficiency varies with temperature and current, with optimal performance at 20-30℃.
| Type |
Temperature Range |
Maximum Charge Current (C) by Temperature/SOC* |
Maximum Discharge Current (C) by Temperature/SOC* |
| Charging |
0℃~60℃ |
0℃/60℃: 0C; 2~5℃: 0.12C; 7~12℃: 0.30C; 15℃: 0.50C; 20~45℃: 1.00C (80% SOC), 0.75~0.80C (85~90% SOC); 50℃: 0.80C; 55℃: 0.30C |
- |
| Discharging |
-20℃~60℃ |
- |
-20℃: 0.02~0.20C; -10℃: 0.10~1.00C; 0~10℃: 0.25~2.00C; 15~45℃: 0.30~3.00C; 50℃: 0.25~2.00C; 55℃: 0.15~1.20C; 60℃: 0C |
*Note: The charging/discharging rate between 55-60℃ follows a linear relationship; other temperature ranges refer to the minimum temperature rate.
Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
- High cycle stability: 3000 cycles with 80% capacity retention, reducing replacement frequency.
- Broad temperature tolerance: Functions reliably in extreme cold (-20℃) and heat (60℃), suitable for outdoor lithium solar battery systems.
- Low self-discharge: Maintains capacity for extended periods without frequent charging.
- Built-in safety: Resistant to overcharge, over-discharge, and short circuits when used with a proper Battery Management System (BMS).
- Compact design: Optimized dimensions for easy integration into various energy storage setups.
- Solar energy storage systems
- Backup power supplies
- Electric vehicles (low-speed)
- Off-grid power systems
- Industrial energy storage
Ideal as a lithium solar battery for sustainable energy storage solutions.
- Do not short-circuit the positive and negative terminals, as it may cause overheating or fire.
- Avoid overcharging (voltage >3.65V) or over-discharging (voltage <2.00V), which can damage the battery permanently.
- Do not reverse charge or expose to mechanical shock, collision, or pressure.
- Use a qualified Battery Management System (BMS) to monitor voltage, current, and temperature.
- Prohibit mixing with batteries of different part numbers or specifications.
- Do not charge at temperatures below 0℃ or above 60℃; avoid discharging beyond -20℃ or 60℃.
- Short-term storage (1 month): Temperature -30℃~45℃, SOC 25%~40%, humidity ≤85%RH (no condensation).
- Long-term storage (6 months): Temperature -30℃~35℃, SOC 25%~40%.
- For storage over 30 days, perform a full charge-discharge every 3 months and adjust SOC to 25%~40%.
- If stored for over 6 months without maintenance, capacity loss or cell defects may occur.
- The battery must be used in accordance with this specification. Improper use may result in performance degradation or safety risks, and no liability will be assumed for such cases.
- Specifications and performance parameters are subject to change without prior notice. Users should confirm the latest details before use.
- This document is for reference only; the actual performance depends on usage conditions.
