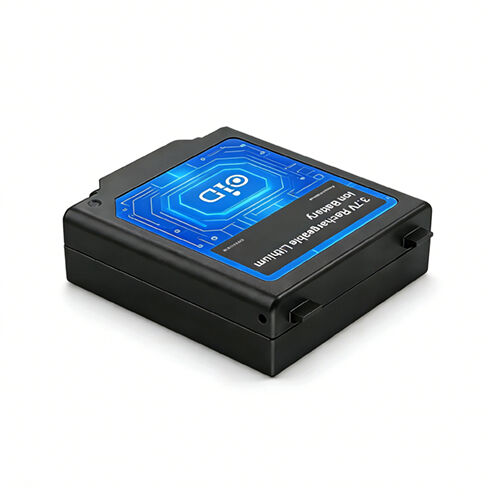

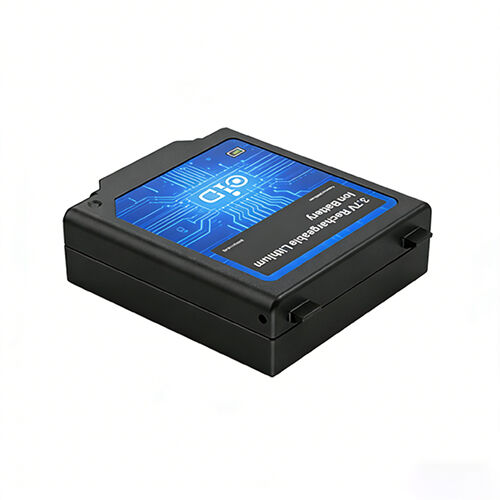

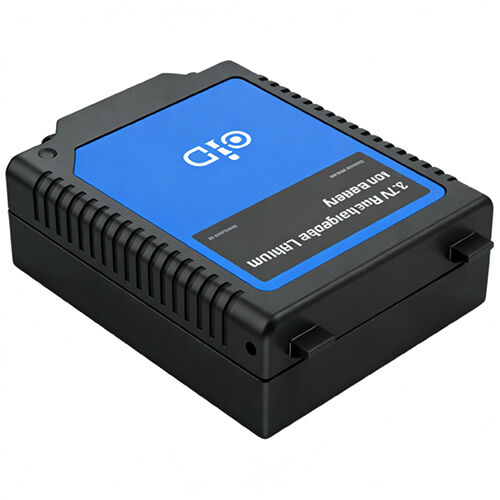

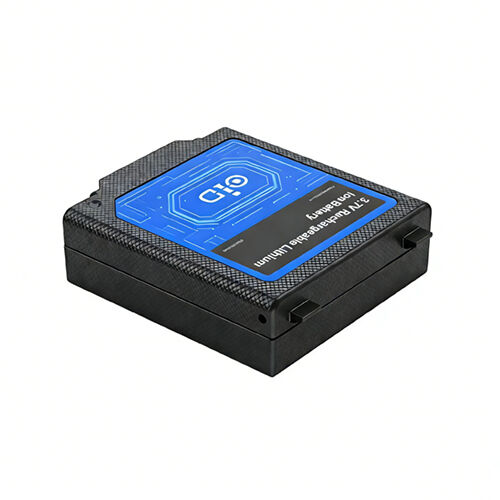

ATEX Intrinsically Safe Battery NCR103443 Hazardous Area Power Solution
Powering electronic devices in hazardous areas requires more than performance—it requires controlled energy, fault tolerance, and intrinsic safety by design.
The NCR103443 intrinsically safe lithium battery is engineered as a hazardous area battery solution, supporting portable instruments and handheld terminals operating in explosive atmospheres.
This product follows ATEX and IECEx intrinsic safety design principles, making it suitable for integration into certified hazardous area equipment.
What Is an Intrinsically Safe ATEX Battery?
An intrinsically safe battery is designed to ensure that, even under fault conditions, the electrical and thermal energy released is insufficient to ignite flammable gases or dust.
This hazardous area battery is engineered to:
- Strictly limit voltage, current, and stored energy
- Control surface temperature and fault energy release
- Support compliance with IEC 60079-11 intrinsic safety concepts at system level
As a result, it serves as a reliable battery for hazardous area equipment, rather than a conventional high-energy lithium cell.
Key Advantages of This Hazardous Area Battery
Intrinsic Safety-Driven Electrical Design
- Controlled charge and discharge currents
- Multi-layer protection: short circuit, overcharge, over-discharge, overcurrent
- Energy limitation aligned with intrinsic safety methodology
Engineered for Hazardous Area Applications
- Stable voltage platform under continuous industrial loads
- Low finished internal resistance (≤180mΩ) to reduce heat generation
- Suitable for long-term operation in regulated environments
Compact Power for Portable Instruments
- Optimized size and weight for handheld terminals
- Ideal for intrinsically safe instruments where space is limited
Compliance-Oriented Design Philosophy
This intrinsically safe battery is engineered for compliance with hazardous area standards, including:
- Intrinsic safety concepts defined in IEC 60079-11
- Designed for integration into equipment targeting Zone 1 / Zone 2 (gas) and Zone 21 / Zone 22 (dust), subject to system certification
- Supports ATEX / IECEx certification at device level
Certification is achieved at the complete equipment level. We support customers during battery selection, protection design, and compliance evaluation.
Consult Our Engineers for Hazardous Area Compliance Support
Typical Applications in Hazardous Areas
Handheld Terminals for Oil & Gas Sites
Providing safe and reliable power for communication and data logging devices used in Zone 1 hazardous areas, where flammable gases may be present.
Portable Industrial Instruments
Supporting intrinsically safe meters, detectors, and analyzers operating in chemically aggressive or explosive atmospheres.
Inspection & Monitoring Equipment
Used in maintenance and inspection tools requiring controlled energy sources in regulated industrial zones.
Safety-Critical Technical Specifications
The following parameters are not only performance metrics—they are intrinsic safety design controls that help prevent overheating, sparking, and ignition in explosive atmospheres.
| Parameter |
Specification |
| Cell Model |
NCR103443 |
| Nominal Voltage |
3.6V |
| Nominal Capacity |
2000mAh |
| Charge Voltage |
4.2V |
| Max Charge Current |
≤2.5A |
| Continuous Discharge Current |
2.8A |
| Peak Discharge Current |
5.0A |
| Discharge Cut-off Voltage |
3.0V |
| Finished Internal Resistance |
≤180mΩ |
| Operating Temperature (Charge) |
0 ~ 45°C |
| Operating Temperature (Discharge) |
-20 ~ 55°C |
| Storage Temperature |
0 ~ 25°C |
| Battery Weight |
50g |
| Dimensions |
14.95 * 44.15 * 50.15 mm |
| Protection Functions |
Short circuit, overcharge, over-discharge, overcurrent |
More Than a Battery—A Hazardous Area Power Solution
We do not position this product as a standalone lithium cell. It is part of a hazardous area power solution, supporting:
- Battery configuration optimization
- Protection circuit and current limitation design
- Thermal risk assessment
- Certification-oriented engineering support
This approach helps customers reduce compliance risk and shorten time-to-market for ATEX and IECEx projects.
Request a Hazardous Area Battery Solution Consultation
Resources for Hazardous Area Power Design
To support your engineering and compliance process, we provide:
- Intrinsically Safe Battery Design Guidelines
- ATEX vs IECEx Certification Overview
- Battery Selection for Explosion-Proof Equipment
Explore our Hazardous Area Power Resource Center to learn more.
