Jianheng OID71174207F314AH 3.2V 314Ah Prismatic LiFePO4 Battery Cell
The Jianheng OID71174207F314AH is a high-capacity rechargeable lithium iron phosphate (LiFePO4) battery cell designed for demanding energy storage and electric vehicle applications. With a nominal capacity of 314Ah and a nominal voltage of 3.2V, this prismatic cell delivers exceptional cycle life and thermal stability.
- Nominal Capacity: 314Ah (0.5C, 25°C)
- Nominal Voltage: 3.2V
- Max Continuous Charge Current: 1.0C
- Max Continuous Discharge Current: 1.0C (0°C < T ≤ 60°C)
- Low Temperature Discharge Capability: -30°C to 60°C
- Charge Temperature Range: 0°C to 60°C
- Cycle Life: 8000 cycles @ 70% capacity retention (25°C, 0.5C)
- Internal Impedance (1KHz): ≤ 0.25mΩ
- Weight: 5.65 ± 0.15 kg
- Dimensions (Thickness/Width/Height): 71.8±0.5mm / 174.2±0.8mm / 207.1±0.8mm
- Aluminum shell with positive polarity – requires insulation protection
| Parameter | Specification |
|---|---|
| Standard Charge Current | 0.5C (157A) |
| Standard Charge Voltage | 3.65V |
| Standard Charge Mode | CC/CV (0.5C to 3.65V, cut-off 0.05C) |
| Max Continuous Charge Current | 1.0C (314A) |
| Standard Discharge Current | 0.5C |
| Max Continuous Discharge Current | 1.0C (0°C < T ≤ 60°C) |
| Discharge Cut-off Voltage (>0°C) | 2.50V |
| Discharge Cut-off Voltage (≤0°C) | 2.00V |
| Absolute Charge Temperature | 0°C ~ 60°C |
| Absolute Discharge Temperature | -30°C ~ 60°C |
| Storage Temperature (1 month) | -30°C ~ 45°C |
| Storage Temperature (6 months) | -20°C ~ 35°C |
| Self-discharge Rate | ≤ 3.5% / month (25°C, 40% SOC) |
| Capacity at 45°C (0.5P) | ≥ 984Wh |
| Capacity at 5°C (0.5P) | ≥ 804Wh |
| Preload Force (new cell) | 500N ~ 5000N (recommended tolerance ±200N) |
| Swelling Force at 80% SOH | ~30000N (15mm steel plate test) |
- Electric Vehicles (EVs)
- Hybrid Electric Vehicles (HEVs)
- Energy Storage Systems (ESS)
- Solar and Wind Power Storage
- UPS Backup Systems
- Industrial Equipment

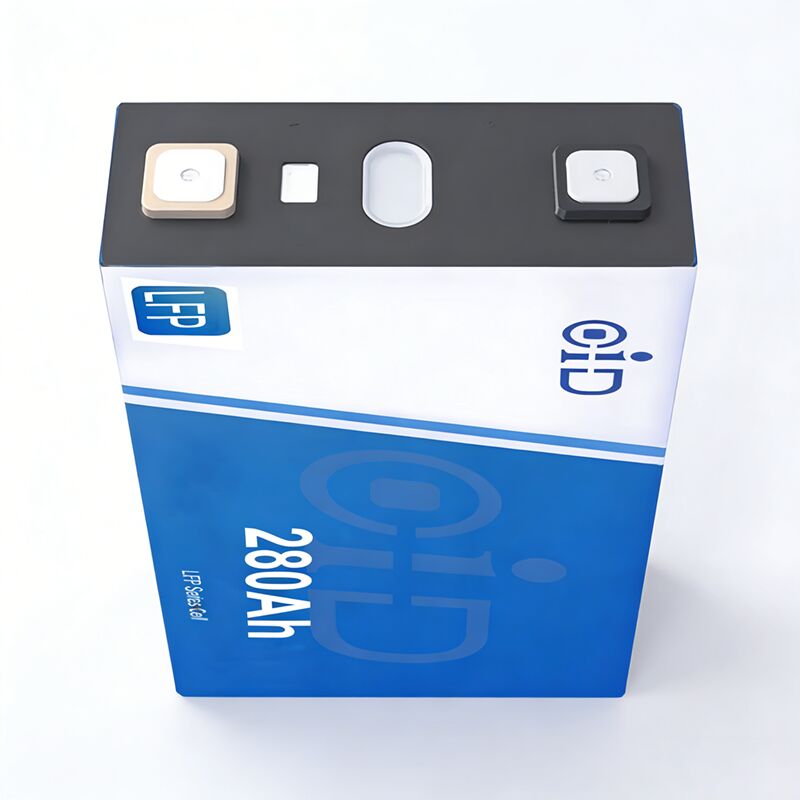

The battery must be used with a Battery Management System (BMS) that provides overcharge protection (3.65V cut-off), over-discharge protection (2.50V / 2.00V depending on temperature), short circuit protection, over-current protection, and charge timeout (8 hours). The aluminum shell is positively charged – avoid any short circuit. Welding on the terminal is allowed only in the area φ4mm~φ14mm centered on the positioning hole, depth < 2.5mm, without melting the PPS plastic.
If storage exceeds 7 days, initial SOC must be ≥5%. For storage >30 days, perform a full charge/discharge cycle every 3 months and store at 25%-40% SOC. Failure to comply may void warranty.
MOQ: 1 piece
Brand: OID (by Shenzhen Jianheng Technology Co Ltd)
Manufacturer: Shenzhen Jianheng Technology Co Ltd
Contact: +86 137 2555 9416 | alan@liion-batt.com
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
