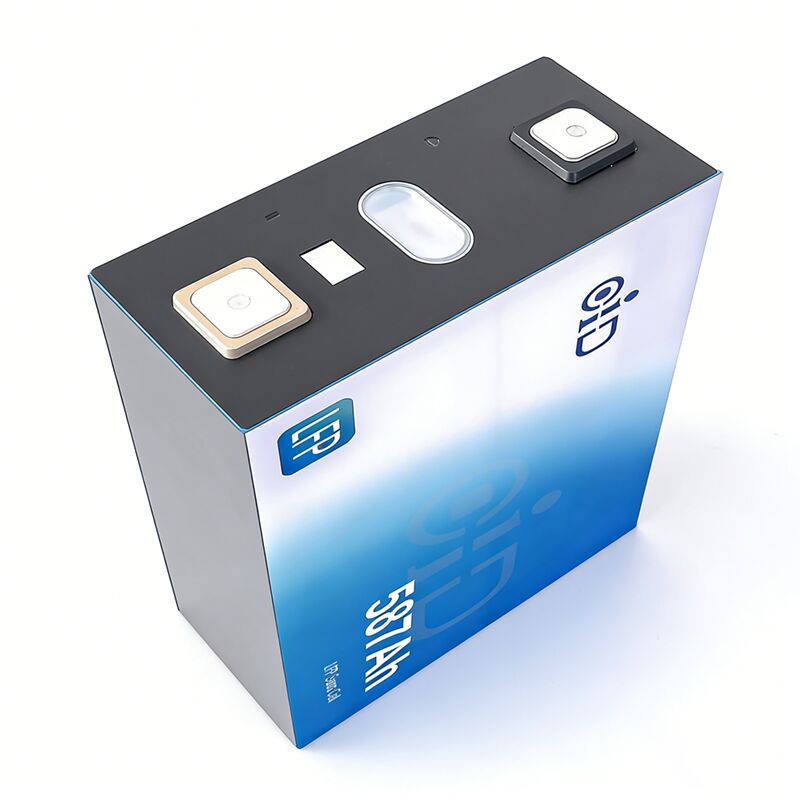

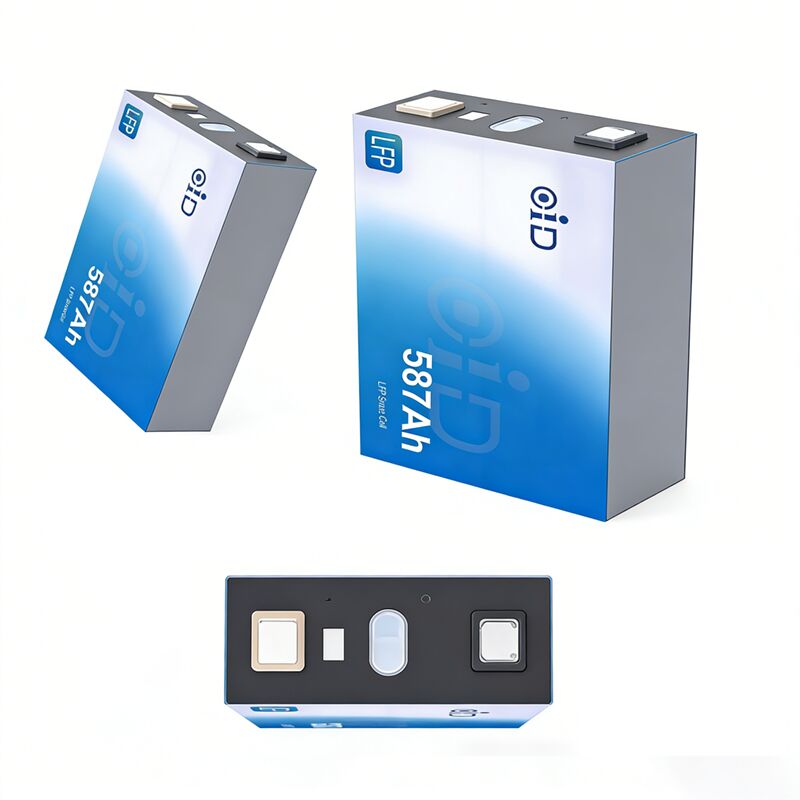

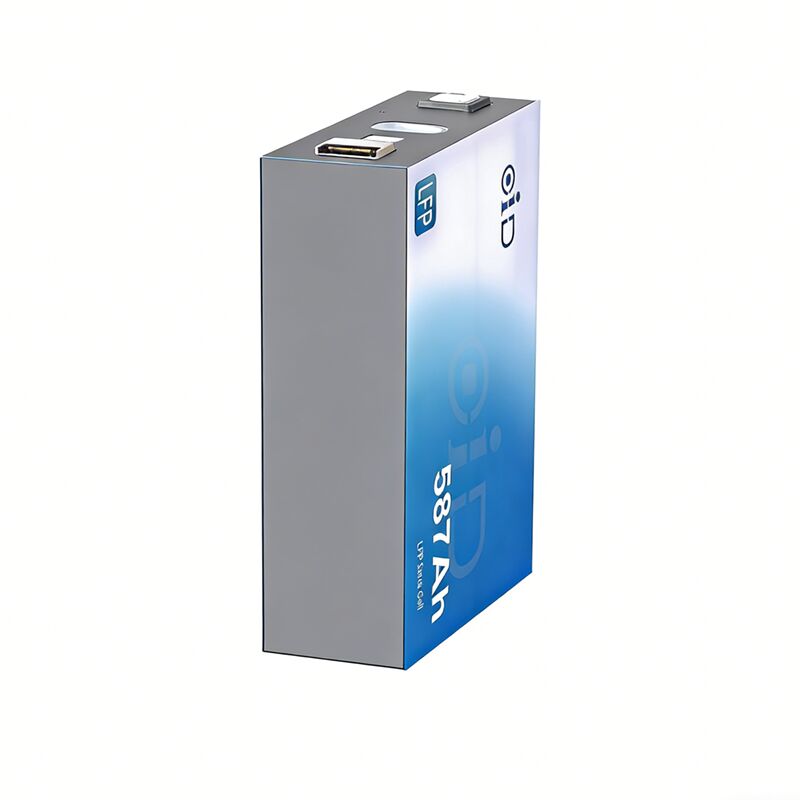

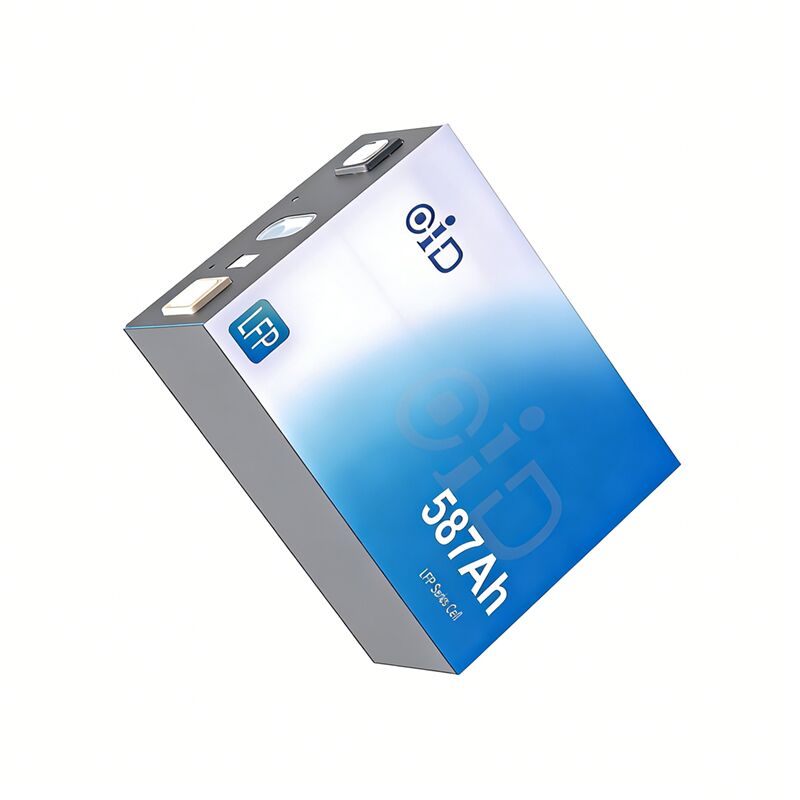

OID 3.2V 587Ah LiFePO4 Battery Cell with 8000 Cycles and 0.5C Discharge for Solar ESS

OID 3.2V 587Ah LiFePO4 Battery Cell with 8000 Cycles and 0.5C Discharge for Solar ESS

Products - LiFePo4 Battery
  • Battery Chemistry
    Lithium Iron Phosphate (LiFePO4 / LFP)
  • Cycle Life
    8000 Cycles @ 25°C, 100% DOD, 0.25C
  • Max Continuous Discharge Current
    0.5C (293.5A)
  • Charge Cut-off Voltage
    3.65V
  • Discharge Cut-off Voltage
    2.5V (>0°C) / 2.0V (≤0°C)
  • Internal Impedance (1kHz AC)
    ≤0.25 MΩ
  • Operating Temperature Range
    Charge: 0~60°C; Discharge: -30~60°C
  • Cell Weight
    9.6±0.2 Kg
  • Place of Origin
    Shenzhen, China
  • Brand Name
    OID
  • Certification
    UN38.3, RoHS compliant (contact for specific certifications)
  • Model Number
    OID73274213F587AH
  • Minimum Order Quantity
    1pcs
  • Price
    Contact for price (OEM/ODM quotes available)
  • Packaging Details
    Standard export carton with foam insert; palletized for sea freight
  • Delivery Time
    15-25 working days after order confirmation
  • Payment Terms
    L/C,D/A,D/P,T/T,Western Union
  • Supply Ability
    5000 units per month (subject to production schedule)

OID 3.2V 587Ah LiFePO4 Battery Cell with 8000 Cycles and 0.5C Discharge for Solar ESS

  • OID 3.2V 587Ah LiFePO4 Battery Cell with 8000 Cycles and 0.5C Discharge for Solar ESS
  • OID 3.2V 587Ah LiFePO4 Battery Cell with 8000 Cycles and 0.5C Discharge for Solar ESS
  • OID 3.2V 587Ah LiFePO4 Battery Cell with 8000 Cycles and 0.5C Discharge for Solar ESS
  • OID 3.2V 587Ah LiFePO4 Battery Cell with 8000 Cycles and 0.5C Discharge for Solar ESS
Get Price Contact Now
OID 587Ah LiFePO4 Battery – Reliable Energy for Large-Scale Storage

The OID 73274213F587AH from Shenzhen Jianheng Technology is a high-capacity 3.2V 587Ah prismatic LiFePO4 cell designed for demanding energy storage systems and electric vehicle applications. With exceptional cycle life and robust safety features, this cell delivers consistent performance under diverse conditions.

Key Features
  • Long Cycle Life: 8000 cycles @ 0.25C, 100% DOD to 410.9Ah remaining capacity
  • High Current Capability: 0.5C max continuous charge and discharge (293.5A)
  • Wide Temperature Range: Charge: 0°C to 60°C, Discharge: -30°C to 60°C
  • Low Self-Discharge: ≤3.5% per month at 40% SOC
  • Robust Mechanical Design: Aluminum case with positive polarity, preload recommendation 500N-5000N
  • Safety Compliance: Requires BMS with over-voltage, under-voltage, over-current, short circuit, and thermal protection
Technical Specifications
Parameter Value
Nominal Capacity 587.0Ah (0.25C, 25±2°C)
Nominal Voltage 3.2V
Standard Charge Current 0.25C (146.75A)
Max Continuous Charge Current 0.5C (293.5A)
Standard Discharge Current 0.25C (146.75A)
Max Continuous Discharge Current 0.5C (293.5A)
Charge Cut-off Voltage 3.65V
Discharge Cut-off Voltage 2.50V (>0°C) / 2.00V (≤0°C)
Internal Impedance (1kHz) ≤0.25mΩ
Weight 9.6±0.2 kg
Dimensions (ThxWxH) 73.13±0.5mm x 274.5±0.8mm x 213.5±0.8mm
Cycle Life 8000 cycles @410.9Ah remaining
Operating Temperature (Charge) 0°C ~ 60°C
Operating Temperature (Discharge) -30°C ~ 60°C
Storage Temperature (6 months) -20°C ~ 35°C

Note: Always use with a proper Battery Management System (BMS). Preload force required for safety and cycle life testing: 500N-5000N (recommended tolerance ±200N). Contact Jianheng for custom packs or BMS integration support.
