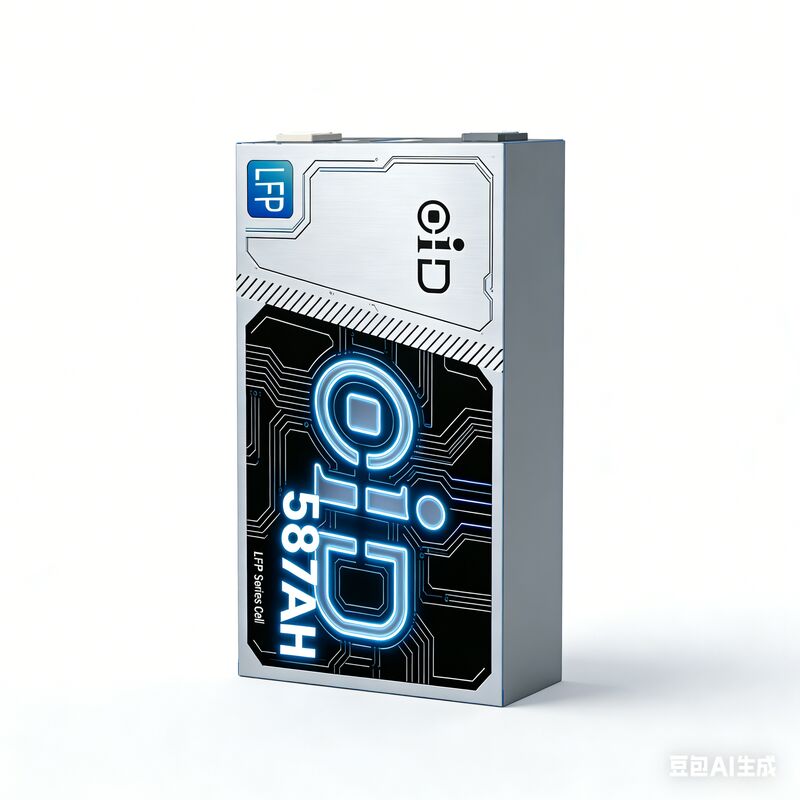

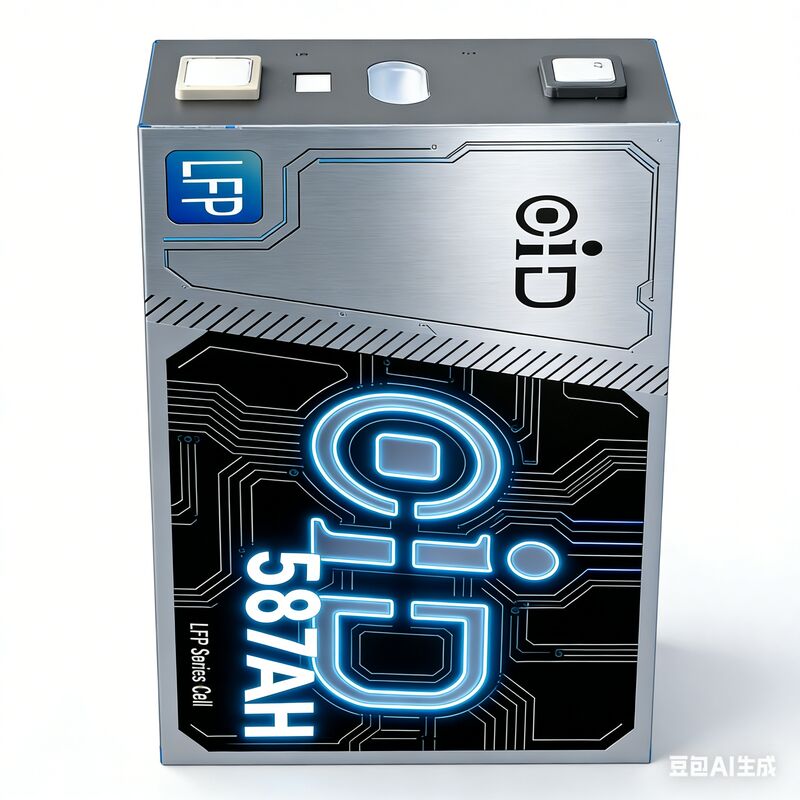

OID 587Ah LiFePo4 Battery with 8000 Cycles and 0.5C Continuous Discharge for Energy Storage Systems

Overview

The OID 587Ah LiFePo4 Battery (Model: OID73274213F587AH) is a high-capacity 3.2V prismatic rechargeable cell manufactured by Shenzhen Jianheng Technology Co Ltd. Built with premium lithium iron phosphate (LFP) chemistry, this battery delivers exceptional cycle life (8000 cycles at 80% DoD), high thermal stability, and reliable performance for demanding energy storage applications. Grade A cells with ultra-low internal resistance (≤0.25mΩ) and consistent capacity output.

Key Specifications

• Nominal Voltage: 3.2V
• Nominal Capacity: 587.0Ah (0.25C, 25±2°C)
• Max Continuous Charge Current: 0.5C (293.5A)
• Max Continuous Discharge Current: 0.5C (293.5A)
• Internal Impedance (1KHz AC): ≤0.25mΩ (fresh state)
• Cycle Life: ≥8000 cycles @ 410.9Ah (70% SOH retention)
• Operating Temperature: Charge: 0~60°C, Discharge: -30~60°C
• Weight: 9.6±0.2kg
• Dimensions (T*W*H): 73.13±0.5mm * 274.5±0.8mm * 213.5±0.8mm

Detailed Performance Parameters

Applications

• Renewable Energy Storage (Solar/Wind)
• Commercial & Industrial Battery Energy Storage Systems (BESS)
• Electric Vehicles (EVs) and Heavy-Duty Commercial EVs
• Telecom Backup Power
• Marine and RV Power Systems
• Grid Peak Shaving and Frequency Regulation

Safety & Certifications

The OID 587Ah LiFePo4 cell complies with international safety standards. Built-in safety features include explosion-proof valve, overcharge/over-discharge protection via BMS, and short-circuit protection. The aluminum shell is positively charged – proper insulation and BMS monitoring are required. All cells are 100% tested for capacity, impedance, and voltage matching.

Certifications: CE, RoHS, UN38.3 (compliant). Custom certifications available upon request.

Important Application Conditions

• Preload Requirement: 500N - 5000N (recommended tolerance ±200N) for safety and cycle life testing.
• BMS Mandatory: Must use with a Battery Management System (BMS) monitoring voltage, current, and temperature. Over-charge protection at 3.65V, over-discharge at 2.50V (or 2.00V below 0°C).
• Cell Gap Design: Reserve 0.5~1.5mm gap between cells for swelling management (swelling force up to 30000N at 80% SOH under 15mm steel plate).
• Storage Conditions: 25%-40% SOC recommended for long-term storage (>30 days); recharge every 3 months.
• Welding Restrictions: Welding area centered on positioning hole, Φ4mm~Φ14mm, depth <2.5mm; avoid melting PPS plastic on terminals.

Ordering & Support

Brand: OID
Manufacturer: Shenzhen Jianheng Technology Co Ltd
MOQ: 1 piece (samples available)
Delivery Time: 15-30 working days based on order quantity
Packaging: Standard export carton with foam protection or customized wooden case
Port: Shenzhen, China
Payment Methods: T/T, L/C, PayPal (for samples)

For technical datasheet, BMS integration guide, or bulk quotation, please contact:
Alan | Tel: 0086 137 2555 9416 | Email: alan@liion-batt.com
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
