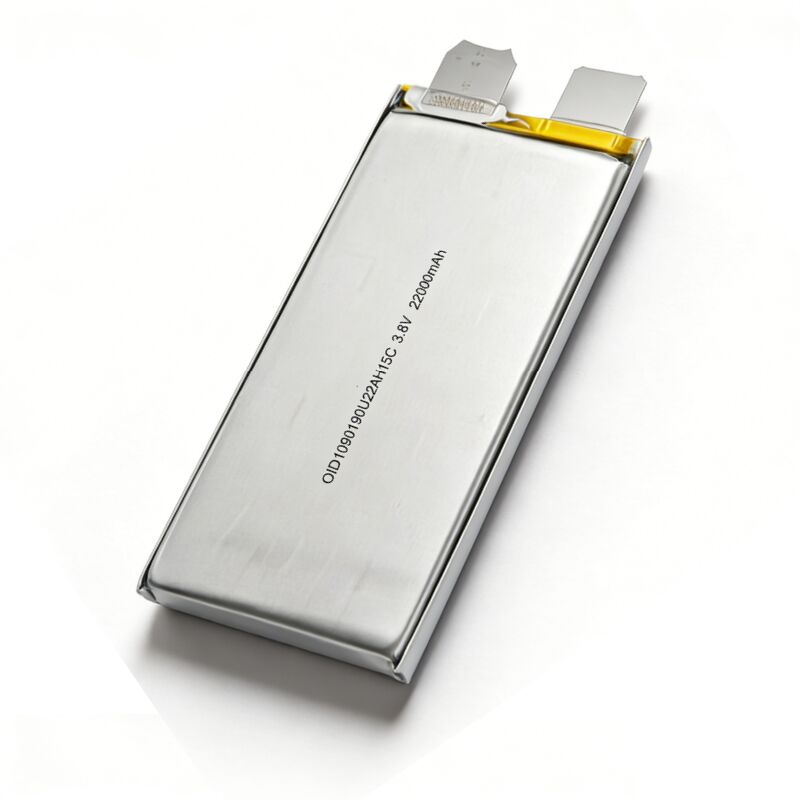

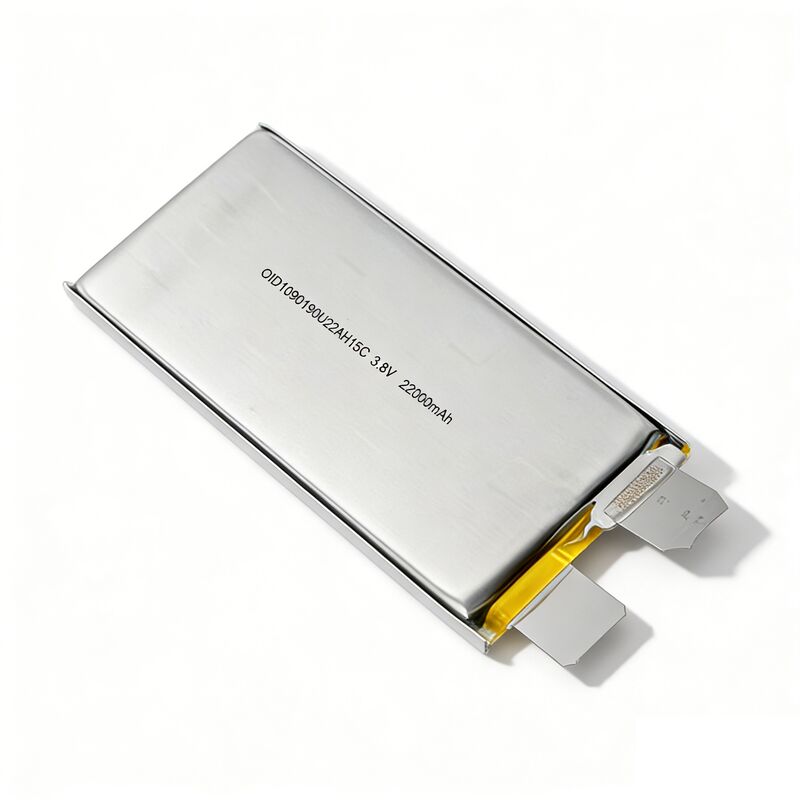

Engineered by Shenzhen Jianheng Technology Co., Ltd. (Brand: OID), this high-performance lithium polymer battery delivers exceptional power and reliability for professional drones and RC applications. With a massive 22000mAh capacity and a peak discharge rate of 15C, it ensures long flight times and burst power when needed.
| Parameter | Value |
|---|---|
| Brand | OID |
| Manufacturer | Shenzhen Jianheng Technology Co., Ltd. |
| Model Number | OID1090190-22000mAh-3.8V-15C |
| Nominal Capacity | 22000mAh (0.2C discharge) |
| Minimum Capacity | 21560mAh |
| Nominal Voltage | 3.8V |
| Full Charge Voltage | 4.35V |
| Cut-off Voltage | 3.0V |
| Standard Charge Current | 0.5C (11A) |
| Fast Charge Current | 1C (22A) |
| Super-Fast Charge Current | 2C (44A) |
| Standard Discharge Current | 0.5C (11A) |
| Continuous Rate Discharge | 10C (220A) |
| Pulse Discharge (≤5S) | 15C (330A) |
| Internal Impedance | ≤1.0mΩ |
| Weight | ~389g |
| Dimensions (H×W×L) | 10.5±0.3mm × 90±1.0mm × 193.0±2.0mm |
| Energy Density (Weight) | ≥210Wh/kg |
| Energy Density (Volume) | ≥450Wh/L |
| Operating Temperature (Charge) | 0°C to 45°C |
| Operating Temperature (Discharge) | -20°C to 60°C |
| Shipping Voltage | 3.75V – 3.8V |
Cell Chemistry: Lithium Polymer (LiPo) with high-voltage 4.35V platform for increased energy density.
Cycle Life: ≥800 cycles at 25°C (Charge: 5C to 4.35V, 1C cut-off; Discharge: 10C to 3.3V) retaining ≥80% of nominal capacity.
Temperature Performance:
Self-Discharge: ≤15% after one month storage at 25±2°C (retains ≥85% capacity).
High Temperature Storage (55°C for 4h): ≥98% capacity retention.
Certifications: UN38.3, MSDS (Compliant with international transport regulations).
Recommended Use: Professional drones (UAV), FPV racing drones, high-power RC models, robotics, and portable power packs requiring high discharge rates.
Safety Warnings: Do not short-circuit, over-discharge below 3.0V, or expose to temperatures above 80°C. Always use a dedicated LiPo charger with 4.35V CC/CV mode. Store at 30-60% charge in a cool, dry place (0°C~35°C, ≤75% RH).
Warranty: 1 year from factory delivery against material and workmanship defects (excluding misuse).
MOQ: 1 piece (samples available).
Price Range: Please contact sales for volume pricing.
Payment Methods: T/T, PayPal, Western Union.
Supply Ability: 10,000+ pieces per month.
Delivery Time: 5-15 working days (depends on quantity).
Packaging: Standard export carton with foam protection or customized blister tray.
Port: Shenzhen, China.
Origin: China.
