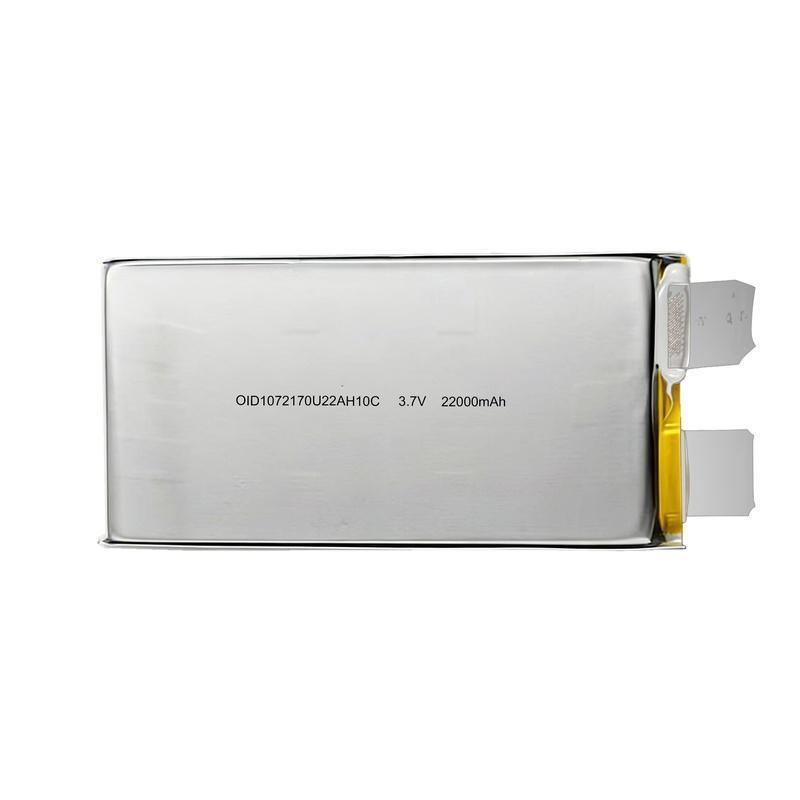

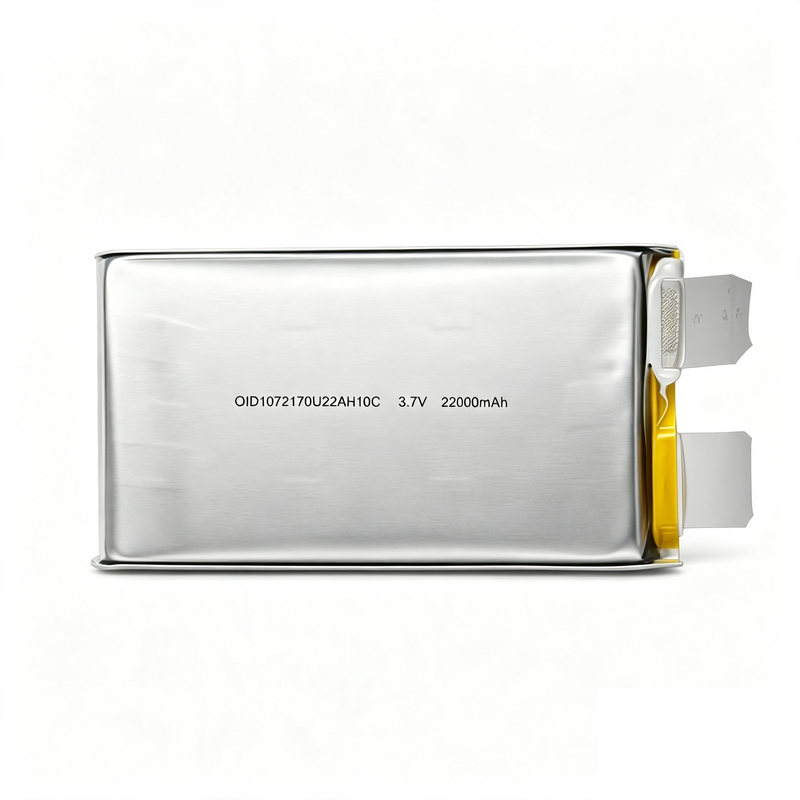

OID 1072170 22000mAh 10C Discharge Li-ion Polymer Battery with 500 Cycles Life
OID 1072170 22000mAh 3.7V 10C Li-ion Polymer Battery
The OID 1072170 is a rechargeable high-capacity lithium polymer battery designed for demanding applications. It delivers 22000mAh nominal capacity and supports a maximum continuous discharge current of 10C, making it suitable for high-power equipment and energy storage systems.
Key Features
- Nominal voltage: 3.7V
- Nominal capacity: 22000mAh
- Maximum continuous discharge rate: 10C
- High energy density and stable discharge platform
- Low internal resistance and long cycle life
- Optional protection circuit module and connector harness
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | OID1072170 |
| Cell Chemistry | LiNiCoMnO2 |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 22000mAh |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Maximum Continuous Discharge Current | 10C / 220A |
| Standard Charge Current | 0.5C / 11A |
| Cycle Life | 500 cycles at 100% DOD |
| Operating Temperature | Charge: 0C to 45C; Discharge: -20C to 60C |
Applications
- Power tools and garden equipment
- Electric model aircraft and drones
- Portable energy storage systems
- Backup power and UPS
- Medical equipment
- Robotics and industrial devices
Quality and Certification
The OID1072170 lithium battery is manufactured with strict quality control and meets international safety standards. Available certifications include CE, RoHS, UN38.3, IEC62133 and MSDS.
