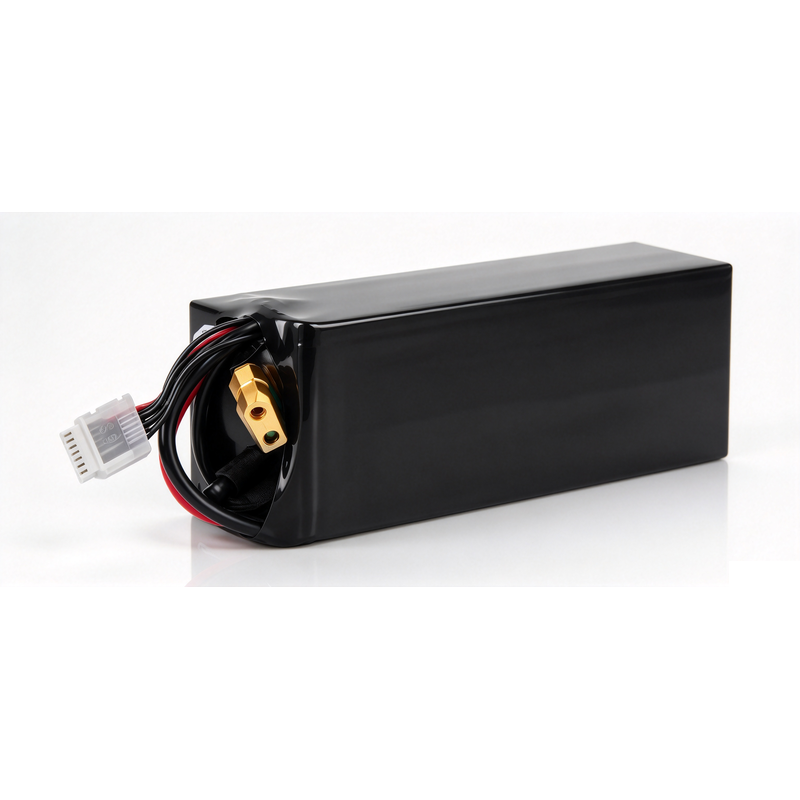

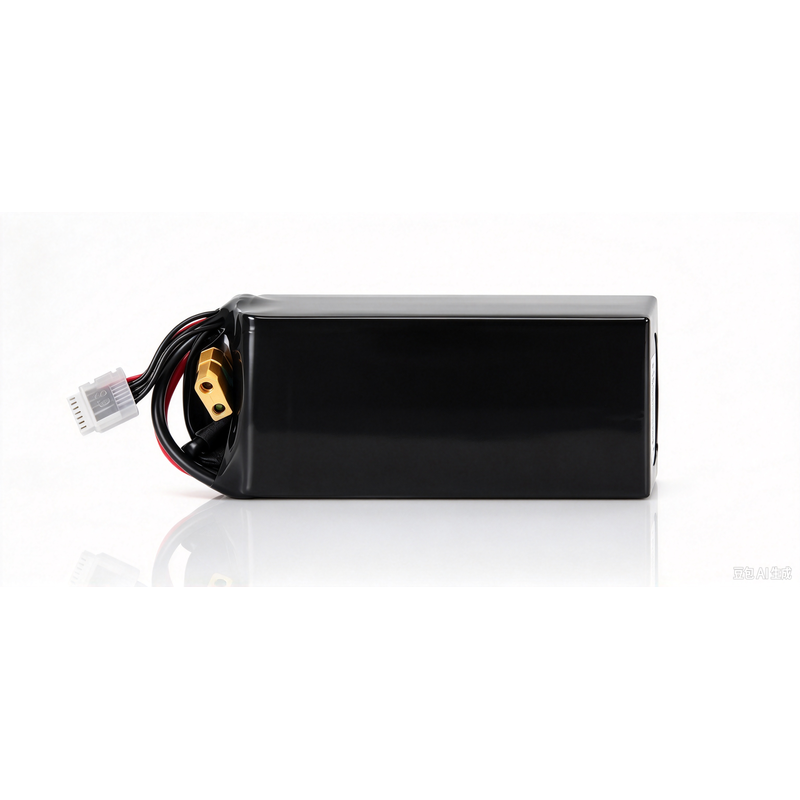

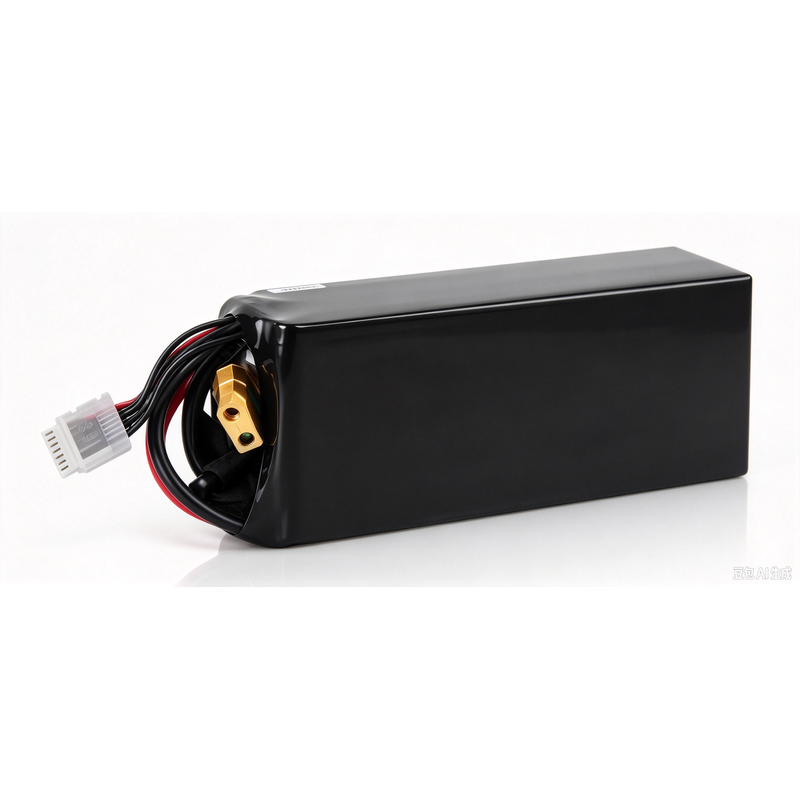

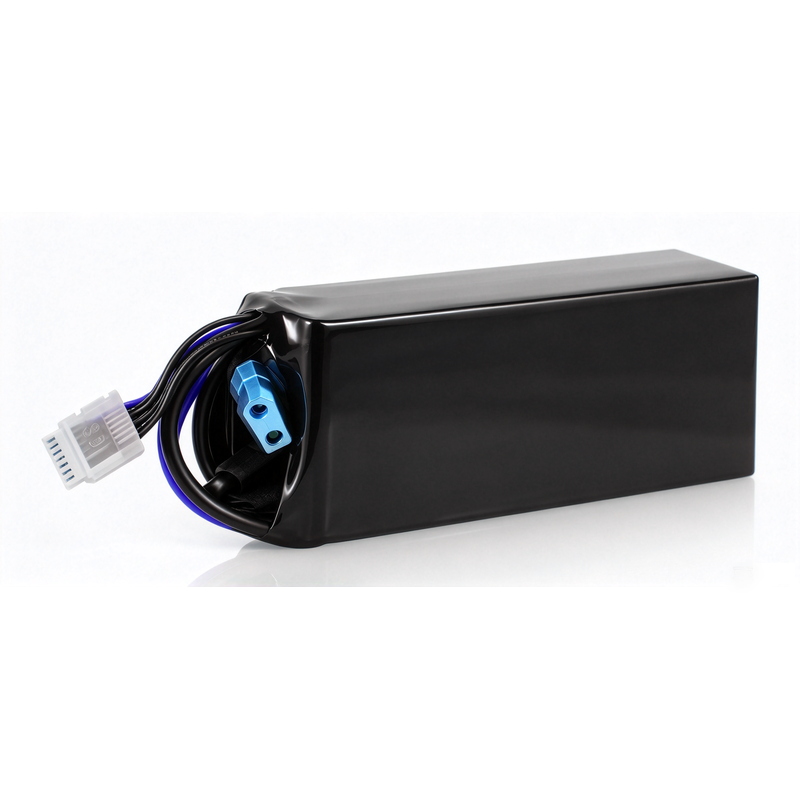

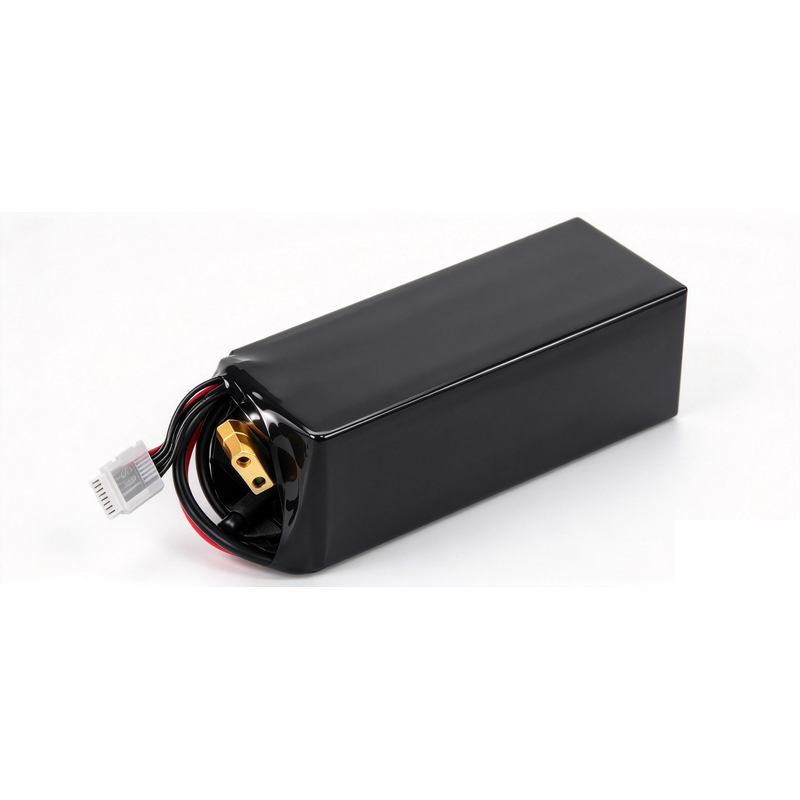

OID 16000mAh 22.2V 10C 6S LiPo Battery Pack for UAV Drone High Capacity Long Endurance XT90S/F

OID 16000mAh 22.2V 10C 6S Lithium-Ion Polymer Battery Pack for UAV and High-Power Platforms

Engineered by Jianheng for professional UAV and high-power electric platforms, the OID6875190-16000mAh-22.2V-10C-0112 delivers ultra-high capacity, long endurance and massive discharge current in a rugged 6S configuration. With a nominal 22.2V, 16.5Ah nominal capacity and a continuous 10C discharge rating, this pack keeps your drone in the air longer while delivering the burst power needed for aggressive maneuvers and heavy payloads.

Why Choose the OID 16000mAh 22.2V 10C Battery Pack

• Ultra-High Capacity and Long Endurance: 16.5Ah nominal and 16.0Ah minimum capacity provide extended flight times and maximum mission range for UAVs, drones and high-power electric platforms.
• Massive Discharge Current: 10.0C continuous and 25.0C / 3s instantaneous discharge current support high-power takeoff, rapid climbs and surge demand scenarios.
• Low Internal Resistance: ACIR at 1kHz is 10.0mOhm or less, with initial internal impedance of 8mOhm or less, reducing energy loss and heat generation under high-current operation.
• High and Stable Discharge Platform: 6S nominal 22.2V with an operating voltage range of 19.2V to 25.2V maintains stable power delivery throughout the discharge curve.
• Fast Charging and Wide Temperature Adaptability: Supports up to 2C continuous charge current and reliable discharge performance from low to high temperature environments.
• Robust Safety and Long Cycle Life: Passed external short circuit, over-discharge, saltwater immersion, low pressure and temperature cycling tests with no explosion, no fire and no leakage. Cycle life is 80% or more of initial capacity at 300 cycles.
• RoHS Compliant: All product parts comply with RoHS requirements for environmentally responsible operation.

Technical Specifications

Dimensions and Physical Characteristics

Safety and Performance Test Data

Applications

The OID 16000mAh 22.2V 10C 6S battery pack is specifically designed for UAV and drone applications, including industrial inspection drones, agricultural spraying drones, mapping and surveying UAVs, cargo delivery drones, and other high-power electric platforms requiring stable operation, low internal resistance and high discharge current capability.

Storage and Transportation

For prolonged storage longer than one month, adjust SOC to approximately 30%. After three months of 30% SOC storage, charge and discharge the battery once and adjust SOC back to around 30%. Storage at 30% SOC for more than 6 months without charge-discharge maintenance may cause irreversible capacity loss of about 4%. If 30% SOC storage exceeds 9 months without maintenance, Jianheng will not be responsible for quality protection due to capacity loss or other defects. Keep the battery in a dry, shady and cool environment when not in use. Never ship or store the battery together with metal. The battery should be packed to prevent injury, and conductive components contacting the two edges of the battery must be insulated.

Warranty

Jianheng provides quality protection for the product under normal use and storage conditions in accordance with this specification. The shipment voltage, capacity and internal impedance measuring test should be performed within one month after shipment from the factory. Products used or stored longer than 30 days by the client and/or its customer may exhibit inferior numeric parameters than the specified criteria. Jianheng shall make no liability for problems that occur when the above specifications are not followed.

Warnings

• Never throw the battery into water; keep it under dry, shady and cool circumstances when not in use.
• Never keep the battery beside high temperature sources such as fire or heating machines.
• Please use the stated charger when charging.
• Never reverse the positive and negative poles.
• Never connect the positive and negative of the battery with metal.
• Never ship or store the battery together with metal.
• Never knock, throw or trample the battery.
• Never cut through the battery with a nail or other edge tool.
• Do not use lithium-ion battery and other different lithium polymer battery models in mixture.
• Do not bend or fold the sealing edge.
• Do not open or deform the folding edge.
• Do not fall, hit or bend the battery body.
• Battery pack designing and packing must not injure the battery.
• Any components contacting the two edges of the battery must be insulated.
• Do not use or leave the battery at very high temperature conditions such as strong direct sunlight or a vehicle in extremely hot conditions.
• Never use the battery under strong static and strong magnetic field.
• If the battery leaks and electrolyte gets into eyes, do not knead; wash eyes with water and send to hospital immediately.
• If the battery emits peculiar smell, heating, distortion or appears any unconventionality during use, storage or charging, take it out from the device or charger and stop using.
• If the pole is dirty, clean it before using.
• Please encase the pole with insulating paper when you want to abandon the battery to prevent exploding and fire.

Contact Us for the Best Price

We welcome OEM and ODM orders. For special pricing, customization of wire length and connector model, and bulk order discounts, please contact Jianheng directly. Our team will provide a tailored solution for your UAV battery requirements.
