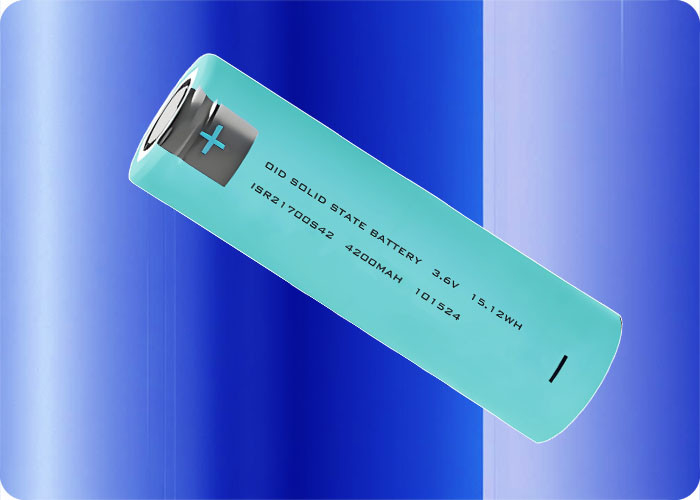

3.6V 4.2Ah 21700 Solid State Battery 10000 Cycles 5C Discharge

3.6V 4.2Ah 21700 Solid State Battery 10000 Cycles 5C Discharge

Products - Solid State Battery
  • Highlight

    5C 3.6 V 4.5 Ah Battery

    ,

    Solid State 21700 Rechargeable Battery

    ,

    21700 Rechargeable Battery 10000 Cycles

  • Name
    3.6 V 4.5 Ah Battery
  • ODM
    Free Custom Design
  • Battery Type
    4.2Ah Rechargeable
  • Extended Lifespan
    Endure 10, 000 Cycles
  • Higher Energy Density
    300Wh/kg
  • Ultra-Fast Charging
    1C Fast Charge Rate
  • Wider Temperature Tolerance
    Stable Performance In Extreme Conditions (from -30°C To 100°C)
  • Enhanced Safety
    Solid-state Liquid Electrolytes For Worry-free Usage.
  • Place of Origin
    China
  • Brand Name
    OiD
  • Certification
    Compliant with solid state battery standards (IEC 62133-2, UN38.3)
  • Model Number
    ISR21700S42
  • Minimum Order Quantity
    100pcs
  • Price
    $0.5 ~ $100.0 / pcs
  • Delivery Time
    3 ~ 7 days for storage
  • Payment Terms
    TT,L/C,Western Union

3.6V 4.2Ah 21700 Solid State Battery 10000 Cycles 5C Discharge

  • 3.6V 4.2Ah 21700 Solid State Battery 10000 Cycles 5C Discharge
  • 3.6V 4.2Ah 21700 Solid State Battery 10000 Cycles 5C Discharge
Get Price Contact Now

ISR21700S42 3.6V 4.2Ah 5C Discharge 10000 Cycles 21700 Solid State Battery

Product Name

21700 Solid State Cylindrical Cell (Model: ISR21700S42)



Advantages

  • High Energy Density (3.6V Platform)
  • Standard 21700 Form Factor (21mm × 70mm)
  • Optimized for High-Drain Applications

Specifications

Parameter

Specification

Nominal Capacity

4.2Ah

Nominal Voltage

3.6V

Cell Configuration

21700 (21mm × 70mm)

Typical Energy

15.12Wh

Weight

Approx. 68g

Max Continuous Discharge

5C (21A)

Peak Discharge (≤2sec)

10C (42A)

Standard Charge Rate

0.5C (2.1A)

Fast Charge Rate

1C (4.2A)



Cycle Life

Test Condition

Performance

0.5C Charge / 1C Discharge @25°C

≥10000 cycles



Operating Temperature Range

Operation

Temperature Range

Charging

0°C to 45°C

Discharging

-30°C to 100°C

Storage (≤1 year)

-20°C to 45°C



Certifications

Compliant with solid state battery standards (IEC 62133-2, UN38.3)



Key Features

  • Advanced solid state electrolyte technology
  • Stable voltage output under high-current discharge
  • Low internal resistance (<25mΩ)

Applications

  • High-performance power tools
  • Electric vehicle auxiliary systems
  • Professional photography equipment
  • Portable medical devices

3.6V 4.2Ah 21700 Solid State Battery 10000 Cycles 5C Discharge 0

Usage Warnings

  • Charge voltage must not exceed 4.2V
  • Do not discharge below 2.5V
  • Requires protection circuit for currents above 5C

Storage Guidelines

  • Ideal storage charge: 30-50% SOC
  • Recommended ambient storage: 10-25°C
  • Avoid high-humidity environments

Warranty

12-month manufacturer warranty
