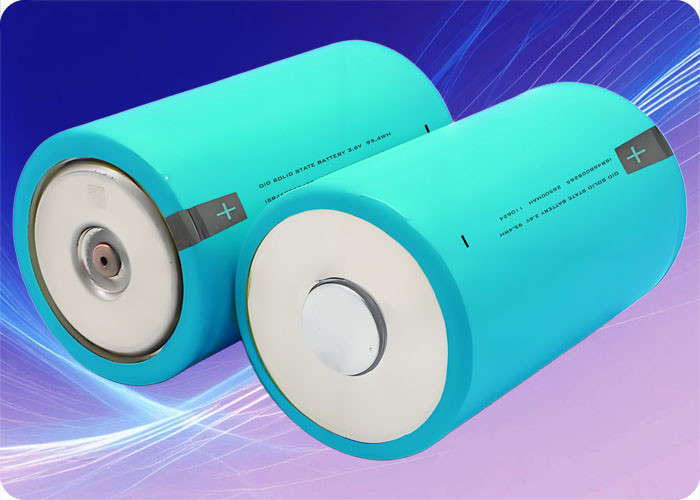

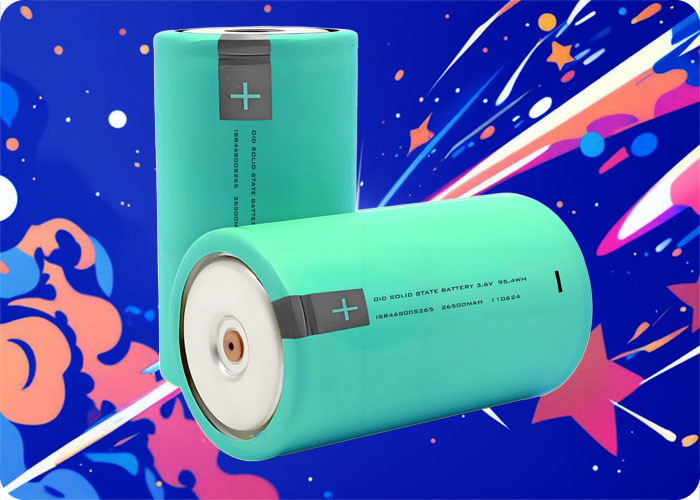

46800 Solid State Cylindrical Cell (Model: ISR46800S265)
Ultra-High Energy Density (3.6V Platform)
Next-Gen 46800 Form Factor (46mm × 80mm)
Optimized for High-Capacity Applications
| Parameter | Specification |
|---|---|
| Nominal Capacity | 26.5Ah |
| Nominal Voltage | 3.6V |
| Cell Configuration | 46800 (46mm × 80mm) |
| Typical Energy | 95.4Wh |
| Weight | Approx. 355g |
| Max Continuous Discharge | 3C (79.5A) |
| Peak Discharge (≤5sec) | 5C (132.5A) |
| Standard Charge Rate | 0.5C (13.25A) |
| Fast Charge Rate | 1C (26.5A) |
| Test Condition | Performance |
|---|---|
| 0.5C Charge / 1C Discharge @25°C | ≥10000 cycles |
| Operation | Temperature Range |
|---|---|
| Charging | 0°C to 45°C |
| Discharging | -30°C to 100°C |
| Storage (≤1 year) | -20°C to 45°C |
Compliant with solid state battery standards (IEC 62619, UN38.3)
Advanced solid state electrolyte technology
Ultra-stable thermal performance
Low impedance design (<15mΩ)
Electric vehicle power systems
Grid-scale energy storage
Industrial backup power
Marine propulsion systems
Charge voltage must not exceed 4.2V
Do not discharge below 2.5V
Requires advanced battery management system
Ideal storage charge: 30-50% SOC
Recommended ambient storage: 10-25°C
Store in dry, well-ventilated area
24-month limited warranty
