Home ProductsLithium Ion BatteryOiD513436N700 3.7V 700mAh 1C Discharge 500 Cycles Li-ion Battery

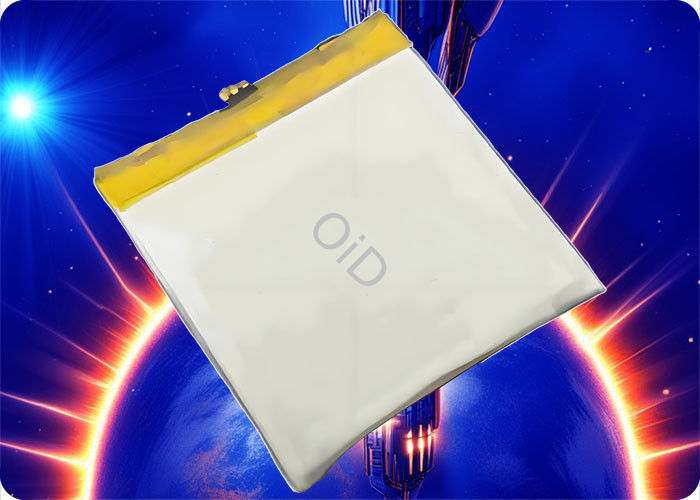

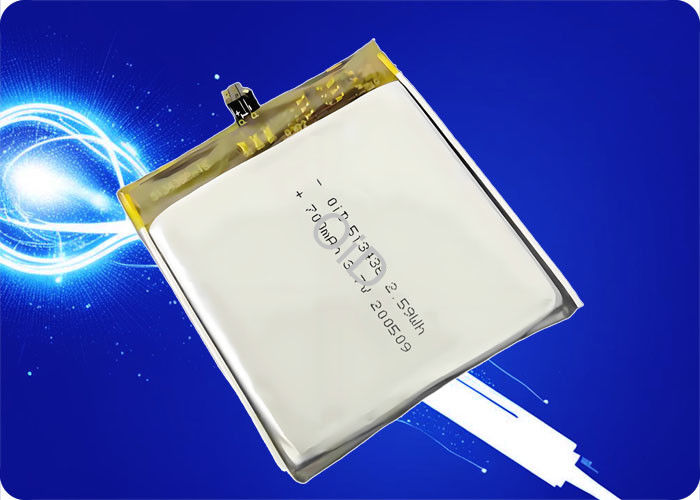

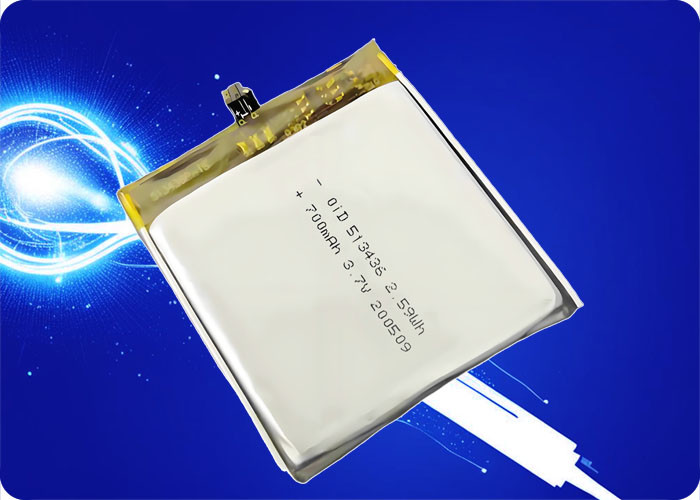

OiD513436N700 3.7V 700mAh 1C Discharge 500 Cycles Li-ion Battery
OiD513436N700 3.7V 700mAh 1C Discharge 500 Cycles Li-ion Battery OiD513436N700 3.7V 700mAh 1C Discharge 500 Cycles Li-ion Battery

OiD513436N700 3.7V 700mAh 1C Discharge 500 Cycles Li-ion Battery

Product Details:
Place of Origin: China
Brand Name: OiD
Certification: Compliant with Li-ion battery safety standards (IEC 62133-2:2017, UL1642)
Model Number: OiD513436N700
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $0.5 ~ $100.0 / pcs
Delivery Time: 3 ~ 7 days for storage
Payment Terms: TT, L/C, Western Union
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Lithium Ion Battery Battery Type: 3.7V, 700mAh Rechargeable
ODM: Free Custom Design For Packs Superior Cold Weather Performance: Reliable In Extreme Cold (-20°C To 60°C)
High Energy Density: 250-300Wh/kg Cycle Life: 500+ Cycles
Charging/ Discharging: 1C/ 1C Flexible Form Factor: Thin, Customizable Pouch Design Lithium Ion Battery
Highlight:

3.7v 2a lithium battery

,

3.7v lithium ion battery

,

1c 2a lithium battery

Product Description

Product Name

OiD513436N700 Rechargeable Li-ion Polymer Battery


Advantages

  • High Energy Density (2.59Wh)
  • Compact Prismatic Design
  • Robust Safety Features

Specifications

Parameter

Specification

Nominal Capacity

700mAh

Nominal Voltage

3.7V

Rated Energy

2.59Wh

Dimensions (L×W×H)

40.0mm × 34.0mm × 5.1mm

Standard Charge Current

140mA (0.2C)

Max Charge Current

700mA (1C)

Standard Discharge Current

140mA (0.2C)

Max Discharge Current

700mA (1C)

Charge Voltage Limit

4.2V

Discharge Cut-off Voltage

3.0V


Cycle Life

Test Condition

Performance

0.5C Charge / 0.5C Discharge @25°C

≥500 cycles (80% capacity retention)


Discharge Curve

OiD513436N700 3.7V 700mAh 1C Discharge 500 Cycles Li-ion Battery 0


Operating Temperature Range

Operation

Temperature Range

Charging

0°C to 45°C

Discharging

-20°C to 60°C

Storage (≤1 month)

-10°C to 55°C

Long-Term Storage (≤12 months)

-10°C to 25°C


Certifications

Compliant with Li-ion battery safety standards (IEC 62133-2:2017, UL1642)


Key Features

  • Built-in protection circuit (overcharge/over-discharge/short-circuit)
  • Low self-discharge rate (<3% per month)
  • Vibration-resistant design (10-55Hz, 0.8mm amplitude)

Applicatio

  • Portable medical devices
  • IoT sensors
  • Consumer electronics

ns

  • Portable medical devices
  • IoT sensors
  • Consumer electronics

OiD513436N700 3.7V 700mAh 1C Discharge 500 Cycles Li-ion Battery 1

Usage Warnings & Precautions

  • Do not exceed 4.2V charging voltage
  • Avoid discharge below 3.0V
  • Do not expose to temperatures >60°C

Storage Guidelines

  • Store at 30-50% SOC
  • Recommended storage: 20±5°C
  • Recharge every 3 months for long-term storage

Warranty & Disclaimer

  • 12-month performance warranty
  • Not liable for misuse or improper storage
