Custom Semi-Solid Lithium Drone Battery Pack - 30000mAh High Capacity UAV Battery
Overview

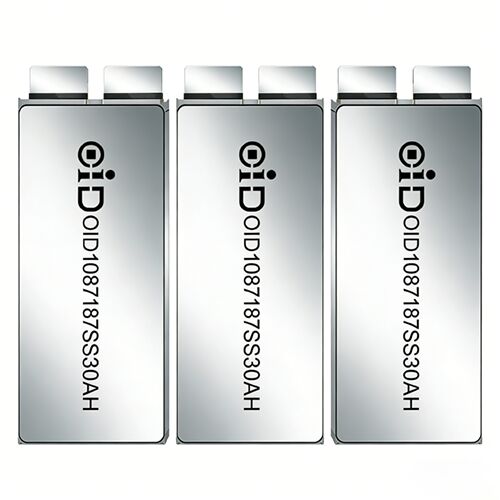

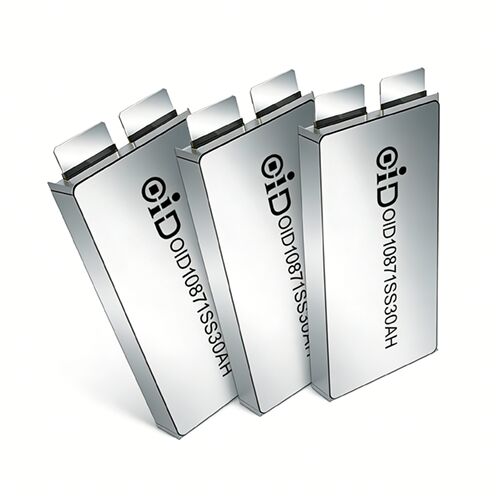

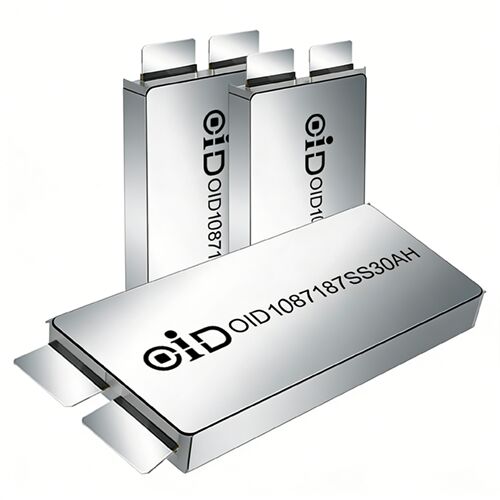

Introducing the OID1087187SS30AH, a high-performance semi-solid lithium-ion battery cell designed specifically for industrial drone applications. Manufactured by Shenzhen Jianheng Technology Co Ltd, this UAV battery pack delivers exceptional energy density, long cycle life, and reliable performance under extreme conditions. Whether you need a custom drone battery pack for heavy-lift drones or a long endurance drone battery for extended flight missions, this cell meets the highest standards of safety and efficiency.
Key Features
- High Energy Density: ≥275Wh/kg gravimetric, ≥630Wh/L volumetric
- Fast & Continuous Discharge: 5C continuous, 10C pulse (≤3s)
- Long Cycle Life: ≥800 cycles at 0.5C charge/discharge
- Wide Temperature Range: Charge: 0-45°C | Discharge: -20-60°C
- Low Internal Resistance: ≤0.8mΩ for high efficiency
- Customizable Design: Ideal for custom lithium battery for drone projects
Product Specifications
| Parameter |
Value |
| Nominal Capacity |
30000mAh @ 0.5C |
| Minimum Capacity |
29000mAh @ 0.5C |
| Nominal Voltage |
3.7V |
| Full Charge Voltage |
4.2V |
| Standard Charge |
0.5C CC/CV to 4.2V, ≤0.05C cut-off |
| Fast Charge |
1C CC/CV to 4.2V, ≤0.05C cut-off |
| Continuous Discharge |
5C (150A) |
| Pulse Discharge |
10C (≤3s) |
| Discharge Cut-off |
2.8V |
| AC Impedance |
≤0.8mΩ |
| Dimensions |
10.8*87.0*187.0 mm |
| Weight |
~406g |
| Shipment Voltage |
3.5V-3.6V |
Performance Data
Electrochemical Performance
- Discharge Rate: 98% capacity retention at 0.5C and 3C; 90% at 5C
- Temperature Performance:
- 40℃: ≥90% capacity
- 25℃: 100% capacity
- 0℃: ≥85% capacity
- -10℃: ≥70% capacity
- Cycle Life:
- 0.5C: ≥800 cycles (≥80% retention)
- 3C: ≥500 cycles
- 5C: ≥300 cycles
- Self-discharge: ≥85% capacity after 28 days storage
- High Temp Storage: ≥98% capacity retention after 4h @55℃
Mechanical Reliability
- Vibration Test: No leakage, fire, or explosion (10-55Hz, 1.6mm amplitude)
- Drop Test: No damage after 1.2m drop onto wood board
Safety & Compliance
This lithium drone battery pack complies with international standards including:
- GB/T 36276-2018
- IEC 62660-2:2016
- UL 1973
- UN 38.3
It is equipped with multiple safety protections and is manufactured under strict quality control.
Storage & Handling Instructions
- Storage Temp: 0-35℃
- Humidity: ≤75% RH
- Long-term Storage Voltage: 3.7-3.9V (40-50% SOC)
- Activation every 3 months: Charge/discharge cycle recommended
Never store above 3.9V for more than 7 days. Always use a compatible charger and avoid physical damage.
Why Choose Jianheng as Your Drone Battery Pack Supplier?
- 10+ years of experience in lithium battery manufacturing
- R&D and QC teams ensuring consistent quality
- OEM/ODM support for custom UAV battery packs
- Global shipping with UN38.3 certified packaging
Customization Available
We offer custom lithium battery for drone services including:
- Capacity customization
- Tab design and size adjustment
- Intelligent BMS integration
- Thermal management solutions
Whether you're developing a long endurance drone or a heavy-lift industrial UAV, we provide the perfect power solution.
