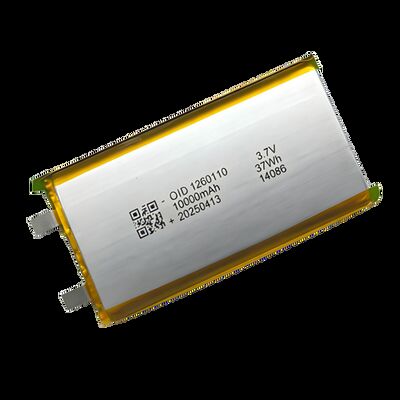

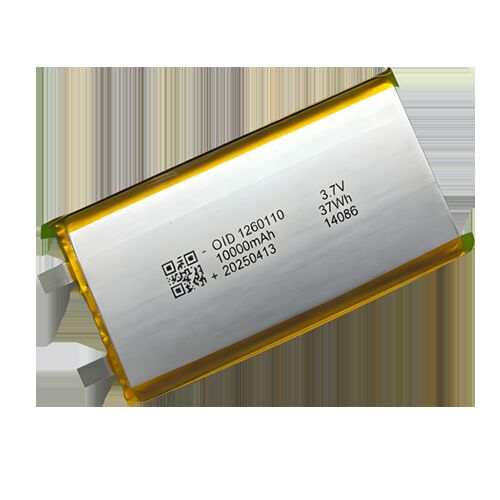

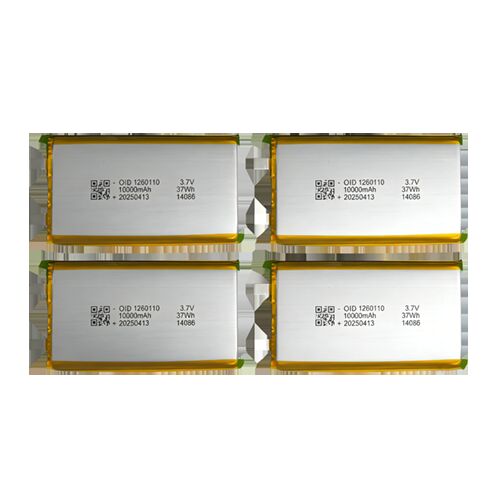

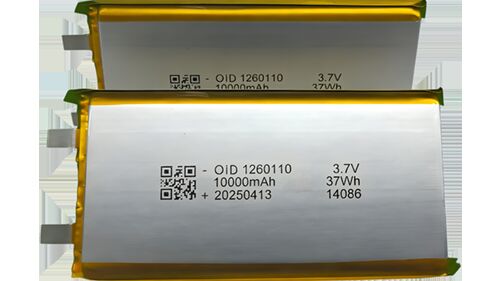

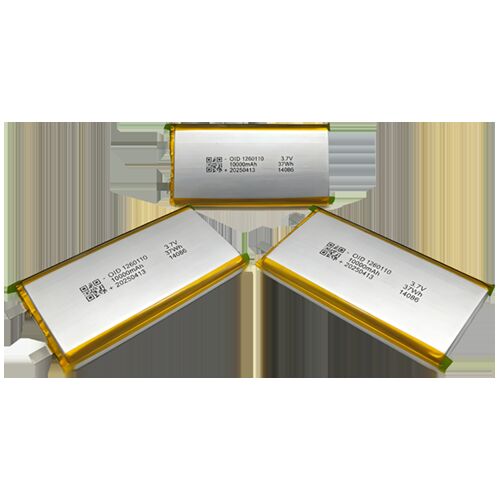

Semi-Solid 3.7V 10Ah Drone Battery Pack Cell
Model: OID1260110SS10AH | 3.7V 10000mAh | High-Safety Drone Battery Pack Core Cell
The OID1260110SS10AH is a high-capacity semi-solid lithium-ion cell engineered for demanding applications such as UAV drone battery packs and high-performance power banks. Designed for structural stability, long cycle life, and enhanced safety, this 10Ah cell supports continuous 1C charge and discharge, making it ideal for professional drone systems and portable energy storage devices.
Key Electrical Specifications
| Rated Capacity |
10000mAh |
| Nominal Voltage |
3.7V |
| Minimum Capacity |
≥10000mAh |
| AC Impedance |
≤60mΩ (1kHz LCR method) |
| Standard Charge Current |
0.2C (2000mA) |
| Standard Discharge Current |
0.2C (2000mA) |
| Max Continuous Charge |
1.0C (10000mA) |
| Max Continuous Discharge |
1.0C (10000mA) |
| Limited Charge Voltage |
4.20V |
| End of Discharge Voltage |
3.0V |
Test standard: 25±2℃, 45-85% RH
Mechanical Dimensions
- Thickness: ≤12.20mm (300gf pressure at 25±2℃)
- Width: ≤60.50mm
- Length: ≤110.50mm (excluding tabs)
Note: Slight thickness swelling may occur during high-temperature storage or operation
Performance Characteristics
Temperature Discharge Performance (0.2C)
| Temperature |
Capacity Retention |
| -10℃ |
≥50% |
| 25℃ |
100% |
| 60℃ |
≥95% |
Cycle Life
- 600 cycles @ 25±2℃
- Capacity retention ≥80%
- Thickness expansion ≤10%
Long-Term Storage
- 365 days @ 25℃ (50% SOC)
- Recovered capacity ≥85%
Shelf Performance
Normal Temp (25℃, 30 days)
- ≥85% discharge capacity
- ≥90% recovered capacity
High Temp (60℃, 7 days)
- ≥60% discharge capacity
- ≥80% recovered capacity
Standard Charging Method
Constant Current / Constant Voltage (CC/CV):
- Charge at 0.2C (2000mA) to 4.20V
- Switch to constant voltage
- Cut-off current ≤0.02C (40mA)
Safety Performance (Verified Tests)
This semi-solid lithium battery cell has passed the following safety tests:
- Short-Circuit Test (≤0.1Ω external resistance) - No fire / No explosion
- Heating Test (130℃, 30min) - No fire / No explosion
- Over-Charge Test (1C to 4.6V + CV 2.5h) - No fire / No explosion
- Nail Penetration Test (φ5mm needle) - No fire / No explosion
Designed for high-safety drone battery pack integration.
Mechanical Reliability
- Vibration Test (10-55Hz sweep, XYZ axes)
- 1m Drop Test (Concrete surface, 6 directions)
- No fire / No explosion / No smoking
Operating Temperature
Charge:
- 0~15℃ (≤0.2C, ≤4.1V)
- 15~50℃ (≤1.0C, ≤4.2V)
Discharge:
Storage Guidelines
- <1 month: -20~45℃
- <6 months: -20~35℃
- Recommended shipment state: 3.80-4.05V
- Long storage: Maintain 3.8-3.9V to prevent over-discharge (<2.75V)
Application Scenarios
- Drone Battery Pack (UAV battery system)
- High-capacity Power Bank
- Portable Energy Storage Modules
- Custom Lithium Battery Pack Integration
Handling & Safety Precautions
Strictly follow lithium-ion handling protocols:
- Do not short circuit terminals
- Do not immerse in water
- Do not disassemble or modify
- Do not expose to fire or extreme heat
- Use only approved charging systems
- Avoid mechanical damage
