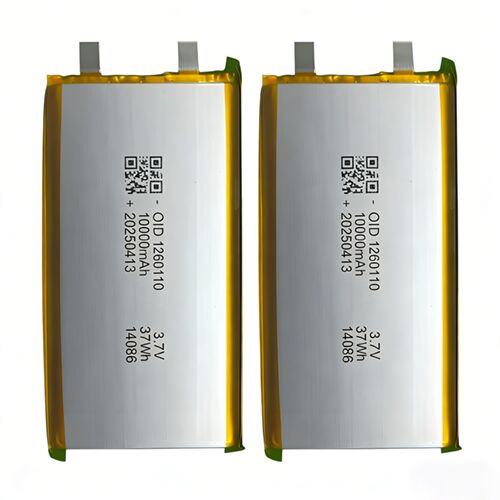

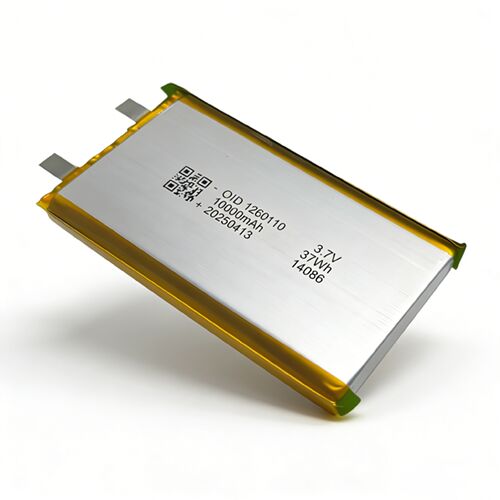

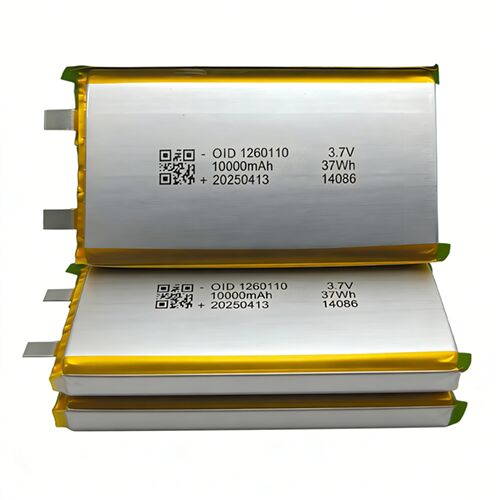

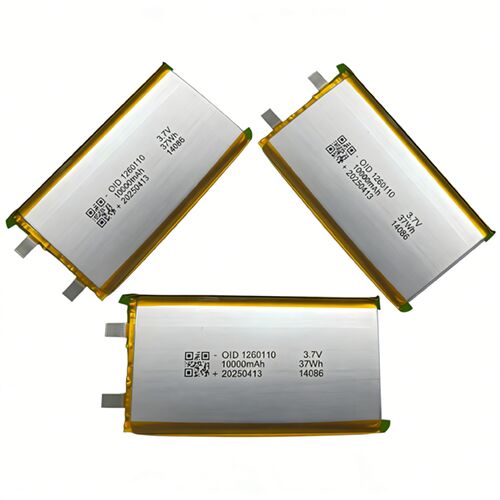

OID1260110SS10AH — Semi-Solid Li-Ion Pouch Cell for Drone Battery Packs
The OID1260110SS10AH is a semi-solid lithium-ion pouch cell engineered for drone battery packs, UAV power systems, and high-drain portable applications. Manufactured by Shenzhen Jianheng Technology Co., Ltd. under the OID brand, it delivers 10,000 mAh (10 Ah) minimum capacity at 3.7 V nominal voltage with continuous 1.0C charge and discharge capability. The semi-solid electrolyte design eliminates liquid-electrolyte leakage risk and significantly improves penetration safety. Every cell is UN38.3 transport-certified and MSDS-documented for international air and sea shipment compliance.
Key Features
- Semi-Solid Electrolyte Technology: eliminates liquid-electrolyte leakage risk; passes nail-penetration and overcharge abuse tests without fire or explosion.
- 10,000 mAh Minimum Capacity: verified at 0.2C discharge to 3.0 V cut-off at 25 degrees C; 85% or more capacity retained at 0.5C discharge.
- 1.0C Continuous Charge and Discharge: supports 10,000 mA max continuous charge and discharge for multi-rotor and fixed-wing UAVs.
- 600-Cycle Long Life: 80% or more initial capacity retention and 10% or less thickness expansion after 600 full cycles at 25 degrees C.
- Wide Discharge Temperature: operates from -10 degrees C to +80 degrees C; retains 95% or more capacity at 60 degrees C and 50% or more at -10 degrees C.
- Low AC Impedance: 60 mOhm or less at 1 kHz after standard charge, ensuring stable power delivery under load.
- UN38.3 and MSDS Certified: fully compliant for international dangerous goods transport by air and sea.
- OEM and ODM Available: tab dimensions, capacity, voltage, and multi-cell pack configurations customizable to order.
Electrical Specifications
| Parameter | Value |
|---|
| Model Number | OID1260110SS10AH (semi-solid Li-ion pouch cell) |
| Nominal Capacity | 10,000 mAh (10 Ah), measured at 0.2C discharge to 3.0 V at 25 °C |
| Minimum Capacity | 10,000 mAh or more after standard charge |
| Nominal Voltage | 3.7 V |
| Charge Cut-off Voltage | 4.20 V |
| Discharge Cut-off Voltage | 3.0 V |
| Open-Circuit Voltage (after charge) | 4.13 V or more within 24 hours |
| Shipment Voltage | 3.80 to 4.05 V (UN38.3 compliant SoC) |
| AC Impedance at 1 kHz | 60 mΩ or less after standard charge at 25 °C |
Charge and Discharge Specifications
| Parameter | Value |
|---|
| Standard Charge | 2,000 mA (0.2C), CC to 4.20 V then CV to 40 mA or less cut-off at 25 °C |
| Max Continuous Charge Current | 10,000 mA (1.0C) |
| Charge Temperature — Low Range | 0 to +15 °C at 0.2C or less; cut-off voltage 4.10 V or less |
| Charge Temperature — Normal Range | +15 to +50 °C at 1.0C or less; cut-off voltage 4.20 V or less |
| Standard Discharge | 2,000 mA (0.2C) to 3.0 V cut-off |
| Capacity at 0.5C | 85% of rated or more |
| Max Continuous Discharge | 10,000 mA (1.0C) |
| Discharge at +60 °C | 95% or more of rated capacity |
| Discharge at -10 °C | 50% or more of rated capacity |
Temperature and Storage
| Condition | Specification |
|---|
| Charge Temperature Range | 0 to +50 °C (rate-limited below 15 °C) |
| Discharge Temperature Range | -10 to +80 °C |
| Storage up to 1 month | -20 to +45 °C; maintain 3.80–3.90 V; humidity 75% RH or less |
| Storage up to 6 months | -20 to +35 °C; maintain 3.80–3.90 V; recharge every 3 months |
| Long-term storage (365 days at 25 °C) | 85% or more of rated capacity recovered; store at approx. 50% SoC |
| High-temperature storage (55 °C) | 60% or more retained; 80% or more recovered |
Physical Dimensions
| Dimension | Value |
|---|
| Cell Thickness (T) | 12.20 mm or less (measured at 300 gf pressure, 25 °C) |
| Cell Width (W) | 60.50 mm or less |
| Cell Length (L) | 110.50 mm or less (tabs excluded) |
| Tab Width | 6.00 ± 0.20 mm |
| Tab Length | 12.00 ± 1.00 mm (including tab seal section) |
| Tab Center Distance | 30.00 ± 2.00 mm |
Cycle Life
| Item | Specification |
|---|
| Test Condition | 0.2C CC-CV charge to 4.20 V; 0.2C discharge to 3.0 V at 25 ± 2 °C |
| Cycle Life | 600 or more full cycles |
| Capacity Retention after 600 Cycles | 80% or more of initial rated capacity |
| Thickness Expansion after 600 Cycles | 10% or less |
| Warranty Period | 365 days from shipment date |
Safety Tests Passed (UN38.3)
| Test | Condition | Result |
|---|
| Short-Circuit | External short with 0.1 Ohm or less copper wire at 25 °C | No explosion, no fire; surface temp 150 °C or less |
| Nail Penetration | 5 mm steel needle at 25 mm/s through cell center, held 1 hour | No explosion, no fire |
| Overcharge | 1.0C to 4.60 V, CV held 2.5 hours | No explosion, no fire |
| Heating | Ramp 5 °C/min to 130 °C, held 30 min | No explosion, no fire |
| Vibration | 0.8 mm amplitude, 10–55 Hz sweep on X/Y/Z axes, 90–100 min each | No fire, no explosion, no smoke |
| Drop | 1 m free-fall on concrete, 6 drops across 3 axes at 25 °C | No fire, no explosion, no smoke |
Applications
The OID1260110SS10AH is designed as the core cell for multi-cell drone battery packs and UAV power modules, including agricultural spray drones, industrial inspection UAVs, delivery drones, fixed-wing and VTOL platforms, and FPV racing quadcopters. Also suitable for e-bike battery packs, portable energy storage systems, industrial UPS backup modules, and other applications requiring verified transport safety, long cycle life, and stable performance across wide temperature ranges.
Ordering and OEM Information
| Item | Details |
|---|
| MOQ | 100 pcs |
| Monthly Supply Capacity | 1,000,000 pcs |
| Lead Time | 7 to 10 days for stock orders |
| Shipment SoC | 3.80 to 4.05 V (UN38.3 compliant) |
| Payment Terms | TT, L/C, Western Union |
| Origin | China (Shenzhen) |
| OEM / ODM | Tab dimensions, capacity, voltage platform, and custom pack assemblies available upon request |
| Contact | Shenzhen Jianheng Technology Co., Ltd. / OID — wholesale pricing, samples, custom quotes |
