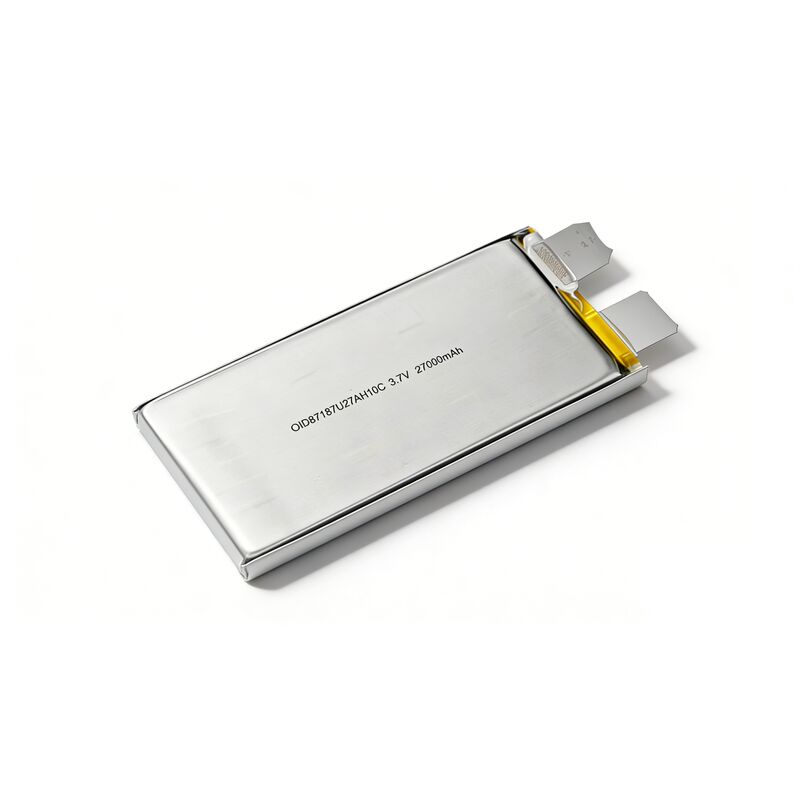

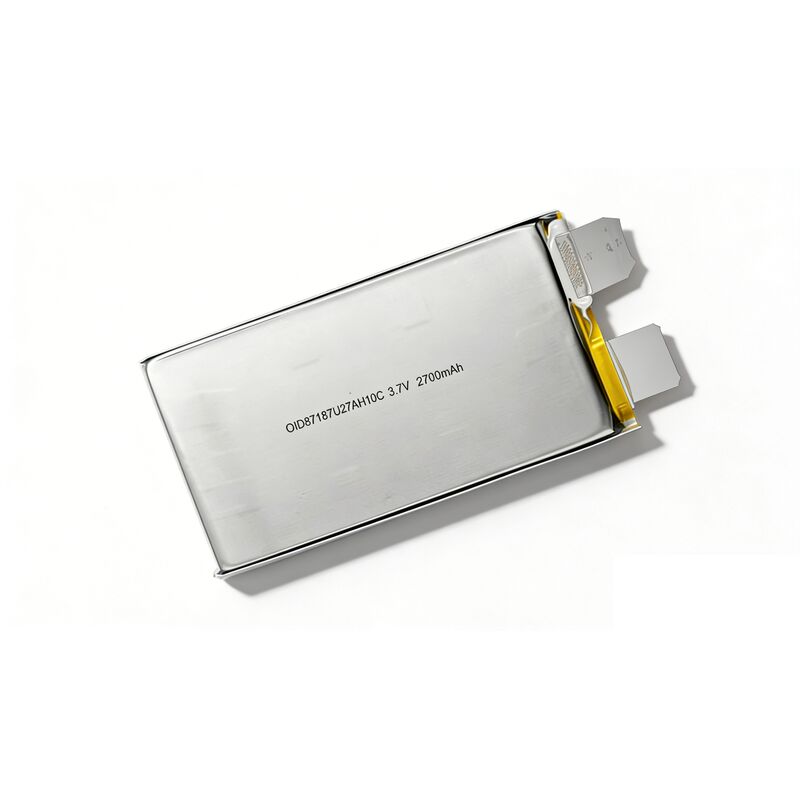

Engineered by Jianheng (Shenzhen Jianheng Technology Co Ltd), the OID1087187-27000mAh-3.7V-10C is a high-power lithium polymer battery designed for drone (UAV) applications requiring extreme reliability, high discharge platform, and excellent efficiency. With an ultra-low internal resistance of ≤1.0mΩ and a continuous 10C (135A) discharge capability, this cell delivers consistent high voltage under heavy load, maximizing flight time and power output.
| Parameter | Value |
|---|---|
| Nominal Capacity | 27000mAh (0.2C discharge) |
| Minimum Capacity | 26460mAh |
| Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V |
| Cut-off Voltage | 2.8V |
| Standard Charge | 0.5C (13.5A) CC/CV to 4.2V, 0.05C cut-off |
| Fast Charge | 1C (27A) |
| Super Fast Charge | 2C (54A) |
| Continuous Discharge (Rate) | 5C (135A) – 10C optional |
| Pulse Discharge (≤5S) | 10C (270A) |
| Internal Impedance | ≤1.0mΩ |
| Weight | ~365g |
| Energy Density (Weight) | ≥270Wh/kg |
| Energy Density (Volume) | ≥625Wh/L |
| Dimensions (T×W×L) | 9.8±0.3mm × 87±1.0mm × 187.0±2.0mm |
| Tab (Positive) | Aluminum, 0.3±0.03mm thick |
| Tab (Negative) | Copper-nickel plated, 0.2±0.02mm thick |
| Test Item | Condition | Performance |
|---|---|---|
| C-rate (5C/0.5C) | 25℃, 0.5C charge, 5C discharge to 2.8V | ≥90% of rated capacity |
| Capacity at 0℃ | 0.2C discharge after 0.2C standard charge | ≥85% |
| Capacity at -10℃ | 0.2C discharge after 0.2C standard charge | ≥70% |
| Cycle Life (0.5C/0.5C) | 25℃, charge 0.5C, discharge 0.5C to 2.8V | ≥800 cycles to 80% capacity |
| Cycle Life (0.5C/3C) | 25℃, charge 0.5C, discharge 3C to 2.8V | ≥500 cycles to 80% capacity |
| Cycle Life (0.5C/5C) | 25℃, charge 0.5C, discharge 5C to 2.8V | ≥300 cycles to 80% capacity |
| Self-discharge | 25±2℃ storage 1 month after standard charge | ≥85% remaining |
| High Temperature (55℃) | 4h storage after standard charge, 0.5C discharge | ≥98% |
The OID1087187 cell uses advanced Li-Po chemistry optimized for high-rate applications. The ≤1.0mΩ internal resistance is achieved through low-impedance electrode design and high-conductivity tabs (aluminum positive, nickel-plated copper negative). At 5C continuous discharge, efficiency remains ≥90%, meaning less heat generation and more energy delivered to the motor. The high discharge platform (voltage under load) improves drone stability and responsiveness, especially during rapid throttle changes.
Intended Use: Drones, UAVs, high-drain RC models, and portable power tools requiring high current bursts.
Safety Warnings (Extract):
Storage: Keep at 0℃~35℃, ≤75% RH, with 30-60% charge state for long-term storage (3.7V~3.9V).
1-year warranty from factory delivery against material/process defects (excluding abuse, overcharge, over-discharge, or mismatch with protection board/charger). For technical support, contact Jianheng at alan@liion-batt.com.
