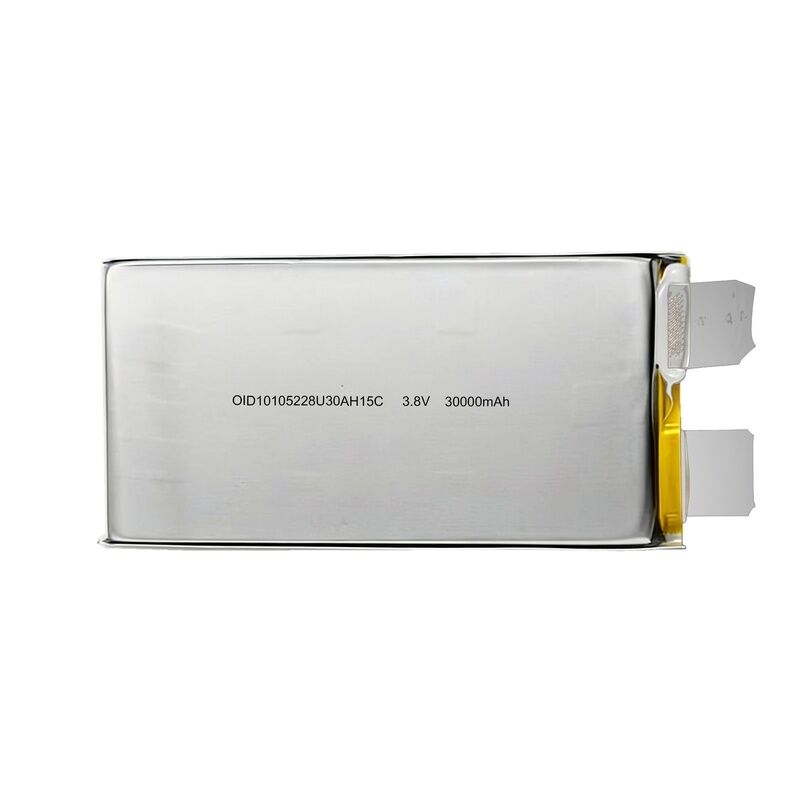

Jianheng presents the OID 10105228 high-performance lithium polymer battery, engineered for professional drones, UAVs, and high-power RC applications. With a massive 30000mAh capacity, 10C continuous (300A) and 15C pulse discharge, plus an ultra-low internal resistance of ≤1.0mΩ, this cell delivers reliable high-power output and exceptional cycle life.
| Parameter | Value |
|---|---|
| Nominal Capacity | 30000mAh (0.2C Discharge) |
| Minimum Capacity | 29400mAh |
| Nominal Voltage | 3.8V |
| Full Charge Voltage | 4.35V |
| Standard Charge Current | 0.5C (15A) |
| Fast Charge Current | 4C (120A) |
| Super Fast Charge Current | 5C (150A) |
| Standard Discharge Current | 0.5C (15A) |
| Continuous Rate Discharge Current | 10C (300A) |
| Pulse Discharge Current (≤5S) | 15C (450A) |
| Cut-Off Voltage | 3.0V |
| Internal Impedance | ≤1.0mΩ |
| Dimensions (H x W x L) | 10.0±0.3mm x 105.0±1.0mm x 228.0±2.0mm |
| Weight | 565g ±10g |
| Weight Energy Density | ≥200Wh/kg |
| Volume Energy Density | ≥430Wh/L |
| Cycle Life (≥80% Capacity) | ≥1000 Cycles |
| Charge Temperature Range | 0℃ to 45℃ |
| Discharge Temperature Range | -20℃ to 55℃ |
| Storage Temperature | 0℃ to 35℃ (30-60% charge state) |
| Shipping Voltage | 3.8V - 3.85V |
Designed for professional use in heavy-lift drones, UAVs, FPV racing drones, and high-discharge RC models. Always use a compatible LiPo charger with proper 4.35V charging profile. Do not short-circuit, puncture, or expose to temperatures above 80℃. Follow all safety warnings in the datasheet. The battery is certified with UN38.3 and MSDS for safe air and ground transport.
