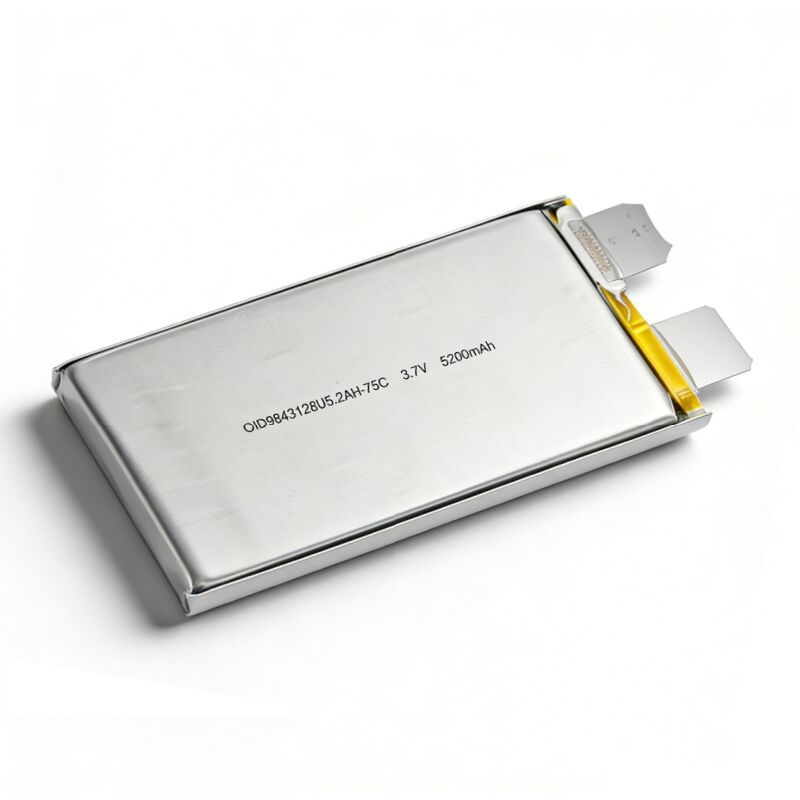

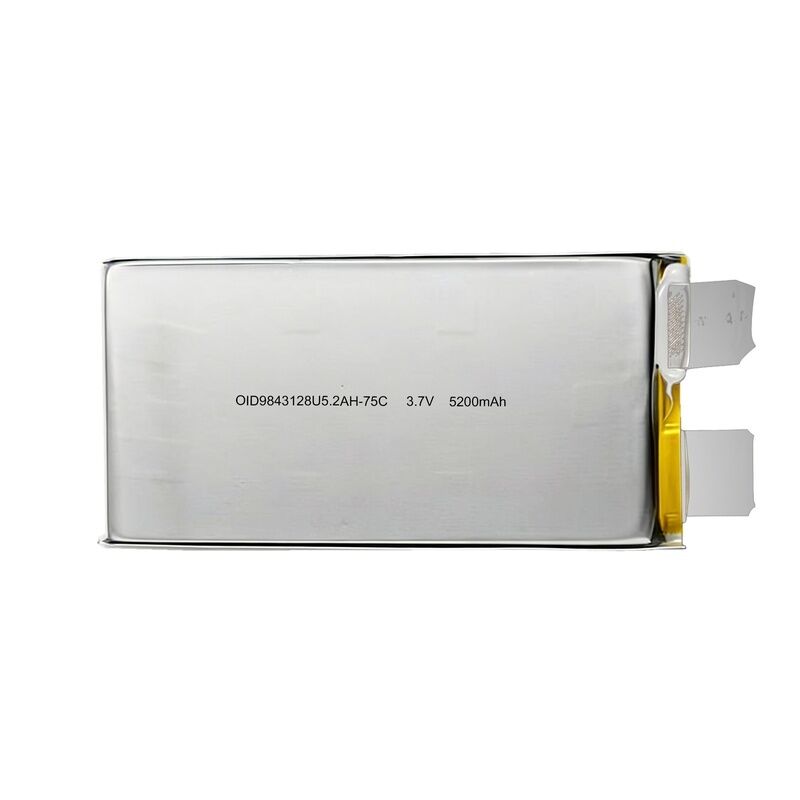

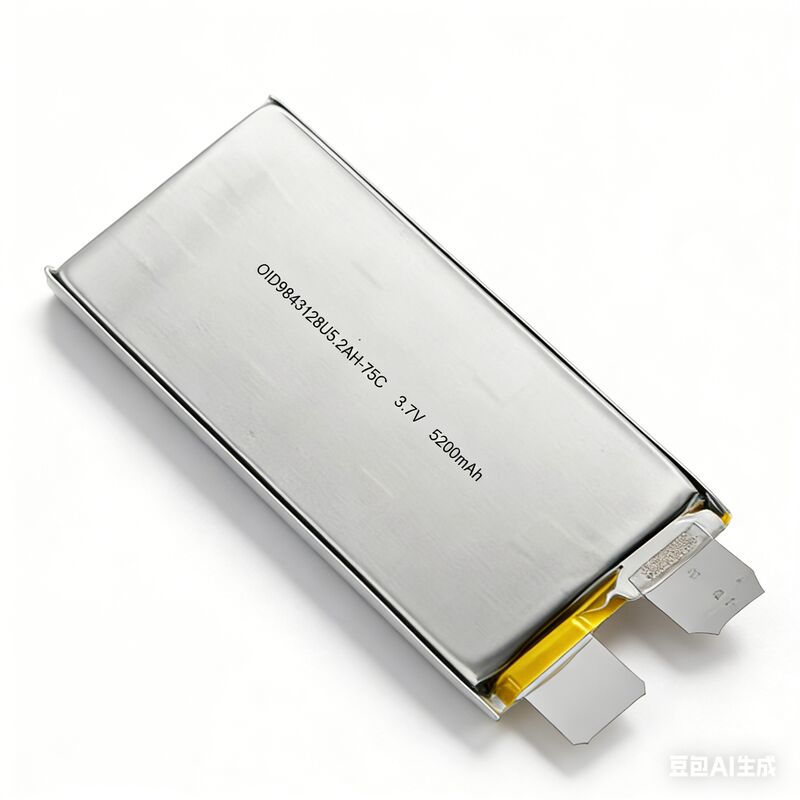

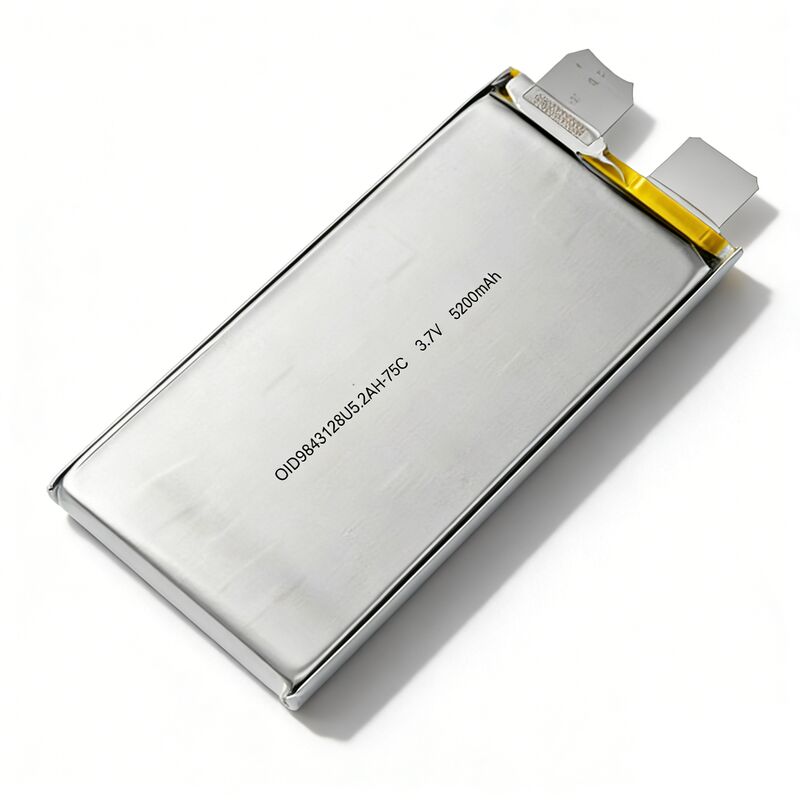

The OID 5200mAh 75C Lithium Polymer battery is engineered for high-performance drones, FPV racing, and RC applications. With a genuine 40C continuous and 75C burst discharge capability, extremely low internal resistance (≤2mΩ), and high discharge platform efficiency, this cell delivers reliable power output and extended cycle life. Manufactured under strict quality control by Shenzhen Jianheng Technology Co Ltd, each battery meets UN38.3 and MSDS certification standards for safe transport and operation.
| Parameter | Value |
|---|---|
| Nominal Capacity | 5200mAh (0.2C discharge) |
| Minimum Capacity | 5100mAh |
| Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V ±0.05V |
| Standard Charge Current | 1C (5.2A) CC/CV to 4.2V, cut-off 0.05C |
| Fast Charge Current | 2C (10.4A) CC/CV to 4.2V, cut-off 0.05C |
| Standard Discharge Current | 0.5C (2.6A) |
| Continuous Rate Discharge Current | 40C (208A) |
| Pulse Discharge Current (≤10s) | 75C (390A) |
| Discharge Cut-off Voltage | 3.0V |
| Internal Impedance | ≤2mΩ (AC 1kHz) |
| Dimensions (H x W x L) | 9.8±0.3mm x 43.0±1.0mm x 128.0±2.0mm |
| Weight | 128g ±10g |
| Energy Density | ≥150Wh/kg |
| Operating Temperature (Charge) | 0°C to 45°C |
| Operating Temperature (Discharge) | -20°C to 55°C |
| Storage Voltage Range | 3.7V – 3.9V |
| Storage Temperature | 0°C – 35°C (≤75% RH) |
The OID 5200mAh 75C battery supports 40C continuous discharge (208A) and 75C pulse discharge (390A for ≤10 seconds) at 25°C. This makes it perfect for high-performance drones and RC cars.
Under standard 1C charge / 3C discharge conditions at 25°C, the battery retains ≥80% of initial capacity after 300 cycles. Proper usage (avoid over-discharge below 3.0V and excessive heat) can extend cycle life.
Yes, this LiPo cell is UN38.3 and MSDS certified. It is shipped at storage voltage (3.7V-3.9V) and complies with international dangerous goods regulations for lithium batteries.
For long-term storage, keep the battery at 3.7V–3.9V per cell, store in a cool dry place between 0°C and 35°C with humidity ≤75% RH. Never store fully charged or fully discharged for extended periods.
Absolutely. With 5200mAh capacity, 40C continuous discharge, and ultra-low internal resistance (≤2mΩ), this battery provides stable voltage under high load, reducing voltage sag and improving flight consistency.
Always use a compatible LiPo charger with CC/CV mode. Never short circuit, over-discharge below 3.0V, puncture, or expose to temperatures above 80°C. Do not charge unattended. If the battery swells, leaks, or smells unusual, discontinue use immediately.
Guaranteed ≤2mΩ. Lower internal resistance means higher discharge efficiency, less heat generation, and better voltage retention under heavy load – critical for drone racing and high-drain devices.
Yes, per the specification, it passes vibration test (10Hz-55Hz, XYZ axes) and 1m drop test onto hardwood board with no leakage, fire, or explosion. Designed for rugged RC and drone environments.
Brand: OID
Manufacturer: Shenzhen Jianheng Technology Co Ltd
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
Tel: 0086 137 2555 9416
Email: alan@liion-batt.com
Production Capacity: 10,000 units/month
Origin: China
Certifications: UN38.3, MSDS
Standard export carton packaging with individual cell compartments. MOQ: 1 piece. Delivery time: based on order quantity and stock. Payment methods: T/T, PayPal, Wire Transfer. Port: Shenzhen, China.
