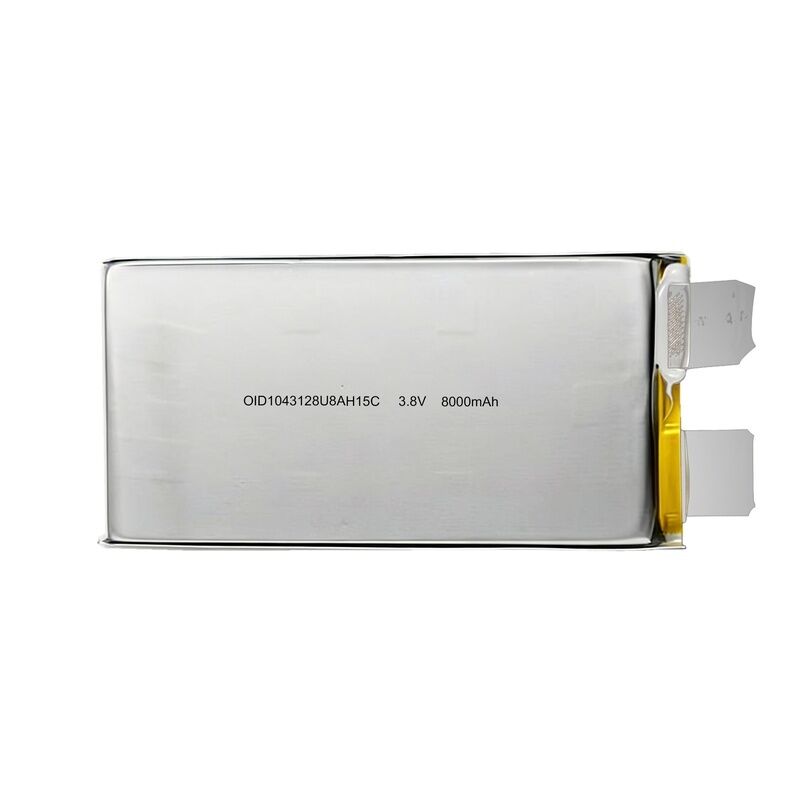

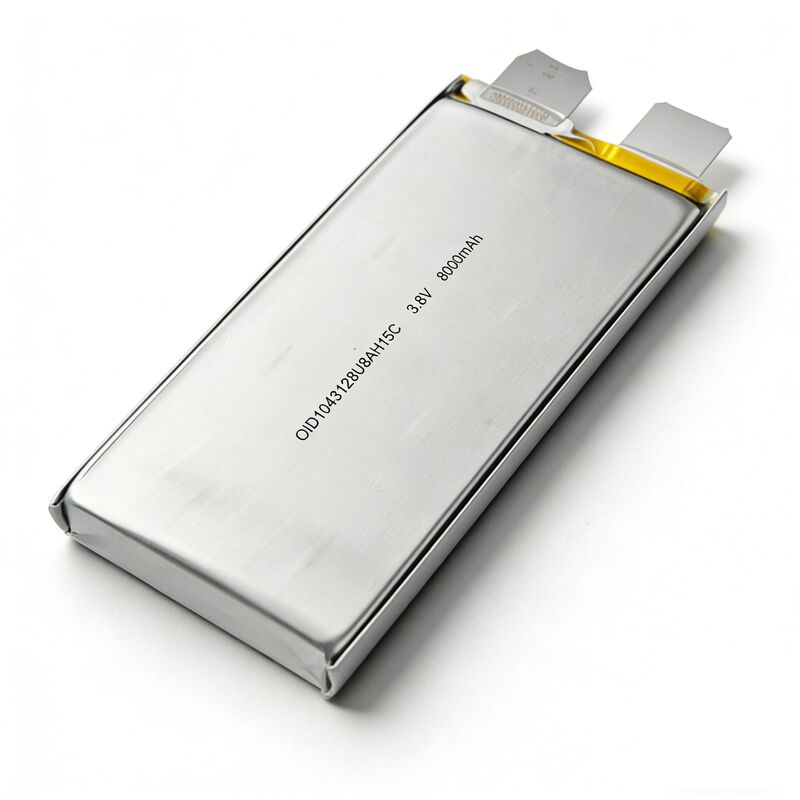

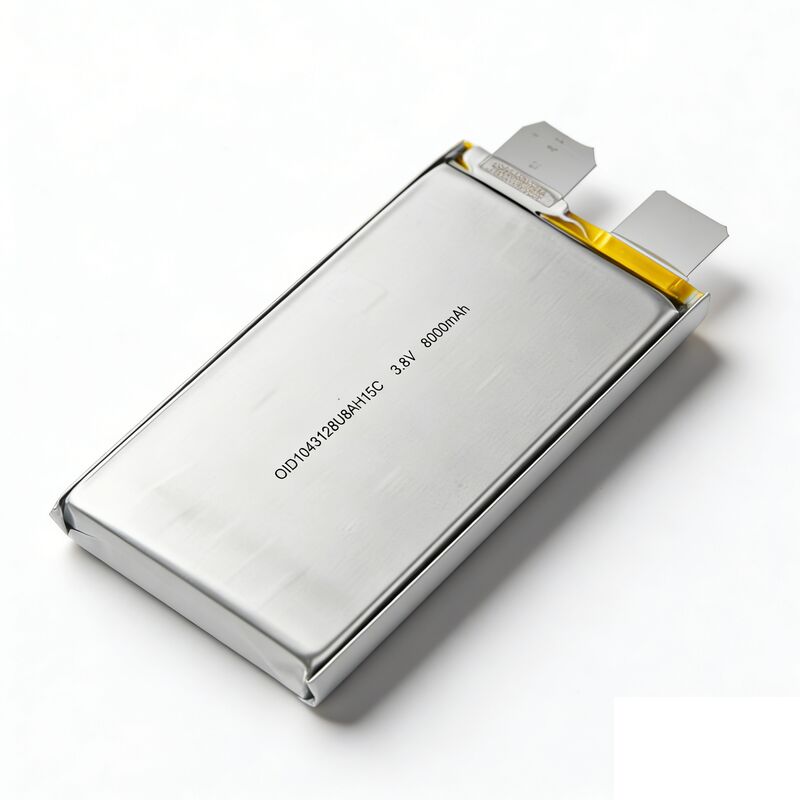

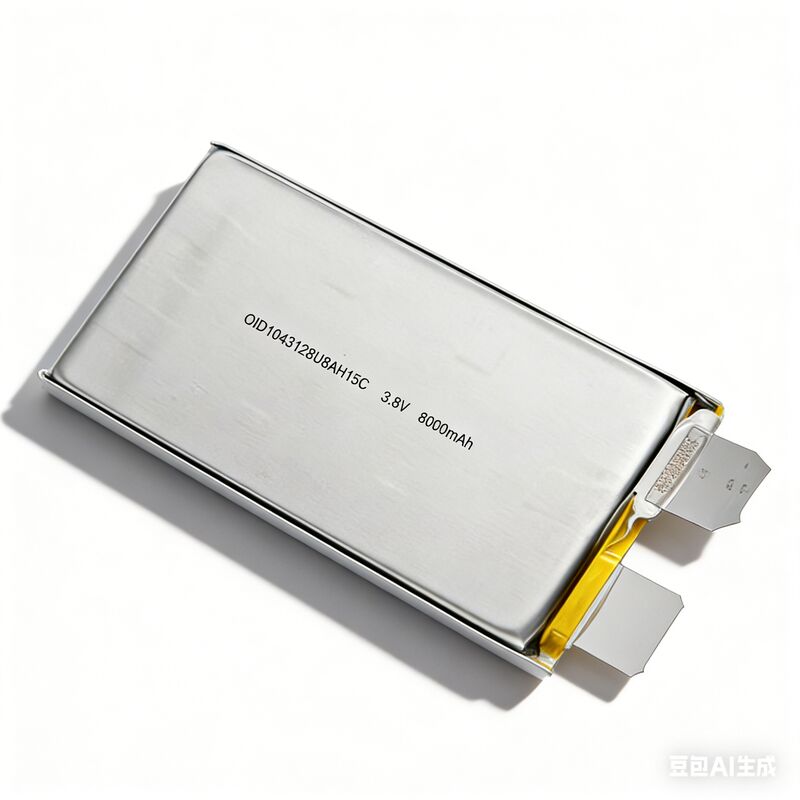

Designed for high-performance UAVs and RC models, the OID 8000mAh 3.8V 15C Li-Po battery delivers exceptional power density and reliability. With a maximum continuous discharge of 15C (120A) and pulse discharge up to 15C (120A for 10 seconds), this battery ensures stable flight and extended runtime. Its ultra-low internal resistance (≤2mΩ) and high discharge platform provide superior energy efficiency and voltage stability under heavy loads.
| Parameter | Value |
|---|---|
| Nominal Capacity | 8000mAh (0.2C discharge) |
| Minimum Capacity | 7840mAh |
| Nominal Voltage | 3.8V |
| Full Charge Voltage | 4.35V |
| Cut-off Voltage | 3.0V |
| Standard Charge Current | 0.5C (4A) |
| Fast Charge Current | 1C (8A) |
| Super Fast Charge Current | 2C (16A) |
| Standard Discharge Current | 0.5C (4A) |
| Max Continuous Discharge | 10C (80A) |
| Pulse Discharge Current | 15C (120A ≤10s) |
| Internal Impedance | ≤2mΩ |
| Dimensions (H x W x L) | 10.6±0.3mm x 43.0±1.0mm x 128.0±2.0mm |
| Weight | 130g±10g |
| Energy Density (Weight) | ≥230Wh/kg |
| Operating Temperature (Charge) | 0°C ~ 45°C |
| Operating Temperature (Discharge) | -20°C ~ 55°C |
| Shipping Voltage | 3.7V ~ 3.75V |
| Cycle Life | ≥300 cycles (80% initial capacity) |
| Test | Requirement |
|---|---|
| Vibration Test | No fire, no explosion, no leakage |
| Drop Test | No fire, no explosion, no leakage |
| Certifications | UN38.3, MSDS |
Manufacturer: Shenzhen Jianheng Technology Co Ltd (Brand: OID) – Specializing in high-rate lithium polymer batteries for drones, RC models, and portable power systems.
