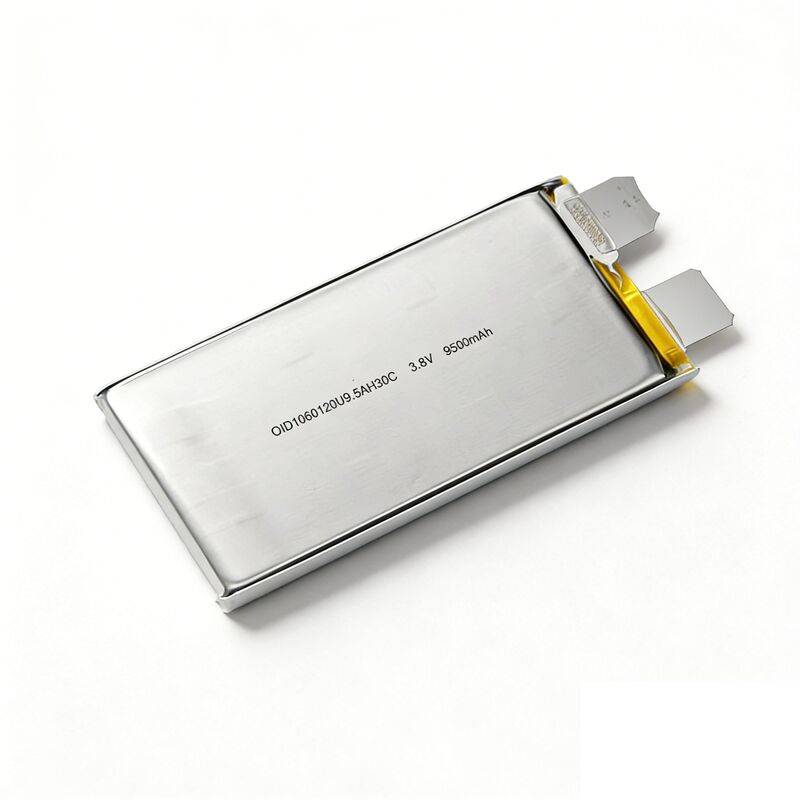

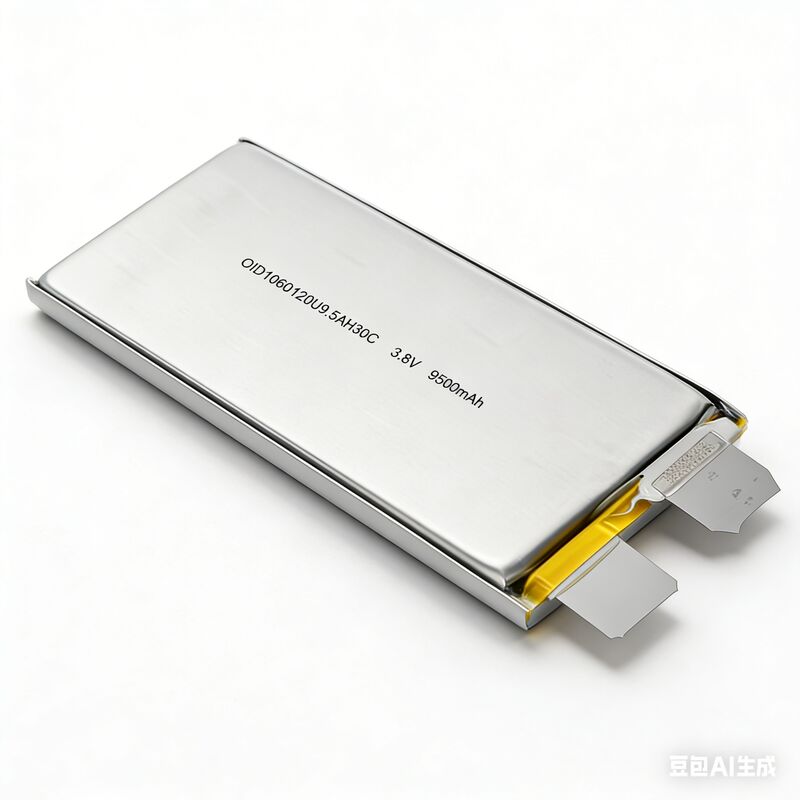

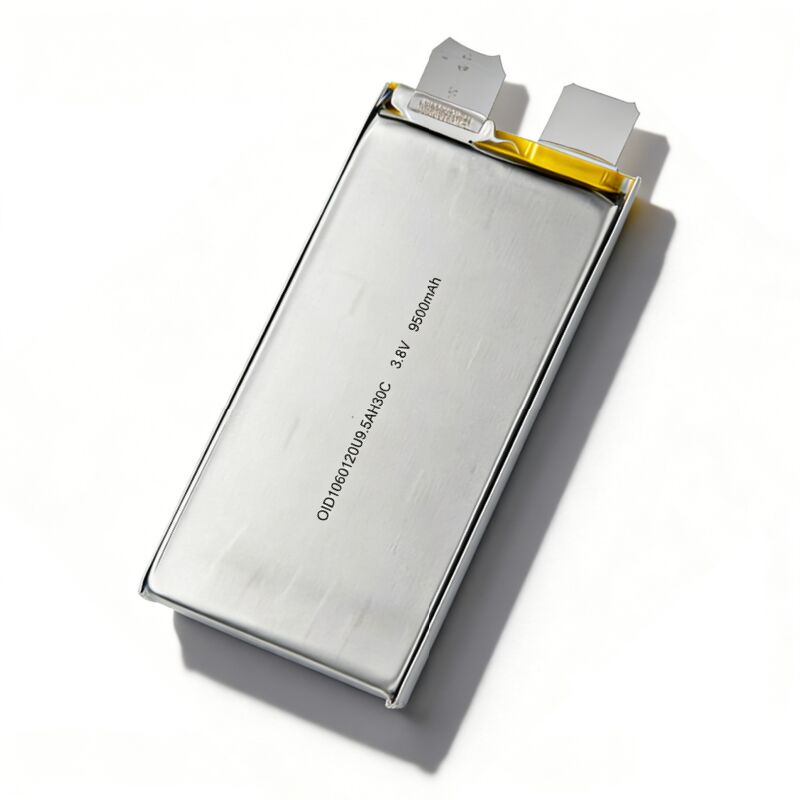

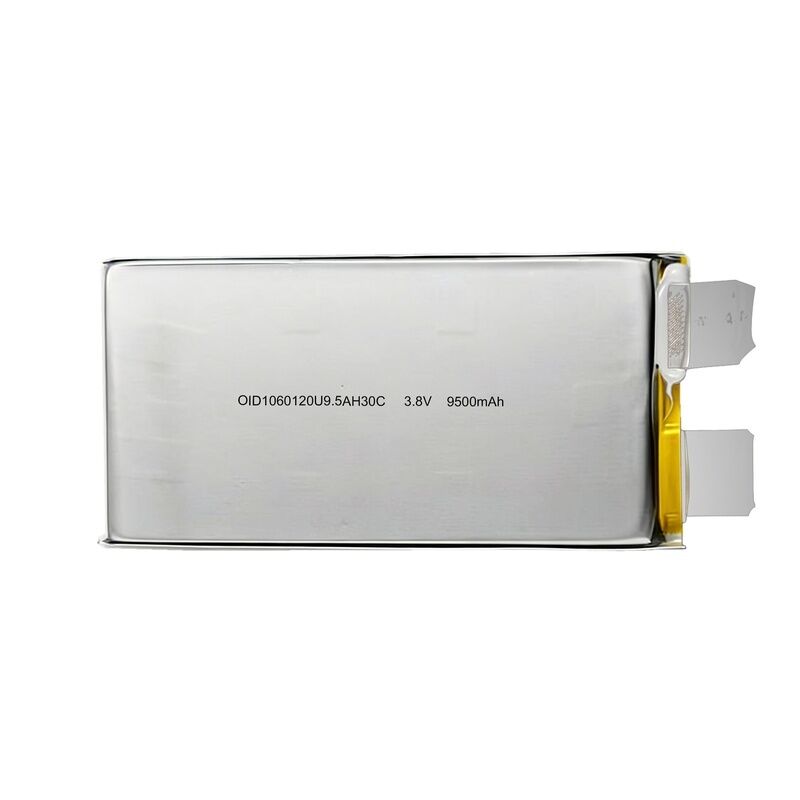

Jianheng presents the OID1060120-9500mAh-3.8V-30C lithium polymer battery, engineered for high-performance UAVs, FPV drones, and RC applications. This cell delivers exceptional power density with a 30C continuous discharge rate and 9500mAh capacity, ensuring extended flight time and explosive throttle response. With an ultra-low internal resistance (≤2mΩ) and high discharge platform efficiency, it outperforms standard batteries in demanding scenarios.
The OID drone battery supports a maximum continuous discharge current of up to 20C (190A) and a 30C pulse current (≤10s), providing instantaneous power for high-torque motors and aggressive maneuvers. The advanced lithium polymer chemistry ensures a flat voltage plateau during heavy loads, reducing voltage sag and improving overall system efficiency.
| Parameter | Value |
|---|---|
| Nominal Capacity | 9500mAh (0.2C discharge) |
| Minimum Capacity | 9000mAh |
| Nominal Voltage | 3.8V |
| Full Charge Voltage | 4.4V |
| Standard Charge Current | 0.5C (4.75A) |
| Fast Charge Current | 1C (9.5A) |
| Super Fast Charge Current | 2C (19A) |
| Standard Discharge Current | 0.5C (4.75A) |
| Continuous Discharge Current | 20C (190A) |
| Pulse Discharge Current (≤10s) | 30C (285A) |
| Cut-off Voltage | 3.0V |
| Internal Impedance | ≤2mΩ |
| Dimensions (T*W*L) | 9.6±0.3 * 60.0±1.0 * 120.0±2.0 mm |
| Weight | 160g ±5g |
| Charge Temperature Range | 0℃ to 60℃ |
| Discharge Temperature Range | -20℃ to 60℃ |
| Storage Voltage | 3.7V - 3.75V |
| Cycle Life (0.5C/0.5C) | ≥300 cycles (≥80% initial capacity) |
Jianheng ensures that each OID battery cell is manufactured with strict quality control, delivering high discharge platform efficiency and excellent thermal stability. The 30C rating allows for consistent power output without overheating, making it ideal for competitive drone racing, heavy-lift UAVs, and high-drain RC vehicles. The internal resistance is minimized to ≤2mΩ, reducing energy loss and maximizing runtime.
All OID batteries are certified according to UN38.3 and MSDS standards, ensuring safe transport and handling. The battery includes multiple safety protections against overcharge, over-discharge, short circuit, and thermal runaway when used with a compatible protection circuit. Always use a dedicated LiPo charger with balance function.
