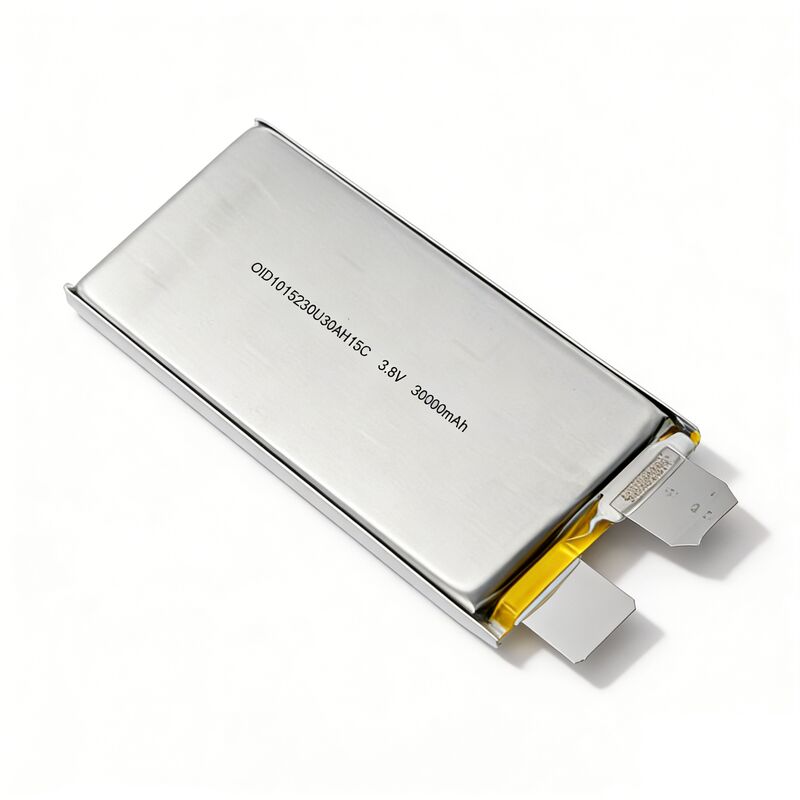

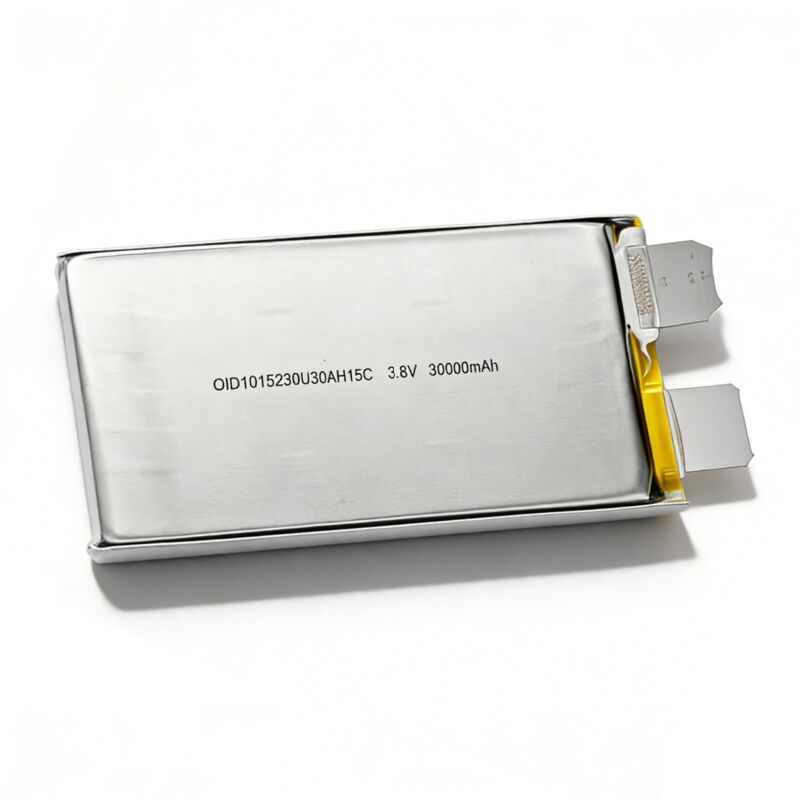

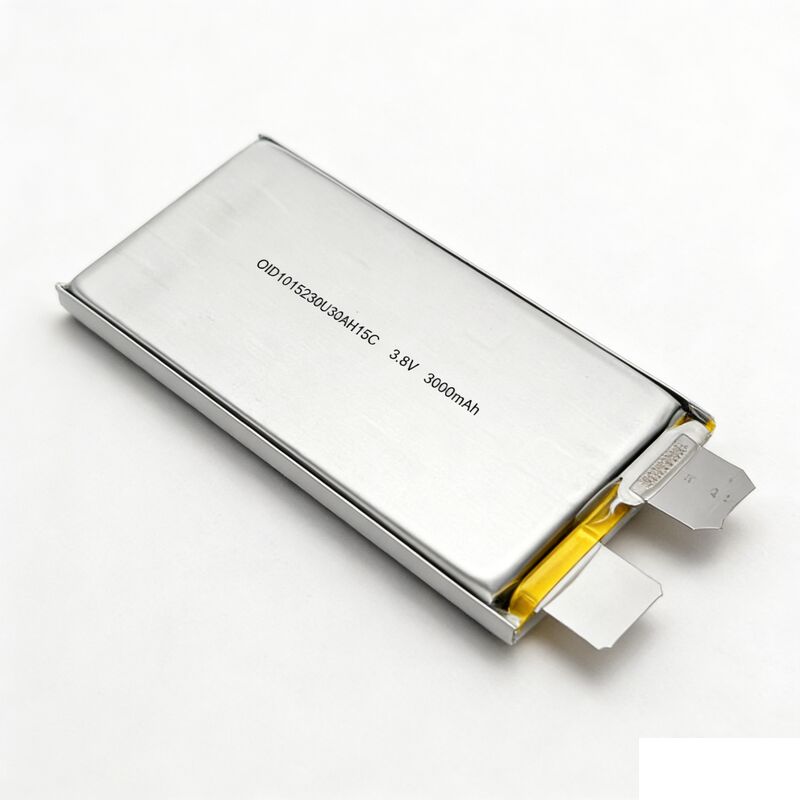

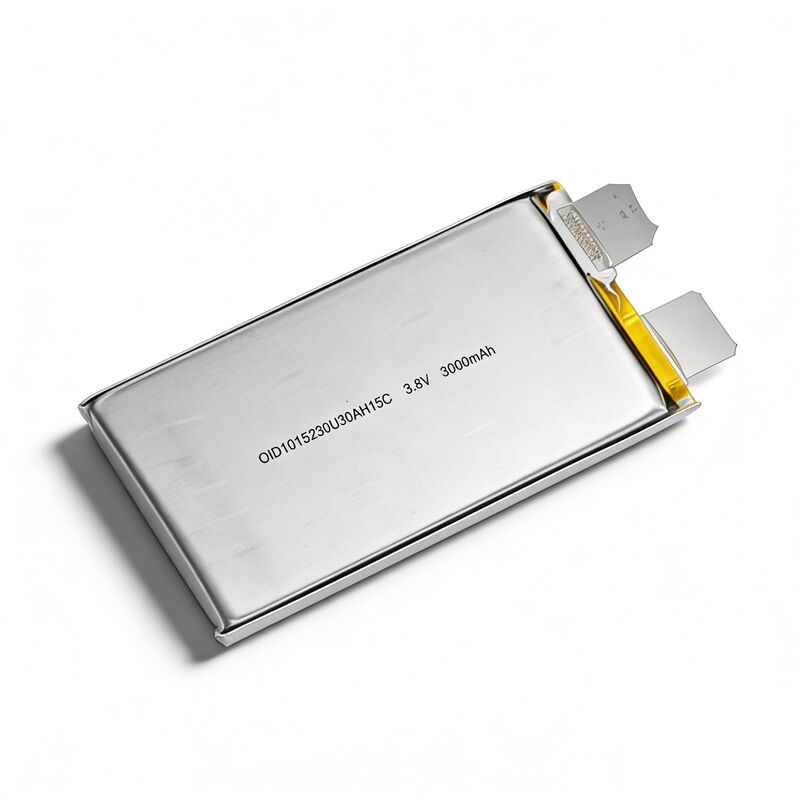

Jianheng presents the OID10105230-30000mAh-3.8V-15C, a high-performance lithium polymer battery designed for demanding drone and UAV applications. With a massive 30000mAh capacity and a continuous 15C discharge rate (300A), this battery delivers reliable, high-efficiency power. It features ultra-low internal resistance (≤1.0mΩ), a high discharge platform, and excellent discharge efficiency, ensuring your equipment operates at peak performance.
| Parameter | Value |
|---|---|
| Model | OID10105230-30000mAh-3.8V-15C |
| Nominal Capacity | 30000mAh (0.5C discharge) |
| Minimum Capacity | 29500mAh |
| Nominal Voltage | 3.8V |
| Full Charge Voltage | 4.35V |
| Cut-Off Voltage | 3.0V |
| Standard Charge Current | 0.5C (15A) |
| Fast Charge Current | 4C (120A) |
| Super Fast Charge Current | 5C (150A) |
| Standard Discharge Current | 0.5C (15A) |
| Continuous Discharge Current | 10C (300A) |
| Pulse Discharge Current | 15C (≤5 seconds) |
| Internal Impedance | ≤1.0mΩ |
| Weight | 565g ±10g |
| Dimensions (H x W x L) | 10.4±0.3mm x 105.0±1.0mm x 230.0±2.0mm |
| Tab Width | 40.0±0.3mm |
| Tab Center Distance | 53.0±2mm |
| Positive Tab (Aluminum) Thickness | 0.4±0.03mm |
| Negative Tab (Nickel-plated Copper) Thickness | 0.3±0.03mm |
| Tab Length (outside cell) | 22±1.0mm |
| Weight Energy Density | ≥200Wh/Kg |
| Volume Energy Density | ≥430Wh/L |
| Cycle Life (25℃) | ≥1000 cycles (5C charge / 10C discharge) to 80% capacity |
| Cycle Life (60℃) | ≥600 cycles (5C charge / 10C discharge) to 80% capacity |
This Li-Po battery is engineered for high-reliability applications including professional drones, UAVs, and high-drain devices. Strictly follow charging guidelines: charge at 0℃-45℃ using a compatible charger. Do not overcharge, over-discharge, short-circuit, or mechanically damage the battery. Store at 0℃-35℃ with 30-60% charge for long-term preservation. The battery complies with UN38.3 and MSDS transport safety standards.
MOQ: 1 piece. Monthly supply ability: 10,000 units. Packaging: Standard export carton. Port: Shenzhen, China. For best pricing and customized solutions, please contact Jianheng directly.
