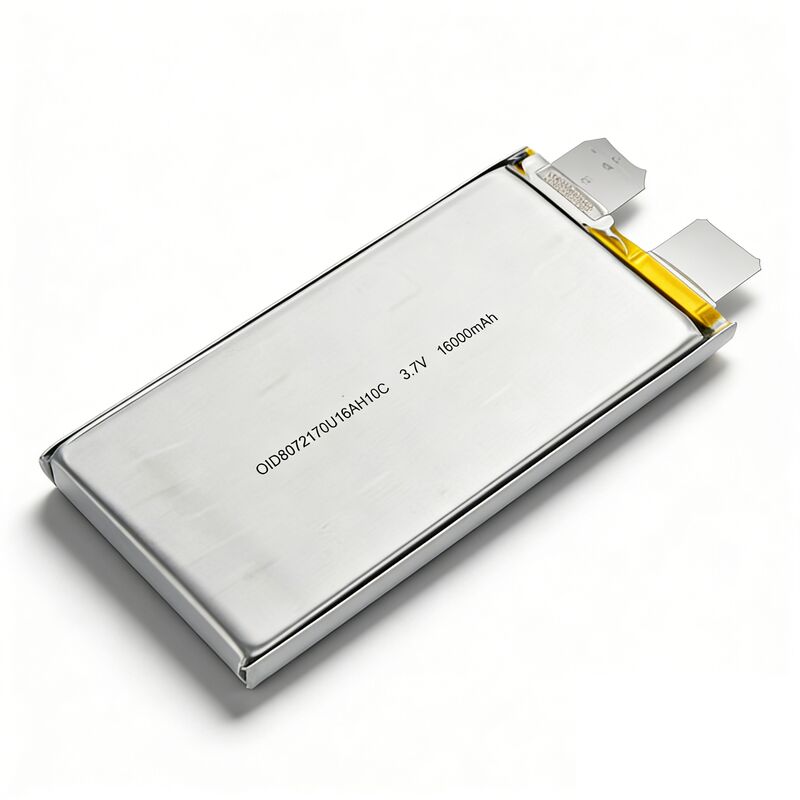

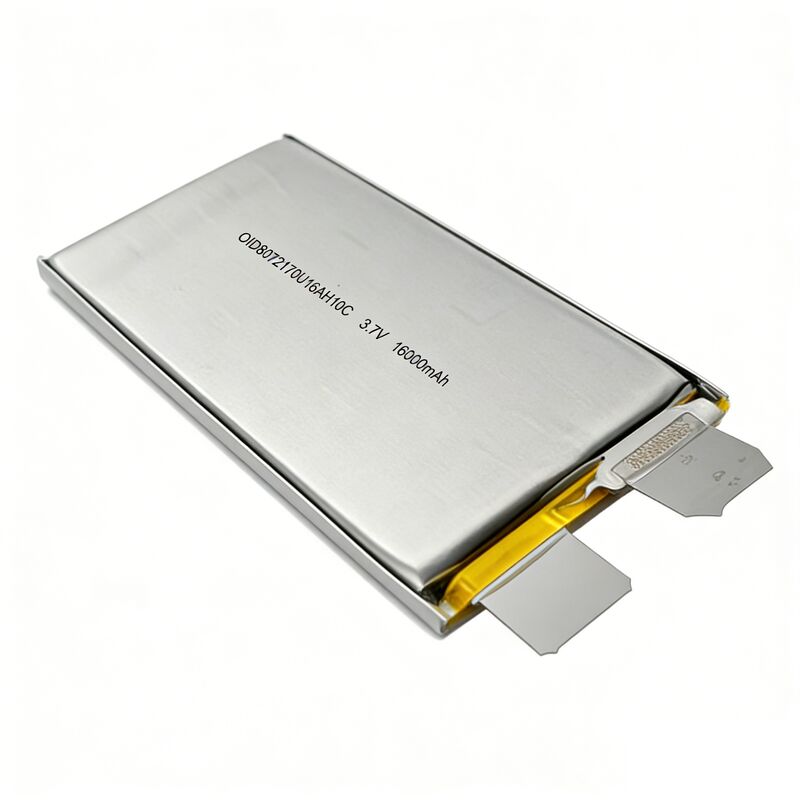

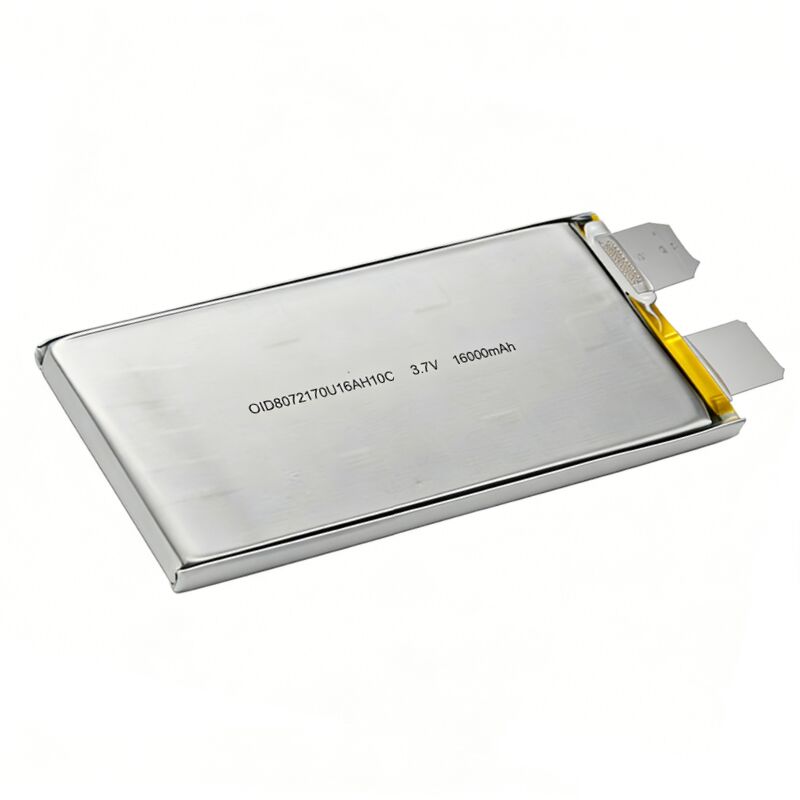

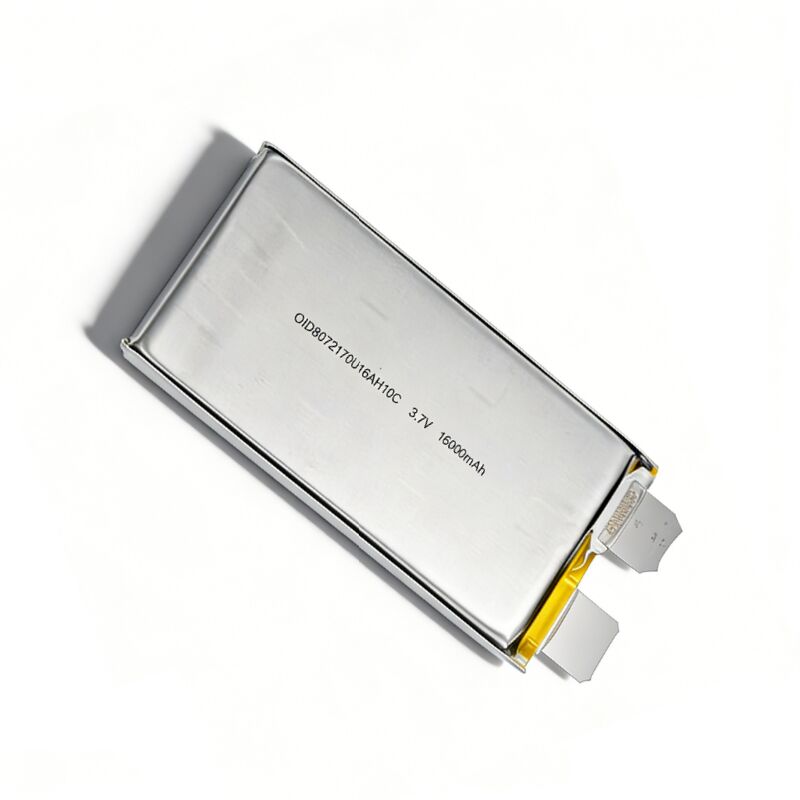

Engineered by Shenzhen Jianheng Technology Co Ltd (Jianheng), the OID8072170-16000mAh-3.7V-10C is a high-performance lithium polymer battery cell designed for demanding UAV and RC applications. With a true 10C pulse discharge and ultra-low internal resistance (≤2mΩ), this cell delivers stable voltage platforms, high discharge efficiency, and exceptional reliability over 1000 cycles. Upgrade your drone or high-power device with the trusted power of OID.
| Parameter | Value |
|---|---|
| Nominal Capacity | 16000mAh (0.2C discharge) |
| Minimum Capacity | 16000mAh |
| Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V ±0.05V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.5C (8A) |
| Fast Charge Current | 1C (16A) |
| Super Fast Charge Current | 2C (32A) |
| Standard Discharge Current | 0.5C (8A) |
| Continuous Discharge Current (Rate) | 7C (112A) |
| Pulse Discharge Current | 10C (160A) ≤10s |
| Internal Impedance | ≤2mΩ |
| Cell Weight | 220g ±10g |
| Energy Density (Weight) | ≥275Wh/Kg |
| Energy Density (Volume) | ≥580Wh/L |
| Dimension (Thickness) | 7.6 ±0.3mm |
| Dimension (Width) | 72.0 ±1.0mm |
| Dimension (Length) | 170.0 ±2.0mm |
| Positive Tab (Aluminum) | 0.3 ±0.03mm |
| Negative Tab (Ni-plated Cu) | 0.2 ±0.03mm |
| Test Item | Performance | Condition |
|---|---|---|
| Discharge Efficiency (7C) | ≥90% | 0.5C charge, 7C discharge to 2.75V |
| Capacity at 0℃ | ≥85% of initial | 0.2C discharge |
| Capacity at 40℃ | ≥90% of initial | 0.2C discharge |
| Cycle Life (3C discharge) | ≥1000 cycles (80% remaining) | 0.5C CC/CV 4.2V, 3C CC to 2.75V |
| Cycle Life (5C discharge) | ≥400 cycles (80% remaining) | 0.5C CC/CV 4.2V, 5C CC to 2.8V |
| Self-discharge (1 month) | ≥85% capacity retention | 25±2℃ storage |
| High Temperature Performance | ≥98% capacity | 55±2℃ for 4 hours, 0.5C discharge |
| Test | Requirement | Method |
|---|---|---|
| Vibration Test | No fire, no explosion, no leakage | 10-55Hz, 0.19-0.38mm amplitude, 30min/axis |
| Drop Test | No fire, no explosion, no leakage | 1m height onto hard wood, 3 times each orientation |
| Certification | UN38.3, MSDS | Compliant for air transport |
Manufacturer: Shenzhen Jianheng Technology Co Ltd (Jianheng)
Brand: OID
MOQ: 1 piece (samples available)
Supply Ability: 10,000 units per month
Packaging: Standard export carton with foam protection
Port: Shenzhen, China
Delivery Time: 15-25 working days (depending on order quantity)
Price: Contact for best offer
Phone: 0086 137 2555 9416
Email: alan@liion-batt.com
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
12-month warranty from factory delivery against material or process defects under proper use (see full specification for details). Always use within specified charge/discharge limits. Do not short-circuit, disassemble, or expose to fire. For professional use only.
