OID 17000mAh 10C High Discharge Drone LiPo Battery with Ultra-Low Internal Resistance for UAV Applications

OID 17000mAh 10C High Discharge Drone LiPo Battery with Ultra-Low Internal Resistance for UAV Applications

Products - Drone Battery
  • Nominal Capacity
    17000mAh
  • Nominal Voltage
    3.7V
  • Max Continuous Discharge
    7C
  • Pulse Discharge
    10C ≤10s
  • Internal Resistance
    ≤2mΩ
  • Cycle Life 3C
    ≥1000 Cycles To 80%
  • Weight Energy Density
    ≥275Wh/Kg
  • Volume Energy Density
    ≥580Wh/L
  • Place of Origin
    China
  • Brand Name
    OID
  • Certification
    UN38.3, MSDS
  • Model Number
    OID0872170-17000mAh-3.7V-10C
  • Minimum Order Quantity
    1pcs
  • Price
    Contact for best price
  • Packaging Details
    Standard export carton or customized
  • Delivery Time
    3-7 working days for samples, 15-25 days for bulk
  • Payment Terms
    L/C,D/A,D/P,T/T,Western Union
  • Supply Ability
    10000 units per month

OID 17000mAh 10C High Discharge Drone LiPo Battery with Ultra-Low Internal Resistance for UAV Applications

  • OID 17000mAh 10C High Discharge Drone LiPo Battery with Ultra-Low Internal Resistance for UAV Applications
  • OID 17000mAh 10C High Discharge Drone LiPo Battery with Ultra-Low Internal Resistance for UAV Applications
  • OID 17000mAh 10C High Discharge Drone LiPo Battery with Ultra-Low Internal Resistance for UAV Applications
  • OID 17000mAh 10C High Discharge Drone LiPo Battery with Ultra-Low Internal Resistance for UAV Applications
Get Price Contact Now

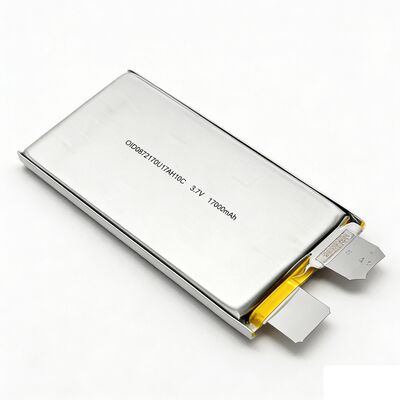

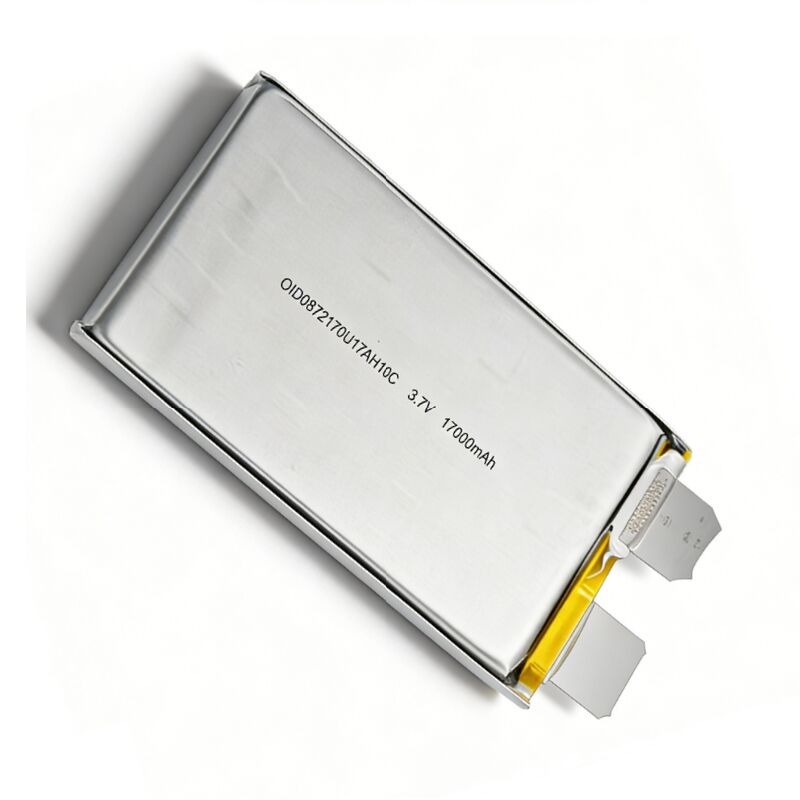

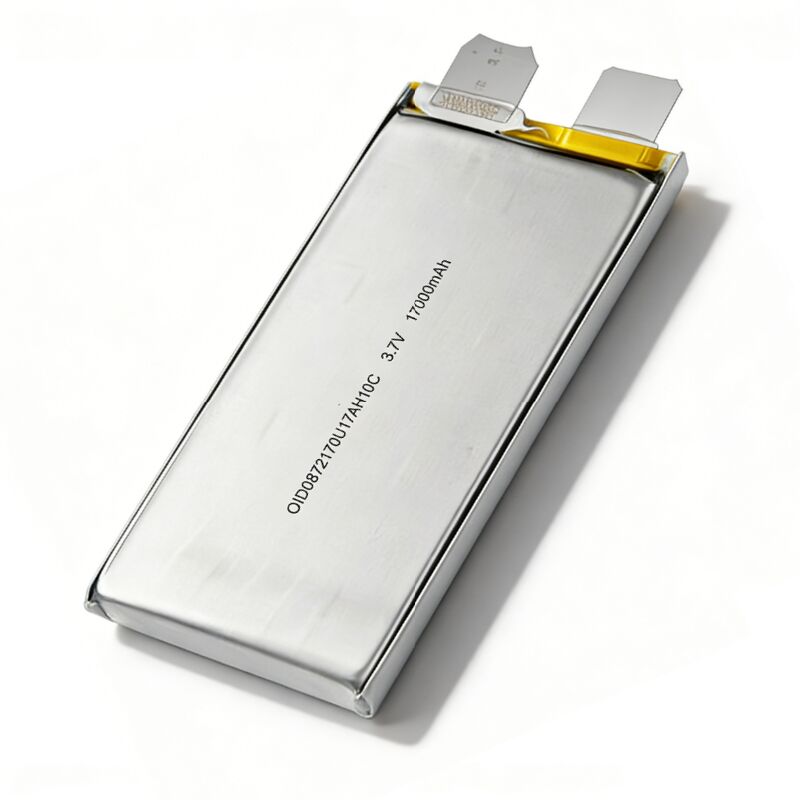

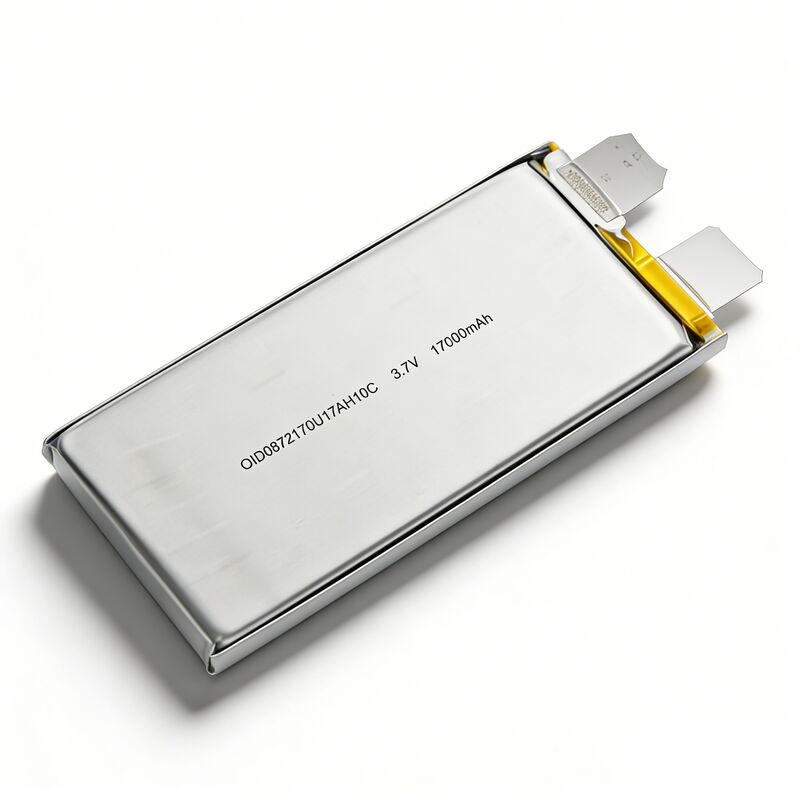

OID 17000mAh 3.7V 10C High Discharge Lithium Polymer Battery (Model: OID0872170-17000mAh-3.7V-10C)

The OID0872170-17000mAh-3.7V-10C is a high-performance lithium polymer (LiPo) battery designed for demanding drone and UAV applications. Manufactured by Shenzhen Jianheng Technology Co Ltd, this cell delivers exceptional reliability, a high discharge platform, and outstanding energy efficiency with ultra-low internal resistance (≤2mΩ). It supports 7C continuous discharge and 10C pulse discharge (≤10s), making it ideal for high-power electric unmanned aerial systems.

Key Features & Benefits
  • High Capacity: 17000mAh nominal capacity (16500mAh min) for extended flight times
  • High Discharge Rate: 7C continuous discharge, 10C pulse discharge for peak power demands
  • Ultra-Low Internal Resistance: ≤2mΩ ensures minimal energy loss and high discharge platform stability
  • High Energy Density: ≥275Wh/Kg weight energy ratio and ≥580Wh/L volume energy ratio
  • Long Cycle Life: ≥1000 cycles at 3C discharge with 80% remaining capacity
  • Wide Temperature Operation: Discharge from -20℃ to 55℃, charge from 0℃ to 45℃
  • Fast Charging Capable: Supports up to 2C super-fast charging current
Technical Specifications
Parameter Value
Nominal Capacity 17000mAh (0.2C discharge)
Minimum Capacity 16500mAh
Nominal Voltage 3.7V
Full Charge Voltage 4.2V
Cut-off Voltage 2.75V
Standard Charge Current 0.5C (8.5A) CC/CV to 4.2V, cut-off ≤0.05C
Fast Charge Current 1C (17A)
Super Fast Charge Current 2C (34A)
Standard Discharge Current 0.5C (8.5A)
Continuous Discharge Rate 7C (119A)
Pulse Discharge Rate 10C (170A, ≤10 seconds)
Internal Impedance ≤2mΩ
Weight 225g ±10g
Dimensions (H x W x L) 8.2±0.3mm x 72.0±1.0mm x 170.0±2.0mm
Energy Density (Weight) ≥275Wh/Kg
Energy Density (Volume) ≥580Wh/L
Shipping Voltage 3.5V - 3.6V
Operating Temperature (Charge) 0℃ to 45℃
Operating Temperature (Discharge) -20℃ to 55℃
Performance Data
Test Item Condition Performance Criterion
C-rate Characteristics 0.2C / 7C discharge at 25℃ 0.2C ≥98% / 7C ≥90%
Temperature Dependence 40℃ / 0℃ / -20℃ ≥90% / ≥85% / ≥80% of initial capacity
Cycle Life (3C discharge) 0.5C charge, 3C discharge to 2.75V, 25℃ ≥1000 cycles to 80% capacity
Cycle Life (5C discharge) 0.5C charge, 5C discharge to 2.8V, 25℃ ≥400 cycles to 80% capacity
Self-discharge 25±2℃ storage for 1 month Capacity retention ≥85%
High Temperature Performance 55±2℃ for 4 hours after standard charge ≥98% of initial capacity
Mechanical & Safety Compliance
  • Vibration Test: No fire, no explosion, no leakage (per specification)
  • Drop Test: No fire, no explosion, no leakage from 1m height on hardwood
  • Certifications: UN38.3 (transportation safety), MSDS (material safety data sheet)
Storage & Warranty

Store at 0℃ to 35℃ and ≤75% RH. For long-term storage, maintain 30-60% charge state (3.5V-3.6V). The battery warranty is 1 year from factory delivery against defects in material or workmanship under proper usage conditions. Exclusions include overcharge, over-discharge, physical damage, or mismatched chargers/protection boards.

Important Safety Warnings
  • Do not disassemble, short-circuit, or reverse charge the battery.
  • Do not expose to fire, temperatures above 80℃, or direct sunlight.
  • Do not immerse in water or use if swollen, leaking, or deformed.
  • Charge only within 0℃ to 45℃ using a compatible charger.
  • Keep away from children and static electricity sources >64V.
Ordering & Contact Information

Brand: OID

Manufacturer: Shenzhen Jianheng Technology Co Ltd

Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China

Phone: 0086 137 2555 9416

Email: alan@liion-batt.com

Place of Origin: China

Minimum Order Quantity (MOQ): 1 piece (sample order available)

Supply Ability: 10,000 units per month

Packaging: Standard export carton or customized per requirement

Delivery Port: Shenzhen, China

Payment Methods: T/T, PayPal, Western Union (contact for details)

Delivery Time: 3-7 working days for samples, 15-25 days for bulk orders

Price: Contact for competitive pricing and volume discounts.
