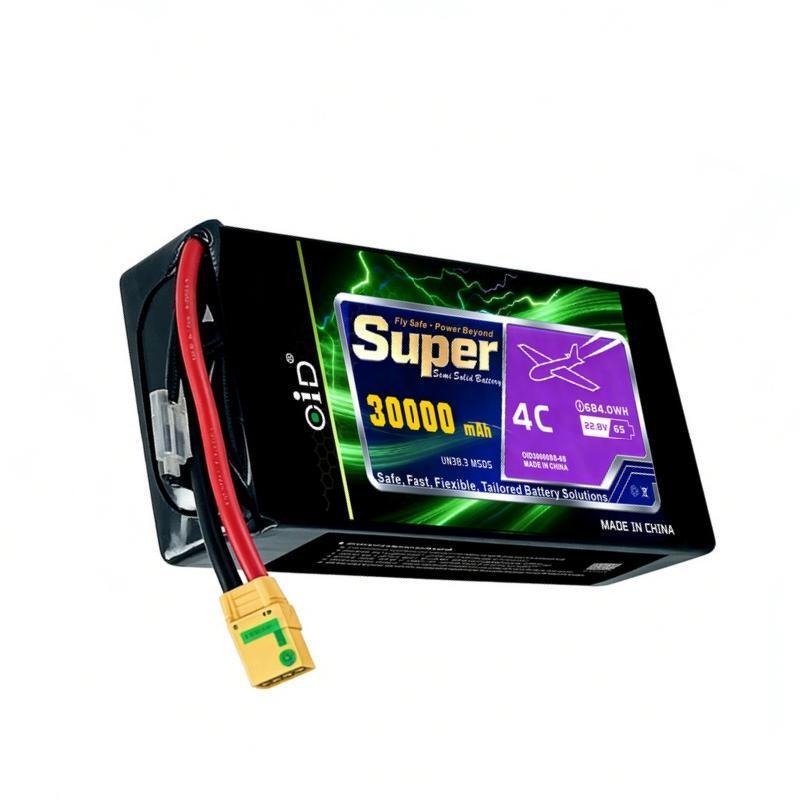

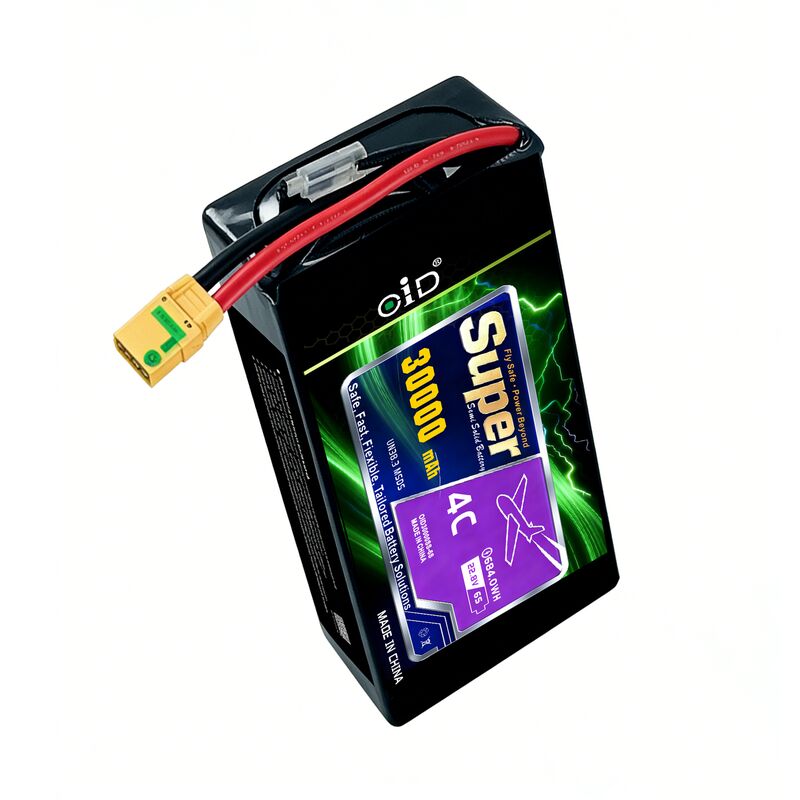

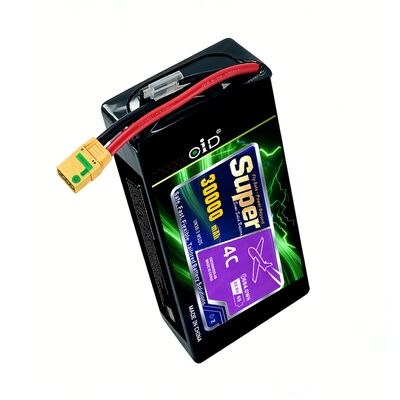

Jianheng presents the OID76113235-30000mAh-22.8-4C, a high-performance Lithium Polymer (LiPo) battery pack specifically engineered for professional drones and UAV applications. This battery delivers exceptional reliability, a high discharge platform, outstanding discharge efficiency, and ultra-low internal resistance to maximize flight time and power output.
| Parameter | Value |
|---|---|
| Nominal Voltage | 22.8V |
| Typical Capacity | 30000mAh (0.5C charge/discharge) |
| Minimum Capacity | 29000mAh |
| Charging Voltage | 26.1V |
| Discharge Cut-off Voltage | 18V |
| Max Continuous Discharge Current | 90A (determined by wire and connector) |
| Peak Discharge Current | 120A |
| Max Charge Current | 3.0C (recommended 1C) |
| Internal Impedance | ≤15mΩ (AC 1KHz, 50% charge) |
| Weight | Approx. 3600g |
| Shipment Voltage | ≥23.1V (storage within 21.6V~23.4V recommended) |
| Dimension | Limit (mm) |
|---|---|
| Thickness | ≤76mm |
| Width | ≤113mm |
| Height | ≤235mm |
Connector Configuration:
| Test Item | Criteria |
|---|---|
| Cycle Life | ≥500 cycles (80% of initial capacity at 0.5C discharge) |
| Self-discharge (30 days at 23±5℃) | Residual capacity >90% |
| Low Temperature Performance (-10℃) | Capacity retention ≥80% (0.2C discharge) |
| High Temperature Performance (55℃ storage 4h) | Capacity recovery ≥85% |
The battery pack integrates a dedicated PCM with essential safety functions:
| Test | Condition | Requirement |
|---|---|---|
| Vibration | 10Hz~55Hz, 1.6mm amplitude, 30min per XYZ axis | No fire, no leakage |
| Drop | 1m height onto 20mm hardwood, 6 directions | No fire, no leakage |
| Over-discharge | 1C discharge to 0V | No fire, no leakage |
For pricing and customization, please contact Shenzhen Jianheng Technology Co Ltd for competitive solutions.
Manufacturer: Shenzhen Jianheng Technology Co Ltd
Phone: 0086 137 2555 9416
Email: alan@liion-batt.com
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
Our products are sold all over the world, you can rest assured.
