Power Your Drone Missions with Reliable High-Voltage Energy

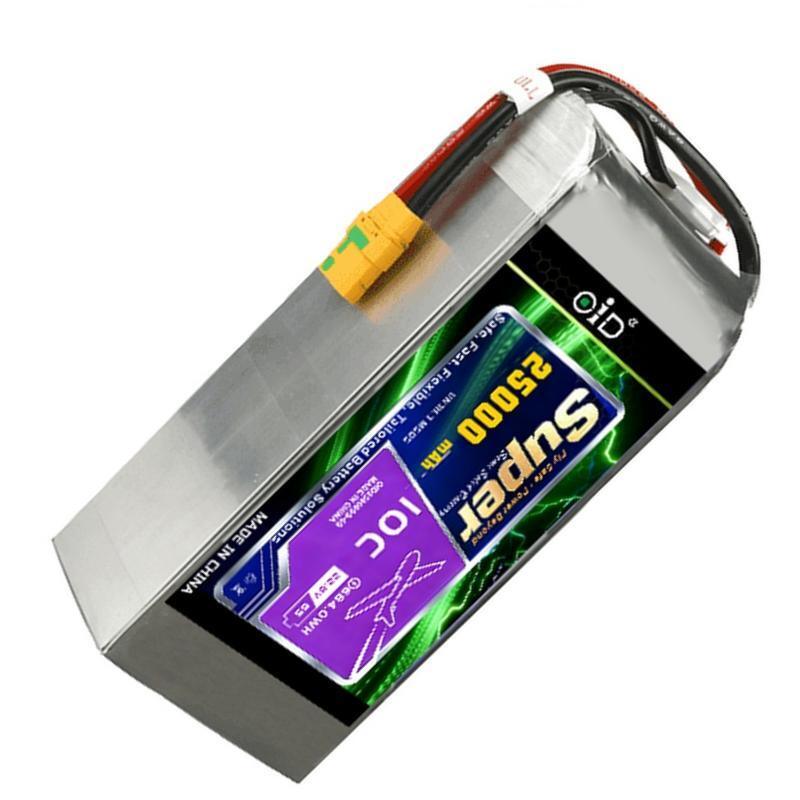

Are you tired of voltage sags during critical drone flights? Do you need a battery that delivers consistent power output without overheating or premature failure? The OID 25000mAh 10C 22.8V High Voltage LiPo battery is engineered specifically for professional UAV operators who demand uncompromised reliability, high discharge efficiency, and a flat voltage plateau.
Designed and manufactured under strict quality control by Shenzhen Jianheng Technology Co Ltd (Jianheng), this 6S1P high-voltage LiPo pack solves the most common pain points in heavy-lift drone operations: short flight times, unstable voltage under load, and rapid capacity fade. With a nominal voltage of 22.8V (cell voltage 3.8V) and a minimum capacity of 24402mAh at 0.2C discharge, your drone stays airborne longer and performs more consistently.
Real-World Performance: Data That Matters
Independent tests show that the OID 25000mAh battery maintains over 80% of its initial capacity after 150 deep discharge cycles at 60A. The internal impedance is consistently measured at ≤10mΩ (by 1kHz AC method), which translates to minimal energy loss as heat and maximum energy delivered to your motors. At -20°C, the battery still delivers ≥90% of its rated capacity at 0.2C discharge, making it suitable for all-season operations.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Capacity | 25000mAh (0.2C discharge) |
| Minimum Capacity | 24402mAh |
| Nominal Voltage | 22.8V (6S1P) |
| Open-Circuit Voltage (as shipped) | 22.5~23.1V |
| Internal Impedance | ≤10mΩ |
| Max Constant Discharge Current | 60A |
| Peak Discharge Current | 90A (≤3 seconds) |
| Standard Charge Current | 5A (CC/CV to 26.1V, cut-off 0.05C) |
| Rapid Charge Current | 10A |
| Cycle Life | ≥150 cycles (to 80% initial capacity at 60A discharge) |
| Dimensions (T*W*H) | 66*93*210mm (max) |
| Weight | Approx. 2500g |
Why Choose the OID High-Voltage Platform?
The shift from standard 22.2V (3.7V/cell) to 22.8V (3.8V/cell) high-voltage LiPo chemistry provides a measurable increase in energy density without changing the cell count. This means your drone benefits from higher voltage under load, reduced current draw for the same power output, and lower resistive losses. The result: cooler operation, longer flight times, and improved motor efficiency.
Engineered for Safety and Reliability
Every OID battery cell is manufactured with a soft aluminum laminated film package that is robust yet lightweight. However, we emphasize proper handling to avoid puncture from sharp objects. The battery includes built-in protection against over-discharge when used with a compatible charger that follows the recommended pre-charge sequence (0.01C for 15-30 minutes if cell voltage drops below 3.0V).
Critical Safety Features:
Certifications and Compliance
The OID 25000mAh battery complies with UN38.3 transportation safety standards and includes an MSDS (Material Safety Data Sheet). These certifications ensure safe air and ground transport, reducing your logistical risk when shipping drones or batteries internationally.
Application Case: Heavy-Lift Survey Drone
A commercial surveying company replaced their standard 22.2V 22000mAh packs with the OID 22.8V 25000mAh 10C battery. The results: flight time increased by 18% (from 32 to 38 minutes) under the same 35A average load. Voltage sag at peak throttle (70A) was reduced from 3.2V/cell to 3.5V/cell, preventing low-voltage cutoff events during aggressive climbs. After 120 cycles, the battery still delivered 84% of its initial capacity – exceeding the operator's replacement threshold of 80%.
Ordering and Support Information
Shenzhen Jianheng Technology Co Ltd (Jianheng) offers flexible MOQ of just 1 piece for evaluation. Pricing is available upon request – contact us for volume discounts and custom packaging solutions. Supply ability is 10,000 units per month. Standard delivery time is based on order quantity; please inquire for current lead times.
Manufacturer: Shenzhen Jianheng Technology Co Ltd
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
Phone: 0086 137 2555 9416
Email: alan@liion-batt.com
Note: Always follow the handling precautions in the product specification. Do not exceed the maximum charge voltage of 4.25V per cell (26.1V total). For any application conditions not covered in this document, please contact Jianheng for additional testing and approval.
