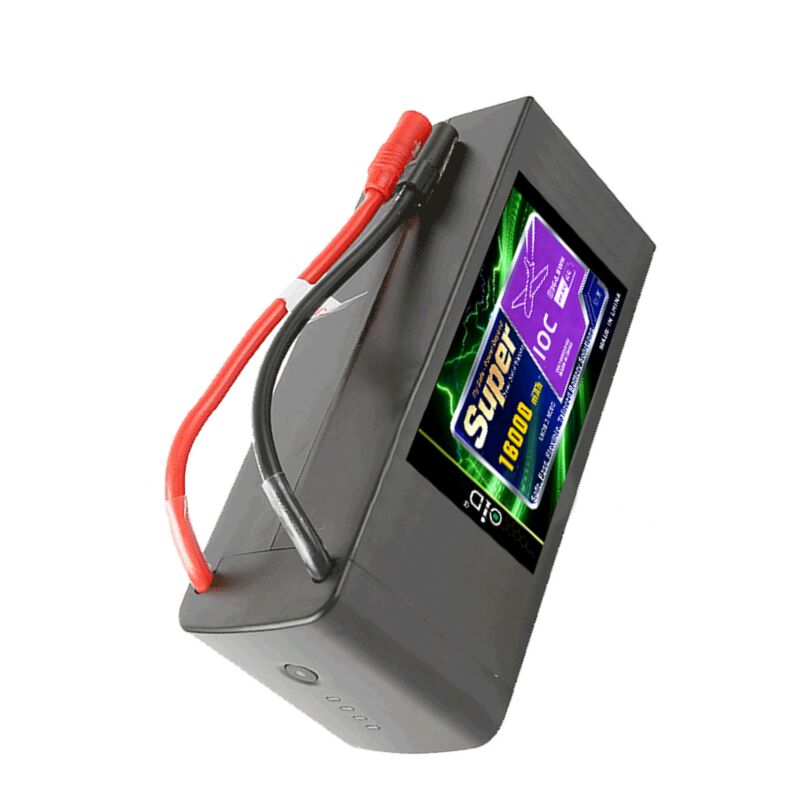

OID 16000mAh 22.8V 15C High Voltage LiPo Battery Pack for UAV Drones - 6S1P Configuration

Engineered for professional UAV applications, the OID6477196-16000mAh-22.8V-15C high voltage LiPo battery pack delivers exceptional power density and reliability. Manufactured under strict quality control by Shenzhen Jianheng Technology Co Ltd, this 6S1P battery pack is designed to maximize flight time and provide consistent high-rate discharge performance for demanding drone operations. Whether you are in aerial photography, agricultural surveying, or industrial inspection, this battery ensures your UAV performs at its peak.

• High Discharge Platform: Maintains stable voltage output under heavy load with 15C continuous discharge capability (50A max constant current) and burst up to 100A, ensuring your drone receives consistent power even during aggressive maneuvers.
• Extremely Low Internal Resistance: With internal resistance ≤9mΩ, this battery minimizes energy loss as heat, translating to more power delivered to your motors and longer effective flight time.
• High Discharge Efficiency: High voltage chemistry (4.35V per cell) provides higher energy density and improved overall efficiency, reducing weight while maintaining superior power output.
• Proven Reliability: Rigorously tested for cycle life (≥300 cycles to 80% capacity) and high temperature storage recovery (≥95%). Each pack is shipped with voltage stabilized between 22.5~23.1V for safe storage and transport.
• Comprehensive Safety Certifications: Fully certified with UN38.3 and MSDS documentation, ensuring safe air and ground transportation worldwide. Built-in protection against over-discharge and reverse charging when used with compatible chargers.

Shenzhen Jianheng Technology Co Ltd specializes in high-performance power solutions for unmanned systems. Each OID battery is assembled with precision to meet the rigorous demands of commercial UAV operators. We combine advanced lithium-polymer technology with stringent quality assurance protocols, including 100% inspection of dimensions, open-circuit voltage, and internal resistance before shipment. Our team provides dedicated technical support and responsive after-sales service.

• Always charge with a LiPo-compatible charger set to 6S (22.8V nominal / 26.1V max) and never exceed 26.1V.
• Do not discharge below 19.2V to prevent irreversible capacity loss.
• Store batteries at 21.6V~23.4V in a cool dry place (-20°C~35°C) for extended periods. Activate every 3 months with one full charge-discharge cycle.
• Inspect battery for any physical damage before each use. Do not use if the aluminum foil packaging is punctured or swollen.
• Never reverse polarity or short circuit the battery terminals.

• Professional UAV drones (agriculture, mapping, surveillance, inspection)
• FPV racing drones requiring high burst current
• Industrial robotics and portable power systems
• High-drain R/C models and eVTOL prototypes

Contact Shenzhen Jianheng Technology Co Ltd for volume pricing and customized solutions. MOQ: 1 piece for sample testing. Supply ability: 10,000 units per month. Fast delivery from Shenzhen port.
