Engineered by Shenzhen Jianheng Technology Co Ltd, the OID7379186-16000mAh-22.2-30C is a high-performance lithium-ion polymer battery pack specifically designed for professional UAV and drone applications. This battery delivers exceptional reliability, a high discharge platform, and superior discharge efficiency with an ultra-low internal resistance (R≤15mΩ). It supports continuous discharge up to 70A (determined by wire and plug, cells can handle 240A) and peak discharge of 90A (cells up to 480A), making it a robust power source for demanding aerial operations.

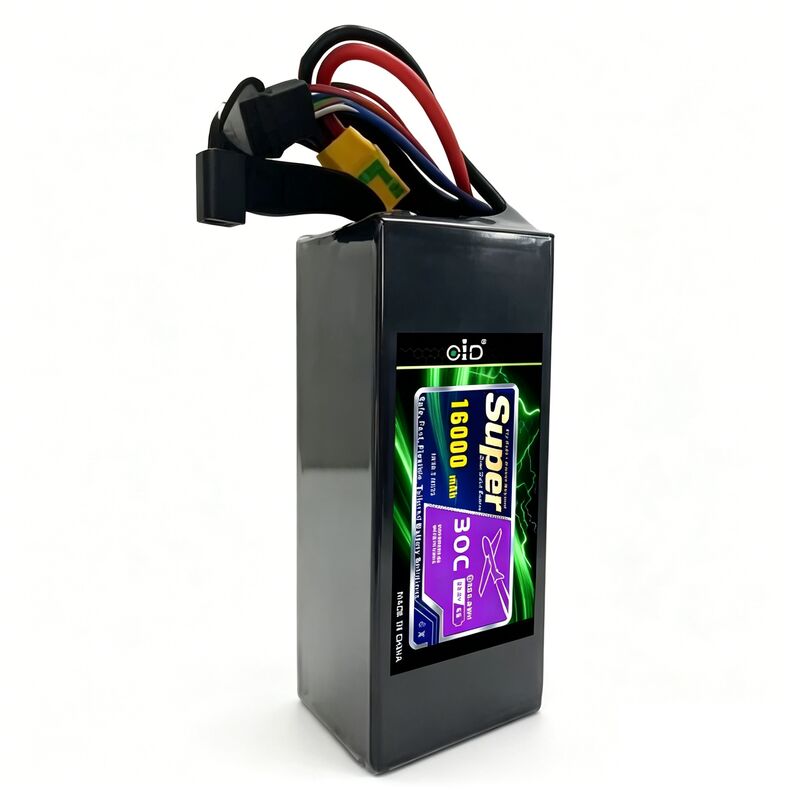

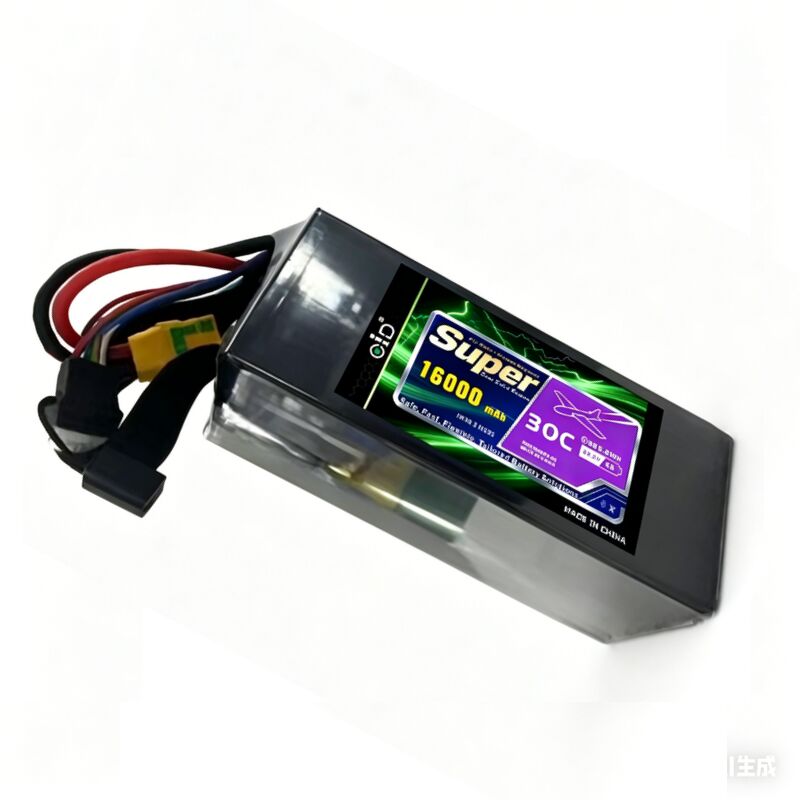

The OID7379186-16000mAh-22.2-30C is a 6-cell (6S) lithium polymer battery pack featuring a nominal voltage of 22.2V and a typical capacity of 16000mAh. It utilizes high-quality 1174170-16000mAh cells with a robust protection circuit module (PCM) for overcharge, over-discharge, and overcurrent protection. The battery comes with an XT90-S anti-spark female plug for discharge (UL3135 10AWG, 150±10mm) and a JST-XH-7P reverse waterproof connector for charging (UL3239 22AWG, 150±10mm). This design ensures safe, reliable, and efficient power delivery for high-end drones, UAVs, and other high-drain devices.
| Parameter | Value |
|---|---|
| Battery Type | Lithium-ion Polymer (LiPo) Rechargeable |
| Model Number | OID7379186-16000mAh-22.2-30C |
| Nominal Voltage | 22.2V |
| Typical Capacity | 16000mAh (0.5C charge - 0.5C discharge) |
| Minimum Capacity | 15900mAh (0.5C charge - 0.5C discharge) |
| Charging Voltage | 25.2V |
| Discharge Cut-off Voltage | 18V |
| Standard Charge Current | 0.5C (8A) CC/CV to 25.2V, cut-off ≤0.02C |
| Max Charge Current | 3.0C (48A, temperature 23±5°C) |
| Continuous Discharge Current | 70A (determined by plug and wire; cells support 240A) |
| Peak Discharge Current | 90A (determined by plug and wire; cells support 480A) |
| Internal Impedance (AC 1KHz) | R≤15mΩ |
| Weight | Approx. 2100g |
| Shipment Voltage | ≥23.1V (approx. 50% charged) |
| Charge Temperature Range | 10°C to 45°C |
| Discharge Temperature Range | -20°C to 55°C |
| Storage Temperature (1 month) | -20°C to 40°C |
| Storage Temperature (3 months) | -10°C to 35°C |
| Storage Temperature (1 year) | 22°C to 28°C |
| Dimensions (T) | ≤73mm |
| Dimensions (W) | ≤79mm |
| Dimensions (H) | ≤186mm |
| Test Item | Condition | Criteria |
|---|---|---|
| Capacity | 0.5C charge, 0.5C discharge to 18V | ≥15900mAh |
| Cycle Life | 1C charge to 25.2V, 5C discharge to 19.8V | ≥500 cycles (80% of initial capacity) |
| Self-discharge (30 days at 23±5°C) | After standard charge, store for 30 days | Residual capacity >90% |
| Low Temperature Performance (-10°C) | 0.5C discharge at -10°C | Capacity retention ≥80% (vs 23°C) |
| Low Temperature Performance (0°C) | 0.5C discharge at 0°C | Capacity retention ≥85% (vs 23°C) |
| High Temperature Performance (50°C) | 0.5C discharge at 50°C | Capacity retention ≥95% (vs 23°C) |
| High Temperature Storage (55°C for 4h) | Store at 55°C for 4h, then 0.5C discharge | Capacity recovery ≥85%, Thickness increase ≤10% |
| Vibration Test | 10Hz~55Hz, 1.6mm amplitude, 30min/axis XYZ | No fire, no leakage |
| Drop Test | 1m drop onto 20mm thick hardwood, 6 directions | No fire, no leakage |
| Over-discharge | 1C discharge to 0V | No fire, no leakage |
| Over-charge | 1C charge to n*4.5V (cell level protection) | No fire, no leakage |
Storage: The battery should be stored at temperatures between -20°C and 40°C. For long-term storage (exceeding three months), recharge every three months to maintain approximately 50% charge (21.6V~23.4V) at 23±5°C and 65±20%RH.
Warranty: 1 year from the date of shipment against manufacturing defects. Abuse or misuse is not covered.
