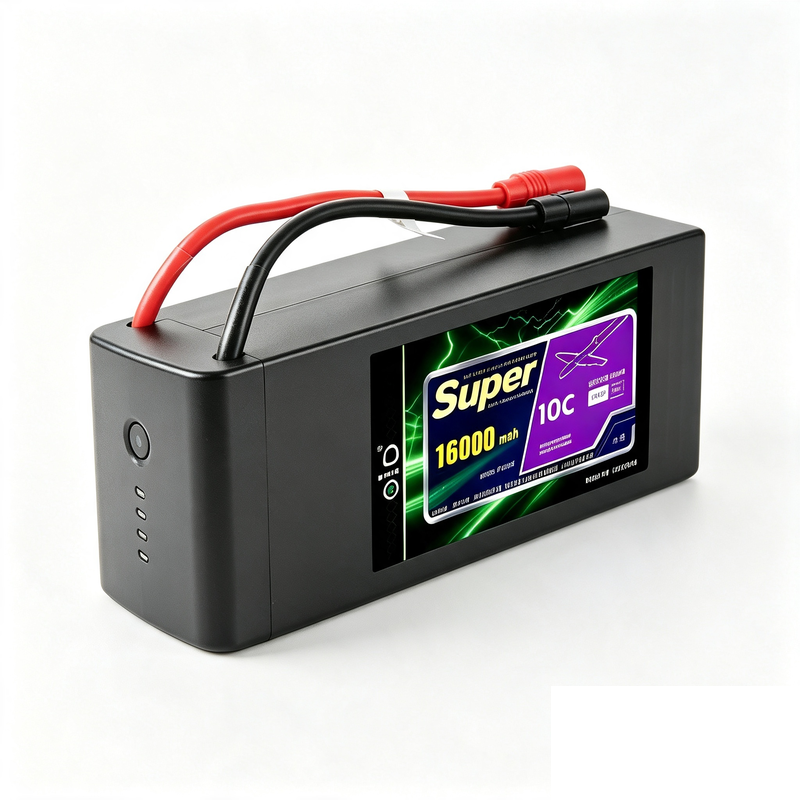

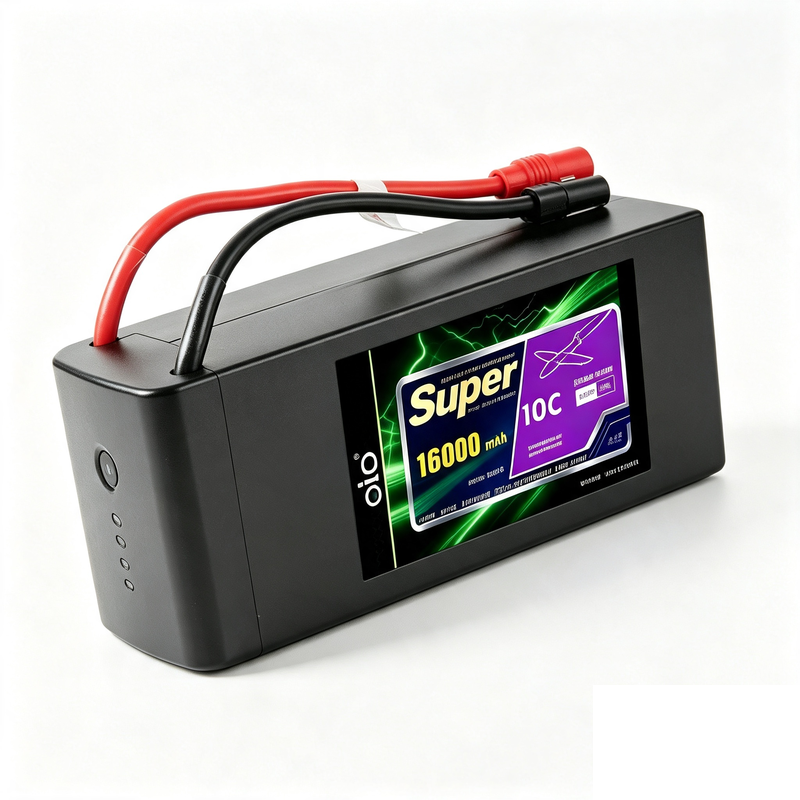

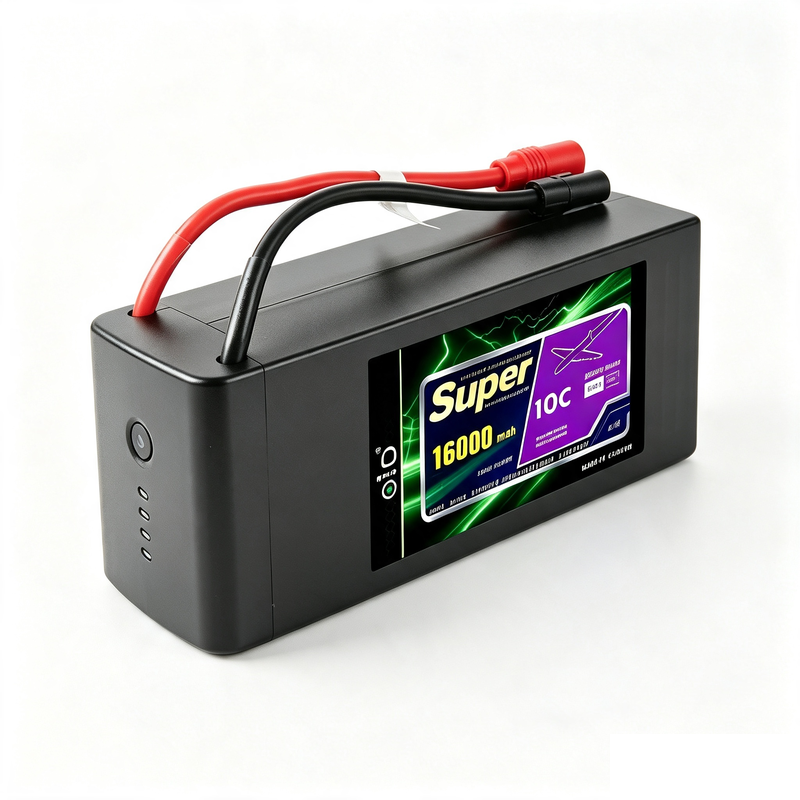

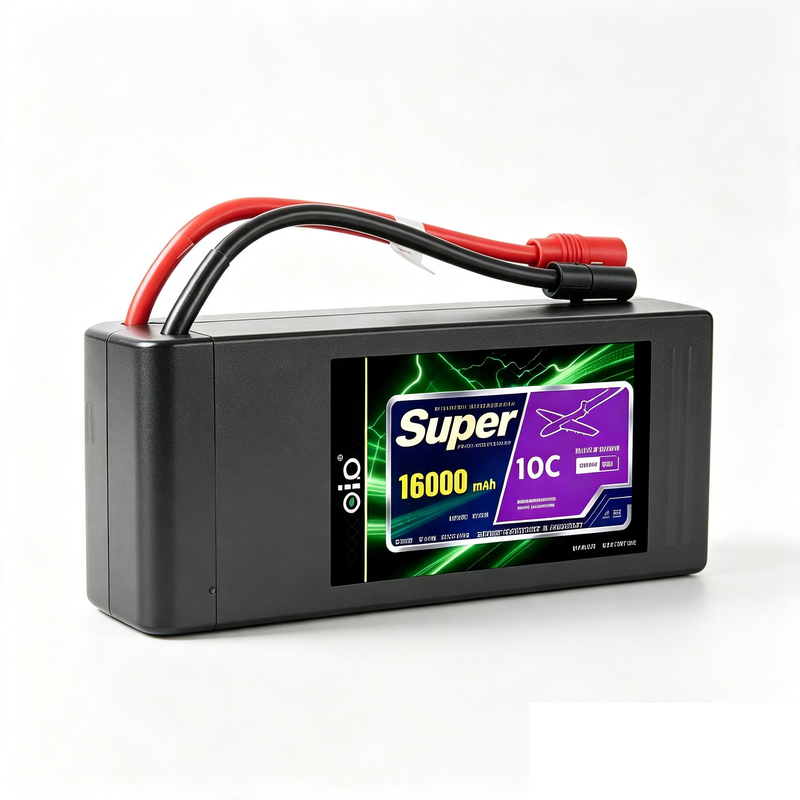

OID 16000mAh 22.8V 15C High Voltage Drone Battery Model OID6477196-16000mAh-22.8V-15C

OID 16000mAh 22.8V 15C High Voltage Drone Battery Model OID6477196-16000mAh-22.8V-15C

  • Capacity
    16000mAh
  • Nominal Voltage
    22.8V
  • Discharge Rate
    15C
  • Internal Resistance
    ≤2.5mΩ
  • Operating Temperature
    -20℃~60℃
  • Dimensions
    180x76x38mm
  • Weight
    830g
  • Connector
    XT90
  • Place of Origin
    China
  • Brand Name
    OID
  • Certification
    UN38.3, MSDS
  • Model Number
    OID6477196-16000mAh-22.8V-15C
  • Minimum Order Quantity
    1pcs
  • Price
    Contact for Best Price
  • Packaging Details
    Export carton with foam protection
  • Delivery Time
    15-30 days
  • Payment Terms
    L/C,D/A,D/P,T/T,Western Union
  • Supply Ability
    100000pcs/month

OID 16000mAh 22.8V 15C High Voltage Drone Battery Model OID6477196-16000mAh-22.8V-15C

OID 16000mAh 22.8V 15C High Voltage Drone Battery

Experience unmatched power and reliability with the OID 16000mAh 22.8V 15C high voltage drone battery. Engineered for professional UAVs, this battery delivers ultra-low internal resistance, excellent low-temperature performance, and an impressive 15C continuous discharge rate for demanding applications.

Key Technical Specifications

Parameter Value
Model OID6477196-16000mAh-22.8V-15C
Capacity 16000mAh
Nominal Voltage 22.8V
Configuration 6S1P
Discharge Rate 15C
Max Continuous Discharge Current 240A
Internal Resistance ≤2.5mΩ
Operating Temperature -20℃ to 60℃
Dimensions 180 x 76 x 38mm
Weight 830g
Connector XT90

Core Advantages

  • Ultra-Low Internal Resistance: Provides higher power transfer efficiency and reduced heat generation, ensuring safer and more reliable flight.
  • Superb Low-Temperature Performance: Delivers stable power output even in freezing environments, making it ideal for winter operations and high-altitude UAV missions.
  • High 15C Discharge Rate: Supports intense current demands for heavy-lift drones and high-speed aerial photography, with minimal voltage sag.
  • High Voltage LiPo Technology: Increased energy density extends flight time without adding extra weight.
  • Rigorous Quality Control: Each battery undergoes strict testing to ensure consistent performance and long cycle life.

Safety and Application Instructions

This battery is certified to UN38.3 and MSDS standards. Please follow all safety guidelines:

  • Do not over-discharge or over-charge the battery.
  • Use a compatible LiPo balance charger.
  • Store in a dry, cool place away from flammable materials.
  • Inspect the battery regularly for damage or swelling.

Applications include professional drones, agricultural UAVs, aerial surveying, racing drones, and other high-performance unmanned vehicles.
