Cell Type21700
-
Configuration6S1P
-
Nominal Capacity5000mAh
-
Max Discharge Rate18C
-
Max Discharge Current90A
-
Operating Temperature-20°C To 60°C
-
Cycle Life≥500 Cycles
-
Internal Resistance≤15mΩ
-
Place of OriginChina
-
Brand NameOID
-
CertificationUN38.3, MSDS
-
Model NumberOID21700-5000mAh-21.6V-18C-0113
-
Minimum Order Quantity1pcs
-
PriceContact us for discounted pricing
-
Packaging DetailsStandard export carton packing
-
Delivery Time15 to 25 days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability100000 pieces per month

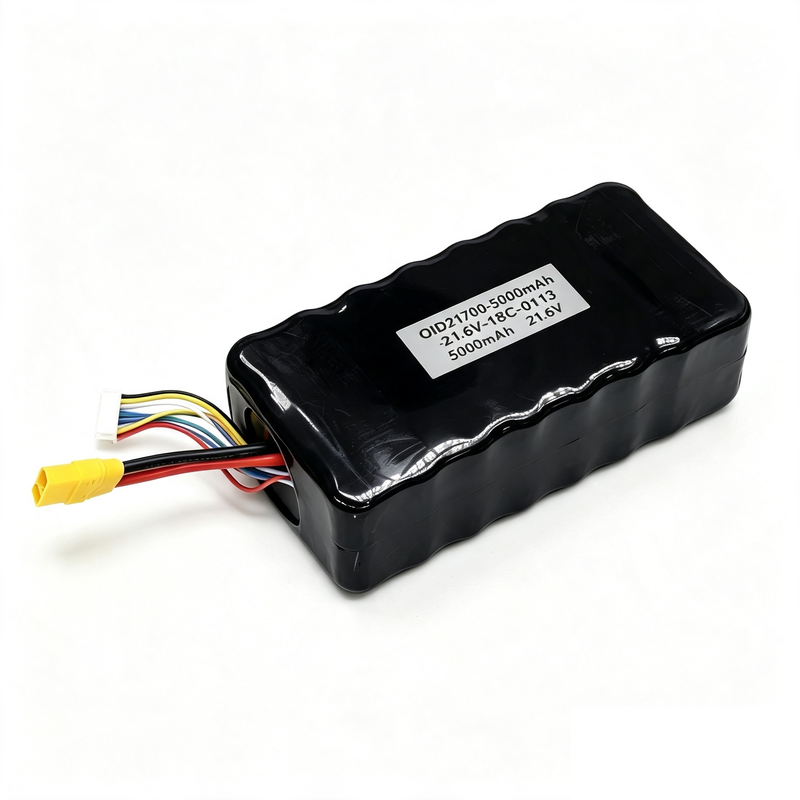

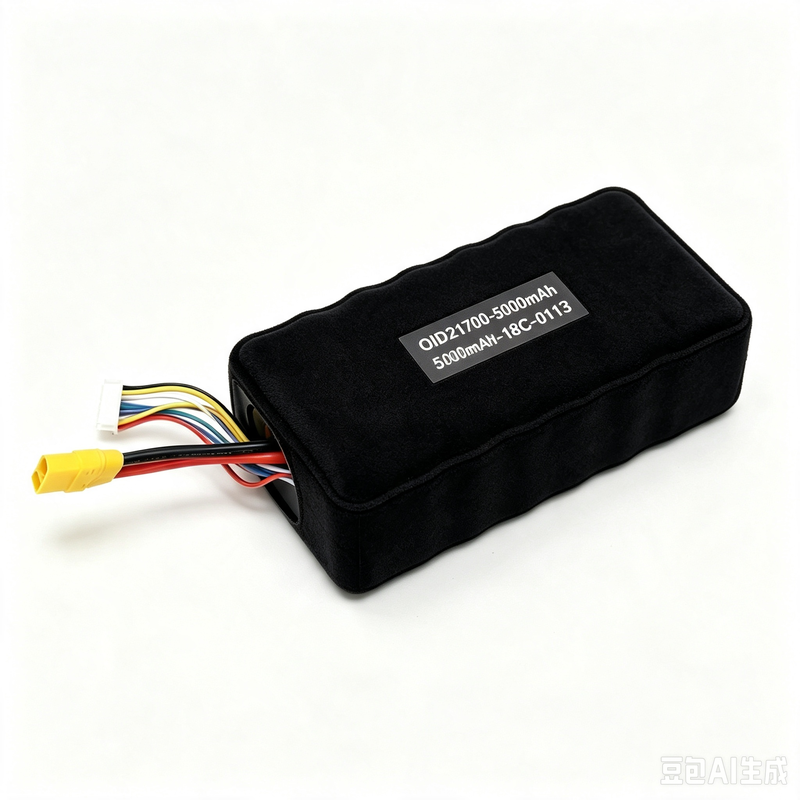

OID 21700 5000mAh 21.6V 18C 90A Drone Battery Pack
OID 21700 5000mAh 21.6V 18C Drone Battery Pack for UAV
The OID 21700 5000mAh 21.6V 18C drone battery pack is a high-performance lithium-ion rechargeable battery designed for drones, UAVs and other high-power applications. With super-high 18C discharge rate, low internal resistance and excellent low-temperature performance, this 6S 21.6V battery pack delivers reliable power in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | OID21700-5000mAh-21.6V-18C-0113 |
| Cell Type | 21700 Li-ion |
| Nominal Voltage | 21.6V |
| Nominal Capacity | 5000mAh |
| Energy | 108Wh |
| Max Continuous Discharge Rate | 18C |
| Max Continuous Discharge Current | 90A |
| Charging Voltage | 25.2V |
| Cut-off Voltage | 16.5V |
| Cycle Life | ≥500 cycles |
| Operating Temperature (Charge) | 0°C to 45°C |
| Operating Temperature (Discharge) | -20°C to 60°C |
| Certification | UN38.3, MSDS |
Detailed Cell Parameters
| Item | Specification |
|---|---|
| Cell Dimension | 21 x 70 mm |
| Positive Electrode | NMC / High-rate type |
| Internal Resistance | ≤15mΩ |
| Low Temperature Discharge | Excellent at -20°C |
| Self Discharge Rate | ≤3% per month |
Applications
- Drone battery and UAV battery pack
- Agricultural drone spraying systems
- RC model and hobby high-power equipment
- Portable power station and emergency start power
Certifications and Safety
This drone battery pack complies with UN38.3 transport safety test and is accompanied by MSDS documentation. The low-IR design and built-in protection features ensure stable discharge and safe operation.
Manufacturer Information
Manufacturer: Shenzhen Jianheng Technology Co Ltd
Phone: 0086 137 2555 9416
Email: alan@liion-batt.com
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
Our products are sold all over the world, you can rest assured.
