Capacity15000mAh
-
Nominal Voltage21.6V
-
Max Discharge Rate18C
-
Max Continuous Current270A
-
Internal Resistance≤5mΩ
-
Operating Temperature-40°C To 60°C
-
Cycle Life≥500 Cycles
-
WeightApprox 800g
-
Place of OriginChina
-
Brand NameOID
-
CertificationUN38.3, MSDS
-
Model NumberOID21700-15000mAh-21.6V-18C-0113.pdf
-
Minimum Order Quantity1pcs
-
PriceContact us for best price
-
Packaging DetailsCarton packaging
-
Delivery Time15-20 days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability100000 pcs per month

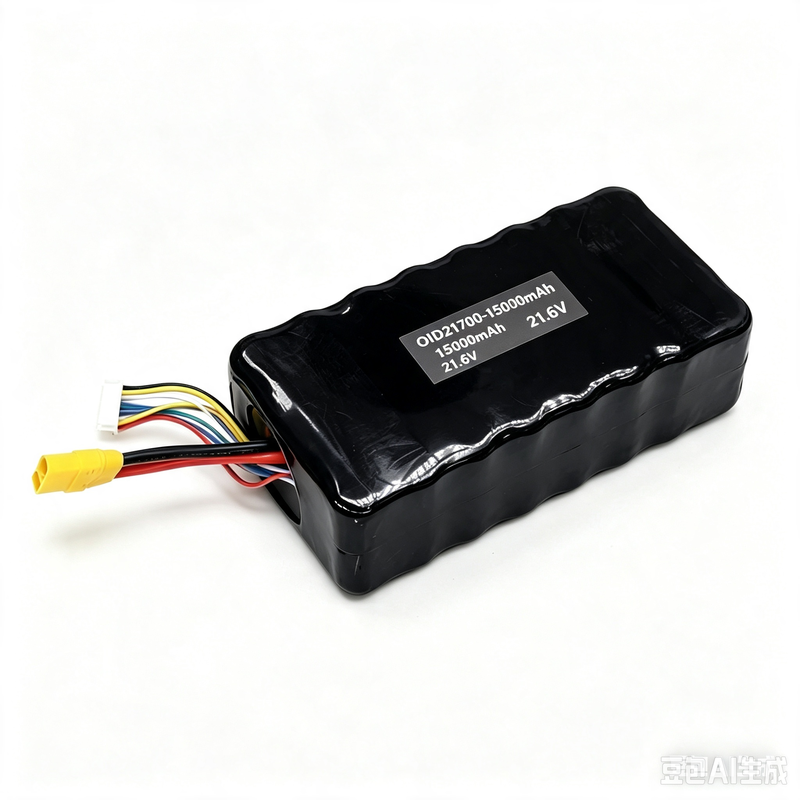

OID 21700 15000mAh 21.6V 18C 270A Drone Battery Pack
OID 21700 15000mAh 21.6V 18C Drone Battery Pack
Manufactured by Shenzhen Jianheng Technology Co Ltd (Jianheng), this OID 21700 rechargeable lithium-ion drone battery pack provides a nominal voltage of 21.6V and a high capacity of 15000mAh. Designed with ultra-high discharge rate up to 18C, low internal resistance and excellent low temperature performance, it is ideal for high-power UAV drone applications requiring stable and reliable energy output.
Technical Specifications
| Parameter | Value |
|---|---|
| Cell Type | 21700 |
| Nominal Voltage | 21.6V |
| Nominal Capacity | 15000mAh |
| Discharge Rate | 18C |
| Max Continuous Discharge Current | 270A |
| Internal Resistance | ≤5mΩ |
| Operating Temperature | -40°C to 60°C |
| Cycle Life | ≥500 cycles |
| Weight | Approx. 800g |
| Dimensions | Customized |
Test Parameters
| Test Item | Result |
|---|---|
| Discharge Capacity at 1C | ≥15000mAh |
| Discharge Capacity at 18C | ≥90% |
| Internal Resistance Test | ≤5mΩ |
| Low Temperature Discharge at -40°C | ≥80% |
| Overcharge Test | No fire, no explosion |
| Short Circuit Test | No fire, no explosion |
Key Features
- Ultra-high 18C discharge rate for high-power drone propulsion
- Excellent low temperature performance down to -40°C
- Low internal resistance for energy efficiency
- High energy density and long cycle life
- Safe and stable lithium-ion chemistry
- Customizable connectors and dimensions available
Safety and Application
The battery pack is certified to UN38.3 and MSDS standards. It is widely used in agricultural drones, industrial UAVs, racing drones and other high-rate applications. Please follow the manufacturer's instructions for proper charging, discharging and storage to ensure safety and optimal performance.
