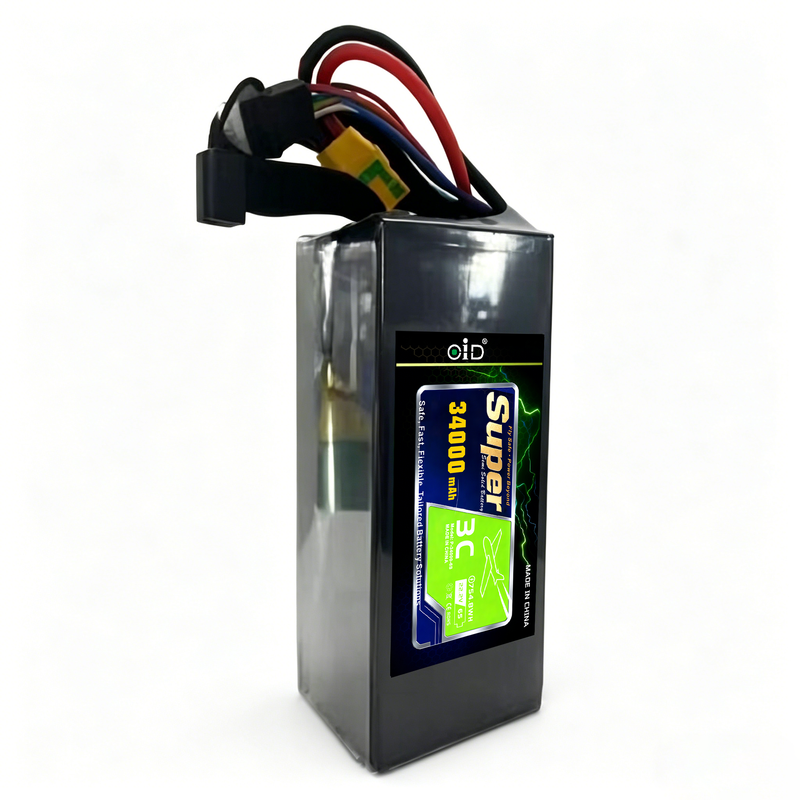

OID 34000mAh 22.2V 3C High Rate Semi-Solid Li-ion Drone Battery Pack - Shenzhen Jianheng
-
Nominal Capacity34000mAh
-
Nominal Voltage22.2V
-
Max Discharge Current3C
-
Min Capacity33600mAh
-
Charge Cut-off Voltage25.2V
-
Discharge Cut-off Voltage15.6V
-
Weight2950g
-
Operating Temperature-20 To 60 Degree Celsius
-
Place of OriginChina
-
Brand NameOID
-
CertificationUN38.3, MSDS
-
Model NumberOID0875173S-34000mAh-22.2V-3C-0101
-
Minimum Order Quantity1pcs
-
PriceContact for best price
-
Packaging DetailsStandard export carton with foam protection
-
Delivery Time15-20 working days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability100000 pieces per month
OID 34000mAh 22.2V 3C High Rate Semi-Solid Li-ion Drone Battery Pack - Shenzhen Jianheng
Engineered for demanding UAV and drone applications, the OID model 0875173S-34000mAh-22.2V-3C-0101 is a high-energy-density semi-solid lithium battery pack from Shenzhen Jianheng Technology Co Ltd. This advanced power source delivers exceptional 3C continuous discharge performance, ultra-low internal resistance, and reliable operation across extreme temperatures, ensuring your drone missions are powered with maximum efficiency and safety.
- High Rate 3C Discharge Capability: Delivers stable 3C constant current discharge, providing instantaneous high power for heavy-lift drones, RC models, and high-performance UAVs. Maintains voltage stability under heavy load.
- Wide Operating Temperature Range: Certified for charging from 0 to 45 degrees Celsius and discharging from -20 to 60 degrees Celsius. Retains 70% capacity at -20 degrees Celsius, making it ideal for cold-weather operations.
- Low Internal Resistance & Semi-Solid Technology: The semi-solid electrolyte design minimizes internal resistance, reduces heat generation, and enhances overall cycle life. This translates to longer flight times and safer operation.
- Robust Safety & Certification: Fully compliant with UN38.3 and MSDS certification standards. Passes rigorous safety tests including external short circuit, overcharge, forced discharge, and temperature cycling to prevent fire or explosion.
- Long Cycle Life & High Capacity Retention: With over 300 cycles at 3C discharge, the battery retains more than 80% of its initial capacity. Excellent charge retention ensures 90% residual capacity after 28 days of storage.
| Parameter | Specification |
|---|---|
| Nominal Capacity | 34000mAh at 0.5C discharge |
| Minimum Capacity | 33600mAh |
| Nominal Voltage | 22.2V |
| Combination Method | 6S2P |
| Max Discharge Current | 3C (up to 102A) |
| Standard Charge Current | 0.5C |
| Charge Cut-off Voltage | 25.2V |
| Discharge Cut-off Voltage | 15.6V |
| Cell Weight (Single) | 213.0g ± 5g |
| Pack Weight | 2950g ± 30g |
| Dimensions (Thickness x Width x Height) | 75mm ± 1mm x 95mm ± 2mm x 185mm ± 2mm |
| Operating Temperature (Charge) | 0 to 45 degrees Celsius |
| Operating Temperature (Discharge) | -20 to 60 degrees Celsius |
| Storage Temperature (≤1 month) | -20 to 45 degrees Celsius |
| Storage Temperature (≤6 months) | -20 to 35 degrees Celsius |
| Storage Humidity | ≤75% RH |
| Recommended Storage Voltage | 3.25V - 3.55V per cell |
| Item | Description | Dimension |
|---|---|---|
| Cell Thickness | Max (Test by 2000gf PPG) | 7.8mm |
| Cell Width | Max | 75mm |
| Cell Length | Max | 173mm |
| Tab Width (C1/C2) | Positive & Negative | 20mm ± 0.5mm |
| Top Sealing Width | 6.5mm ± 1mm | |
| Cathode Tab to Left Side | F1+ | 11mm ± 2.0mm |
| Anode Tab to Left Side | F2- | 43mm ± 2.0mm |
| Tab Thickness (Al to Ni) | Al to Ni Tab | 0.3mm ± 0.02mm |
| Tab Thickness (Ni-plated Cu) | Ni-plated Cu Tab | 0.2mm ± 0.02mm |
| Test Item | Test Condition | Performance Criteria |
|---|---|---|
| Discharge Performance (0.5C) | 25±3 degrees Celsius, 0.5C to 2.6V | ≥100% of nominal capacity |
| Discharge Performance (3C) | 25±3 degrees Celsius, 3C to 2.6V | ≥95% of nominal capacity |
| Discharge Performance (5C) | 25±3 degrees Celsius, 5C to 2.6V | ≥90% of nominal capacity |
| Cycle Life (RT) | 1C charge / 3C discharge, 300 cycles | ≥80% of initial capacity |
| Temperature Characteristic (60 degrees) | 0.5C discharge at 60 degrees | ≥98% of nominal capacity |
| Temperature Characteristic (-20 degrees) | 0.5C discharge at -20 degrees | ≥70% of nominal capacity |
| Charge Retention (28 days) | Storage at 25±3 degrees, 28 days | Residual ≥90%, Recovery ≥95% |
| External Short Circuit | 80±20 mΩ load at 55±5 degrees | No fire, no explosion |
| Overcharge Protection | 3C charge to 4.6V, hold ≥7h | No fire, no explosion |
| Temperature Cycling | -40 to 75 degrees, 10 cycles | No leakage, no fire, no explosion |
This battery pack is designed with multiple safety protections including overcharge, over-discharge, short-circuit, and temperature protection. Strictly follow the handling warnings: do not disassemble, short-circuit, expose to fire, immerse in water, or use with non-specified chargers. Always keep the battery away from children and store in a cool, dry place with a 30-60% charge state for long-term storage.
Shenzhen Jianheng Technology Co Ltd offers extensive experience in customizing battery solutions for UAVs, RC models, and portable devices. We can adjust capacity, voltage, dimensions, and protection circuits to meet your specific project requirements. Contact our technical team for detailed consultation and sample testing.
