Highlight
5000mAh Drone Battery
,75C High Rate LiPo Battery
,3.7V UAV Battery
-
Typical Capacity5.0Ah
-
Nominal Voltage3.7V
-
Max Discharge Current375A (75C)
-
Internal Impedance≤2.5mOhm
-
Cycle Life≥300 Cycles
-
Operating Temperature (Discharge)-20C To 55C
-
Weight115g
-
Cell Dimensions (T X W X H)≤7.5x49.0x146.0mm
-
Place of OriginChina
-
Brand NameOID
-
CertificationUN38.3, MSDS
-
Model NumberOID0748145-5000mAh-3.7V-75C- 0102
-
Minimum Order Quantity1pcs
-
PriceContact for best price
-
Packaging DetailsStandard export carton or customized packaging
-
Delivery Time7-15 working days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability100000 pieces per month

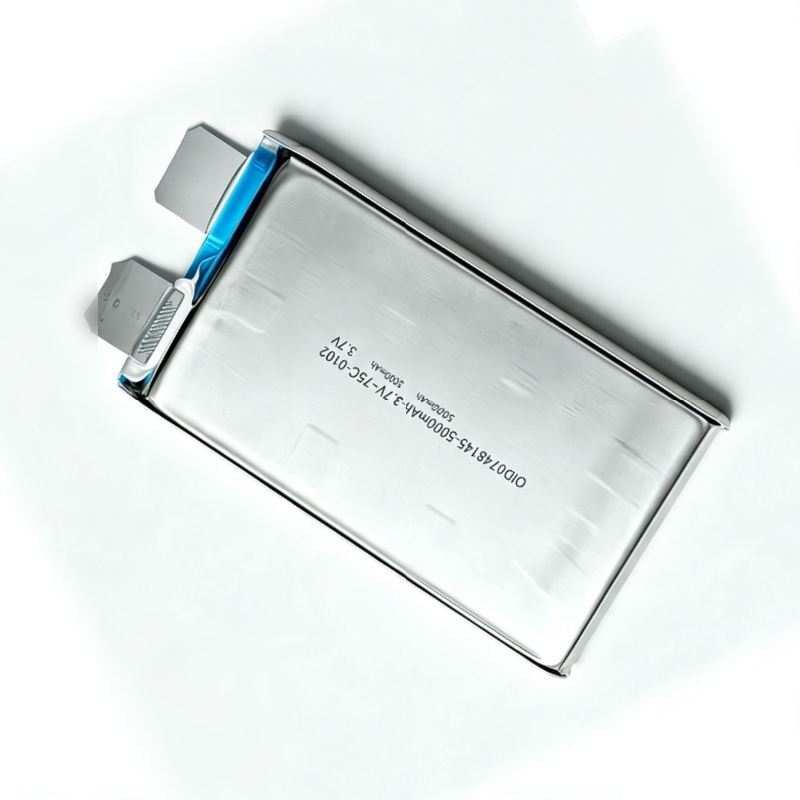

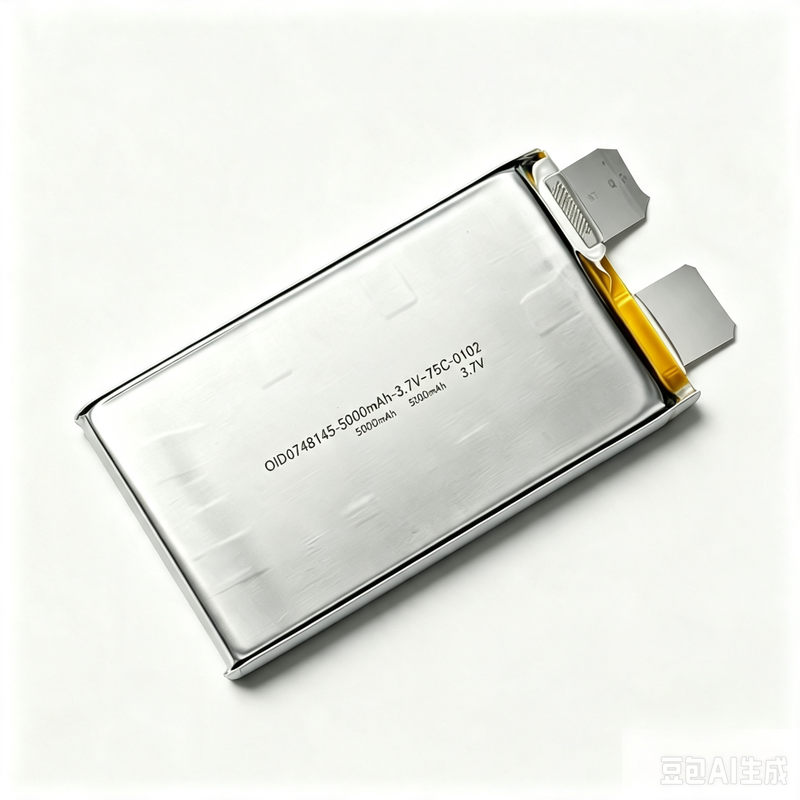

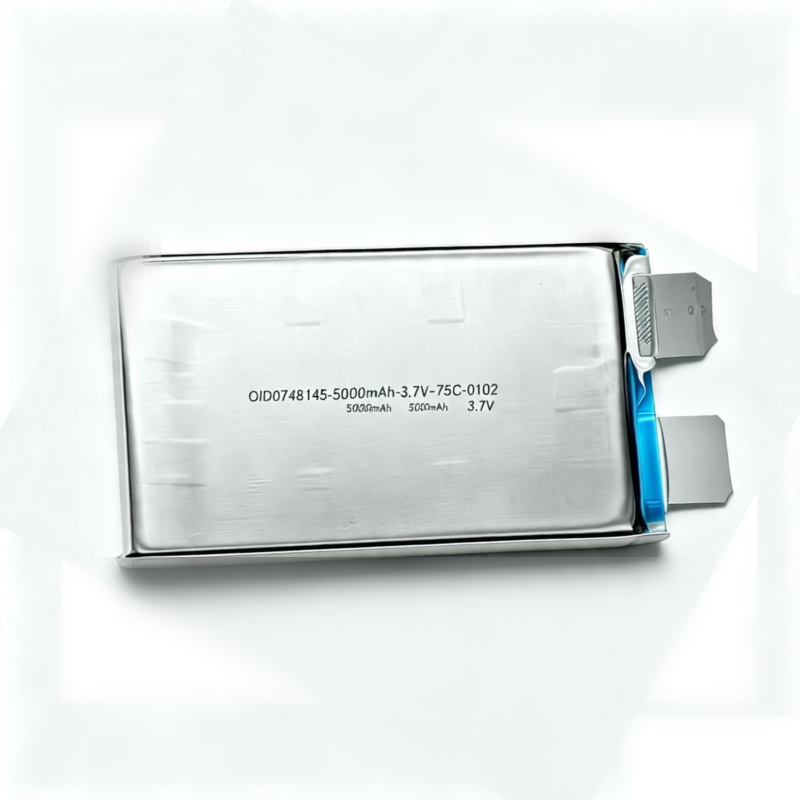

Jianheng 5000mAh 3.7V 75C High Rate LiPo Drone Battery for UAVs
This lithium-ion polymer rechargeable battery is engineered specifically for high-performance drones and UAVs, delivering exceptional power output with ultra-low internal resistance. The OID0748145-5000mAh-3.7V-75C-0102 model combines a high 75C continuous discharge capability with a compact, lightweight form factor, ensuring your drone achieves maximum thrust and extended flight time under demanding conditions. Its superior low-temperature discharge performance guarantees reliable operation even in cold environments, making it the ideal choice for professional aerial photography, racing drones, and industrial inspection applications.
| Parameter | Specification |
|---|---|
| Typical Capacity | 5.0Ah (5000mAh) |
| Minimum Capacity | 4.8Ah (0.2C discharge to 3.0V at 25C) |
| Nominal Voltage | 3.7V |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charge Current | 2.5A (0.5C) at 25C |
| Maximum Charge Current | 2.5A (0.5C) at 0~20C; 10A (2.0C) at 20~45C |
| Standard Discharge Current | 2.5A (0.5C) |
| Maximum Discharge Current | 375A (75C) for <= 20 seconds |
| Internal Impedance | ≤ 2.5mOhm (AC 1kHz) |
| Shipment Voltage | 3.7~3.9V |
| Weight | Approx. 115g |
| Thickness (T) | ≤ 7.5mm |
| Width (W) | ≤ 49.0mm |
| Height (Length) (H) | ≤ 146.0mm |
| Tab Center Distance (L1) | 23 ± 2mm |
| Tab Length (L2) | 10 ± 2mm |
| Tab Width (L3) | 16 ± 0.2mm |
| Test Item | Criterion |
|---|---|
| Internal Impedance | ≤ 2.5mOhm (after standard charge) |
| Initial Capacity | ≥ 4.8Ah (standard charge and discharge) |
| Discharge at 55C | ≥ 90% of rated capacity |
| Discharge at 0C | ≥ 65% of rated capacity |
| Discharge at -10C | ≥ 50% of rated capacity |
| Cycle Life | ≥ 300 cycles to 80% of rated capacity |
| Shelf Life (28 days at 25C) | Retention ≥80%, Recovery ≥85% |
| Shelf Life (7 days at 55C) | Retention ≥75%, Recovery ≥80% |
| Vibration Test | Voltage change ≤0.3V, Resistance change ≤20%, no leakage |
| Drop Test | No explosion, fire, or leakage (1m drop) |
Use a lithium-ion dedicated charger. Standard charge at 2.5A (0.5C) under 25C. The maximum charge current is 10A (2.0C) only when the ambient temperature is between 20C and 45C. Do not exceed the cut-off voltage of 4.2V.
Yes. This battery is designed for low-temperature applications. It maintains at least 65% of its capacity at 0C and 50% at -10C when discharged at 0.5C. However, charging should not be performed below 0C.
The maximum discharge current is 375A (75C) for up to 20 seconds. For continuous standard discharge, use 2.5A (0.5C). Exceeding the recommended current or duration may damage the cell and void the warranty.
For storage longer than 3 months, keep the battery in a cool, dry place between -20C and +35C with 65±20% RH. For optimal 1-year storage, conditions of -20C to +25C are recommended. Perform an activation cycle (charge at 0.2C to 4.2V, discharge to 3.0V, then charge to 3.7V) every 3 months to maintain performance.
This model complies with UN38.3 transportation safety standards and includes MSDS documentation. It has passed rigorous vibration and drop tests without explosion, fire, or leakage.
Under standard charge and discharge conditions, the battery retains more than 80% of its rated capacity after 300 cycles. Proper usage and storage will maximize its lifespan.
Immediately remove the battery from the device or charger and stop using it. Do not attempt to disassemble or puncture the cell. Contact your supplier for proper disposal or replacement.
Do not mix this battery with other lithium-ion or different polymer battery models. Always use identical batteries in series or parallel configurations to avoid imbalance and potential hazards.
| Storage Duration | Recommended Environment |
|---|---|
| < 3 months | -20C ~ +45C, 65±20% RH |
| > 6 months | -20C ~ +35C, 65±20% RH |
| Optimal (1 year) | -20C ~ +25C, 65±20% RH |
The warranty period is 12 months from the date of shipment. Shenzhen Jianheng Technology Co Ltd (Jianheng) warrants to replace cells that are proven to have manufacturing defects, provided the cells have not been abused or misused. For technical support or order inquiries, contact our sales team at alan@liion-batt.com or call +86 137 2555 9416. Our headquarters is located at 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China.
- Do not immerse the battery in water or seawater. Store in a cool, dry place.
- Do not dispose of or leave the battery near fire, heaters, or other heat sources.
- Do not reverse the positive and negative terminals or short-circuit them.
- Do not solder directly onto the battery or pierce it with nails or sharp objects.
- Do not disassemble the cell under any circumstances. Replacement must be performed by the supplier.
- Keep the battery away from babies and children.
- If electrolyte leaks and enters the eyes, rinse with clean running water and seek immediate medical attention.
- For disposal, tape the terminals with insulating tape to prevent fire or explosion.
Our products are sold all over the world, you can rest assured.
