Nominal Capacity30000mAh
-
Nominal Voltage3.7V
-
Continuous Discharge Rate5C
-
Pulse Discharge Rate10C
-
AC Internal Resistance≤2.0mΩ
-
Energy Density Gravimetric≥360Wh/kg
-
Energy Density Volumetric≥845Wh/L
-
Cycle Life≥300 Cycles To 80%
-
Place of OriginChina
-
Brand NameOID
-
CertificationUN38.3, MSDS
-
Model NumberOID1175175-30000mAh-3.7V-10C-0101
-
Minimum Order Quantity1pcs
-
PriceContact for pricing
-
Packaging DetailsStandard export carton with foam inserts
-
Delivery Time3-7 working days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability100000 pieces per month

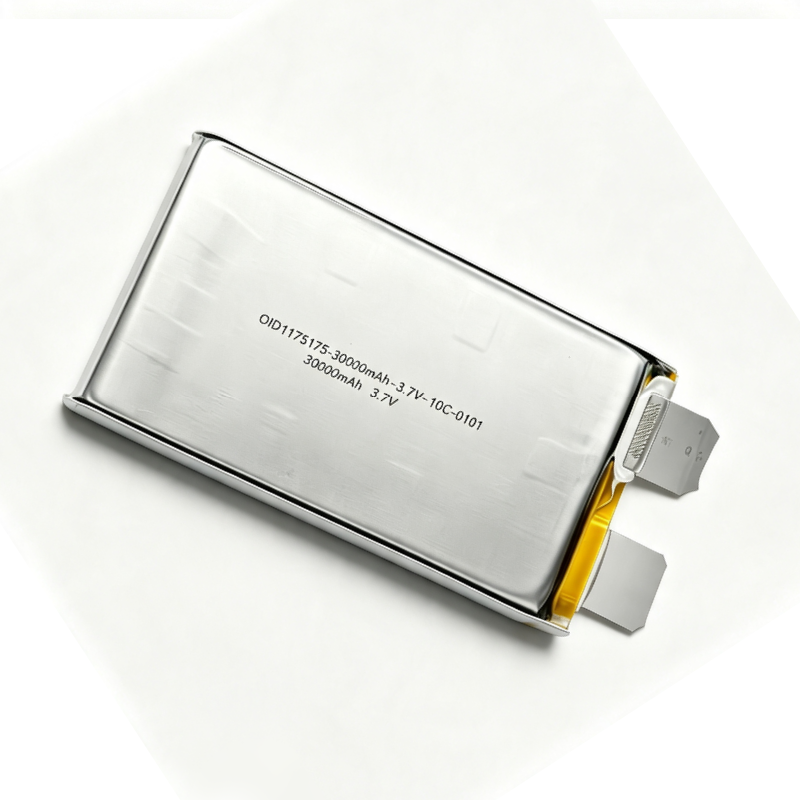

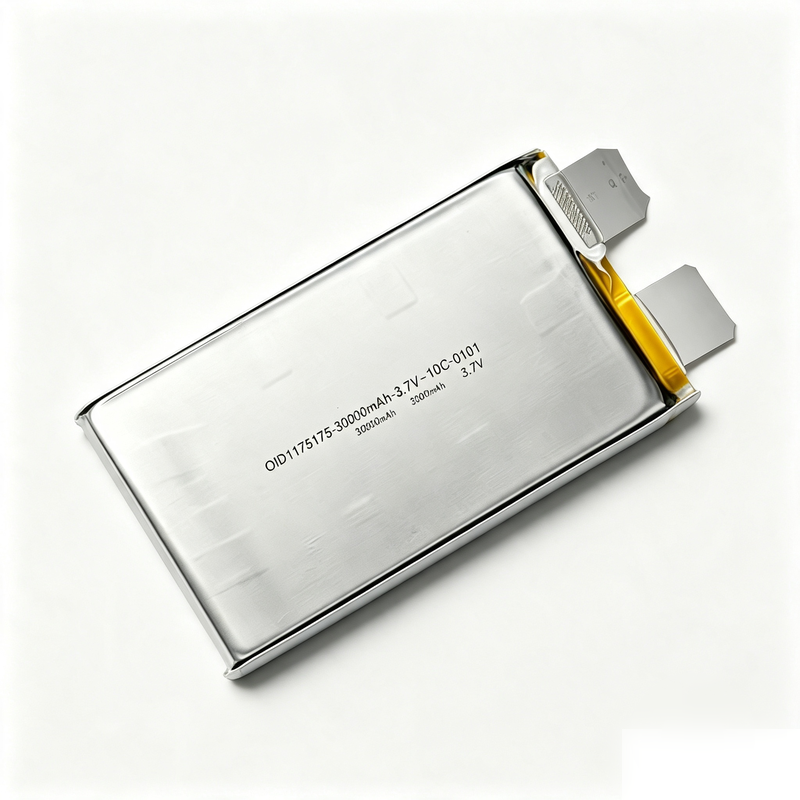

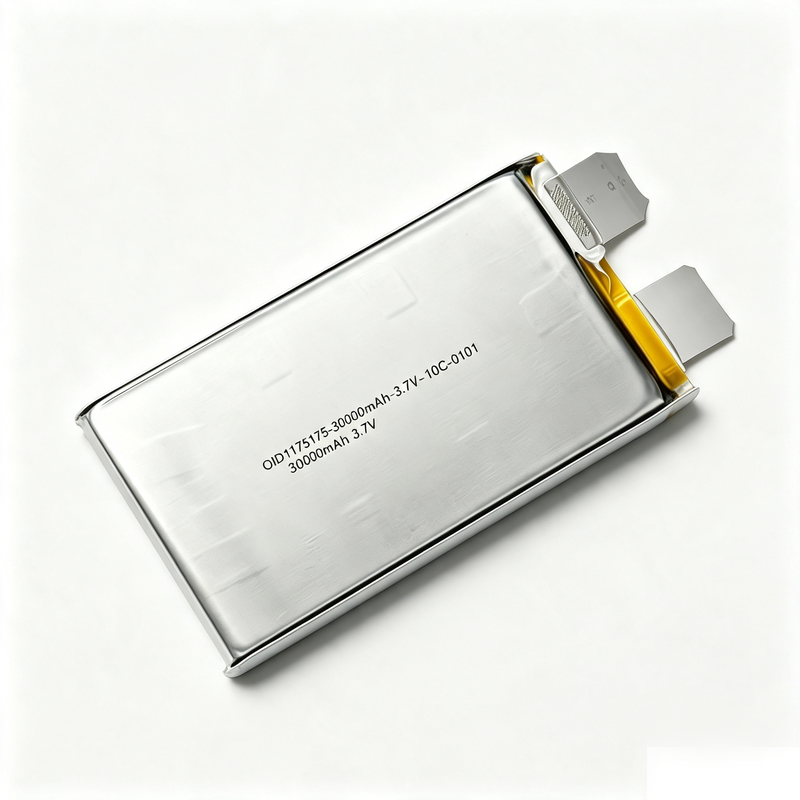

OID 30000mAh 10C 3.7V High Energy Density Drone Battery Pack
Engineered for professional drones and high-performance UAVs, the OID1175175-30000mAh-3.7V-10C-0101 lithium polymer battery delivers exceptional power density and reliability. With a gravimetric energy density exceeding 360Wh/kg and volumetric energy density over 845Wh/L, this battery provides extended flight times without adding excessive weight. Designed and manufactured by Shenzhen Jianheng Technology Co Ltd, this cell meets the most demanding requirements of the drone industry.
- Ultra-High Energy Density >360Wh/kg – Maximizes flight duration and payload capacity for professional UAV applications.
- High Rate Discharge Capability – Supports 5C continuous discharge (150A) and 10C pulse discharge (300A) for aggressive maneuvering and instant power bursts.
- Ultra-Low Internal Resistance ≤2.0mΩ – Ensures efficient power delivery, reduced heat generation, and extended cycle life.
- Wide Operating Temperature Range – Reliable discharge from -20℃ to 60℃, with stable performance in cold environments (70% capacity at -10℃).
- Extended Cycle Life – Delivers over 300 cycles at standard charge/discharge, maintaining 80% of original capacity for long-term durability.
| Parameter | Specification |
|---|---|
| Nominal Capacity | 30000mAh (0.2C discharge) |
| Minimum Capacity | 29000mAh (0.2C discharge) |
| Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.25V |
| Standard Charge Current | 0.2C (6A) CC/CV to 4.25V, cut-off ≤0.03C |
| Fast Charge Current | 0.5C (15A) CC/CV to 4.25V, cut-off ≤0.03C |
| Standard Discharge Current | 0.2C (15A) |
| Continuous Discharge Current | 5C (150A) |
| Pulse Discharge Current | 10C (300A) ≤3 seconds |
| Cut-off Voltage | 2.5V |
| AC Internal Resistance | ≤2.0mΩ |
| Gravimetric Energy Density | ≥360Wh/kg (0.2C/0.2C) |
| Volumetric Energy Density | ≥845Wh/L (0.2C/0.2C) |
| Charge Temperature Range | 0 to 45℃ |
| Discharge Temperature Range | -20 to 60℃ |
| Storage Temperature | 0 to 35℃ |
| Storage Humidity | ≤75% RH |
| Storage Voltage | 3.75V to 3.9V (40% to 50% state of charge) |
| Shipping Voltage | 3.5V to 3.7V |
| Cycle Life | ≥300 cycles to 80% capacity (0.2C charge/discharge) |
| Item | Dimension |
|---|---|
| Thickness (T) | ≤11.0mm |
| Width (W) | ≤75.0mm |
| Length (L) | ≤175.0mm |
| Tab Center Distance | 35.0±1.0mm |
| Tab Edge Distance | 7.0±1.0mm |
| Tab Exposed Length | 14±1.0mm |
| Positive Tab Thickness | 0.3±0.03mm |
| Negative Tab Thickness | 0.2±0.02mm |
| Approximate Weight | ~308g |
| Parameter | Performance | Test Condition |
|---|---|---|
| C-rate Performance (0.2C) | ≥98% capacity | Standard charge, 0.2C discharge |
| C-rate Performance (3C) | ≥98% capacity | Standard charge, 3C discharge |
| C-rate Performance (5C) | ≥90% capacity | Standard charge, 5C discharge |
| Capacity at 40℃ | ≥90% capacity | Standard charge, 2h soak, standard discharge |
| Capacity at 25℃ | 100% capacity (reference) | Standard charge, 2h soak, standard discharge |
| Capacity at 0℃ | ≥85% capacity | Standard charge, 2h soak, standard discharge |
| Capacity at -10℃ | ≥70% capacity | Standard charge, 2h soak, standard discharge |
| Cycle Life (standard) | ≥300 cycles to 80% | 0.2C CC/CV charge, 0.2C discharge, 25℃ |
| Self-discharge (28 days) | ≥85% residual capacity | Standard charge, storage at 25±3℃ |
| High Temperature Performance | ≥98% capacity | 55±2℃, 4h soak, 0.2C discharge |
| Test Item | Requirement |
|---|---|
| Vibration Test | No fire, no explosion, no leakage |
| Drop Test | No fire, no explosion, no leakage |
This battery is fully certified with UN38.3 and MSDS documentation, ensuring safe transport and global compliance for air and ground shipping. Manufactured under strict quality control systems to meet international safety standards.
- Use only a dedicated charger designed for LiPo batteries with correct voltage and current settings.
- Do not expose to open flames, temperatures above 60℃, or direct sunlight for prolonged periods.
- Avoid puncturing, crushing, or disassembling the battery.
- Do not mix with other battery types or brands in series or parallel connections.
- If swelling, deformation, or leakage occurs, stop use immediately and isolate the battery.
- Store at recommended voltage (3.75-3.9V) in a cool, dry place for extended storage periods.
Supplied by Shenzhen Jianheng Technology Co Ltd, this high-performance drone battery is available with a minimum order quantity of just 1 piece, making it suitable for prototyping and large-scale production alike. Our supply capacity exceeds 100,000 units per month, ensuring consistent availability for your manufacturing schedules. For competitive pricing and customization options, please contact our sales team.
Contact Information:
Shenzhen Jianheng Technology Co Ltd
20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
Tel: 0086 137 2555 9416
Email: alan@liion-batt.com
Request a quote today and experience the power of advanced lithium polymer technology for your drone and UAV applications.
Our products are sold all over the world, you can rest assured.
