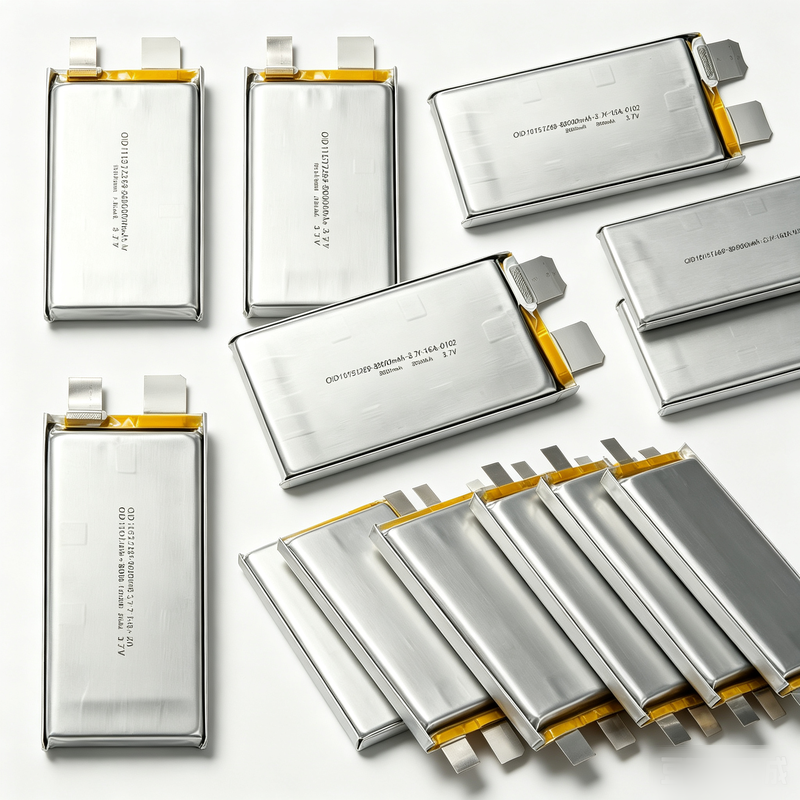

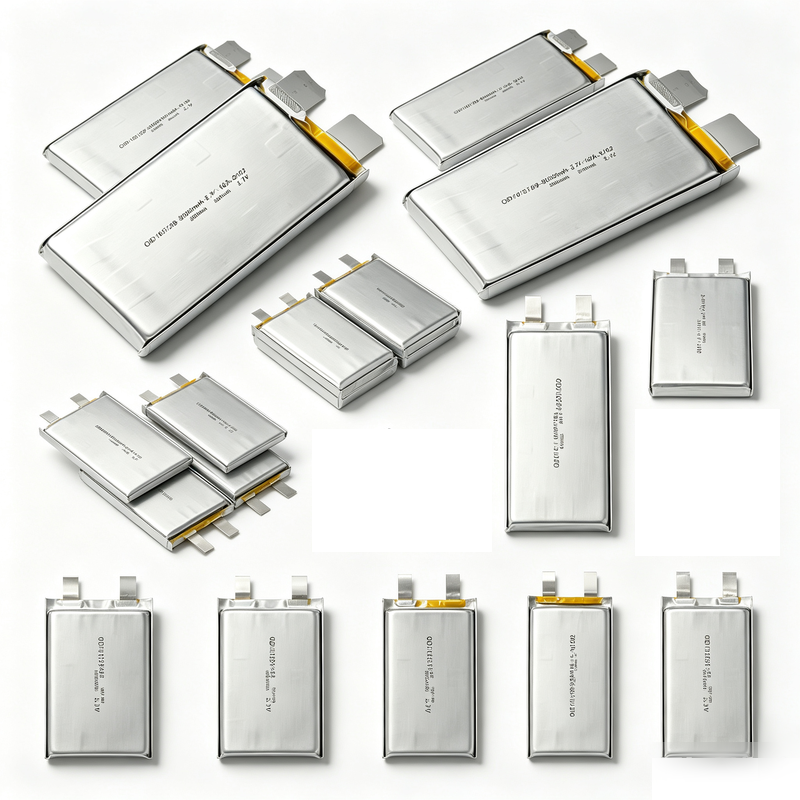

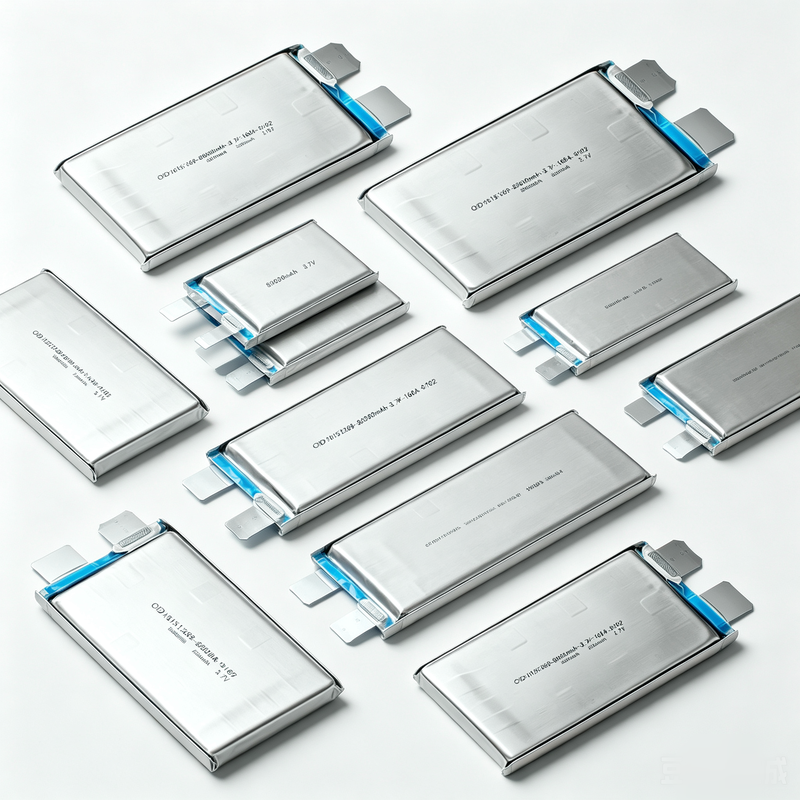

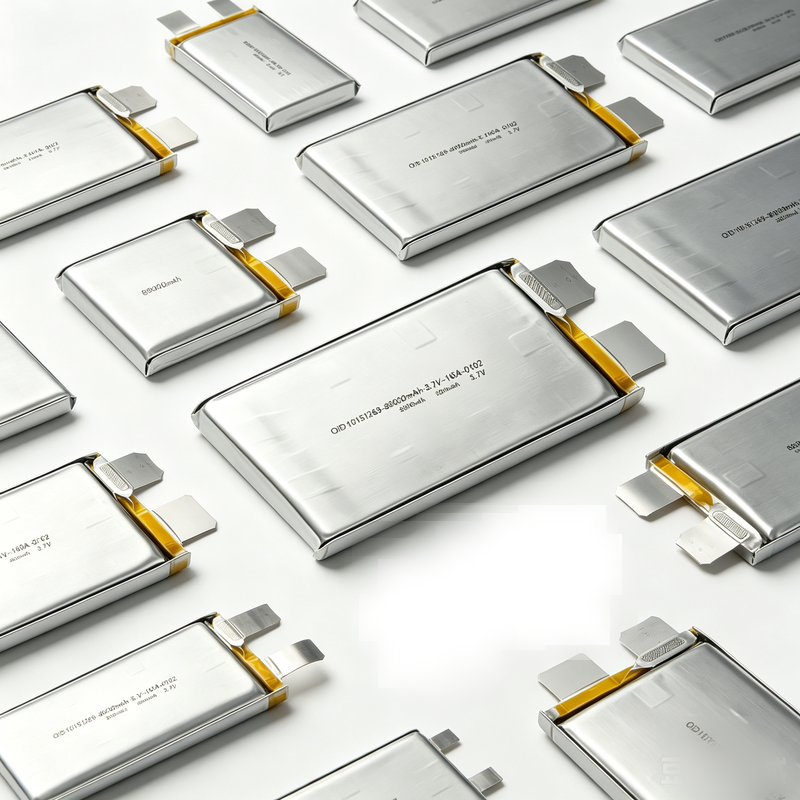

OID 80Ah 3.7V 160A High Rate Drone Battery Cell - 90150267

Introducing the OID 80Ah high rate lithium polymer battery cell, model OID10151269-80000mAh-3.7V-160A-0102, engineered by Shenzhen Jianheng Technology Co Ltd for demanding drone and UAV applications. This cell delivers exceptional power density and ultra-low internal resistance for reliable high-current discharge up to 160A.

• High capacity: 80Ah (typical) with 79Ah minimum
• Maximum continuous discharge current: 160A (2C)
• Ultra-low internal resistance: <2 mOhm (AC 1KHz)
• High energy density >400Wh/kg
• Wide operating temperature: -20°C to 55°C discharge
• Excellent cycle life: >200 cycles to 80% capacity retention
• UN38.3 and MSDS certified for safe transport

A: Standard charge at 16A (0.2C) with CC-CV mode to 4.25V cutoff, then terminate at 0.03C. Ambient temperature should be 25 ± 2°C. For faster charging, up to 40A (0.5C) is allowed at 20-45°C.

A: For storage exceeding 6 months, keep at -20°C to +35°C with 65±20% RH. For 1-year storage, recommended at -20°C to +25°C. Activate every 3 months: charge at 0.2C to 4.25V, rest 10 min, discharge at 0.2C to 2.5V, rest 10 min, then charge at 0.2C to 3.85V.

A: This cell is certified with UN38.3 for transportation safety and MSDS documentation. It has passed rigorous vibration and drop tests without leakage, explosion, or fire.

A: Yes. It supports discharge from -20°C to 55°C. At -20°C, it retains over 60% capacity; at 55°C, over 90%. Charging is only recommended between 0°C and 45°C.

A: The warranty period is 6 months from the date of shipment. Shenzhen Jianheng Technology Co Ltd will replace cells with proven manufacturing defects, excluding damage from misuse or abuse.

A: The maximum continuous discharge current is 160A (2C). This high-rate capability makes it ideal for drone and UAV applications requiring bursts of power while maintaining low internal resistance (<2 mOhm).

A: Do not short-circuit, immerse in water, expose to high heat, or disassemble. Keep away from metal objects and children. If leakage occurs and electrolyte contacts eyes, rinse with clean water and seek immediate medical attention.

A: The supply ability is 100,000 units per month. The minimum order quantity (MOQ) is 1 piece for sample or small batch orders.

A: Terminals must be taped to prevent short circuits. Ship in cool, dry conditions away from metal objects. Follow UN38.3 transport regulations for lithium batteries.

A: With ultra-low internal resistance, high energy density >400Wh/kg, and 160A discharge capability, this cell provides reliable high-power output for extended flight times and demanding UAV missions.

For pricing and customization inquiries, please contact Shenzhen Jianheng Technology Co Ltd directly.
