Typical Capacity60.5Ah
-
Minimum Capacity59.5Ah
-
Nominal Voltage3.7V
-
Max Discharge Current180A (3C)
-
Internal Impedance<2mΩ
-
Energy Density>400Wh/kg
-
Cycle Life≥300 Cycles To 80%
-
Operating Temperature Discharge-20°C ~ 55°C
-
Place of OriginChina
-
Brand NameOID
-
CertificationUN38.3, MSDS
-
Model NumberOID11122222-60000mAh-3.7V-3C-0102
-
Minimum Order Quantity1pcs
-
PriceContact for best price
-
Packaging DetailsStandard export carton with individual cell insulation
-
Delivery Time15-20 working days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability100000 units per month
OID 60000mAh 3.7V 3C High-Rate Drone Battery Pack - Jianheng

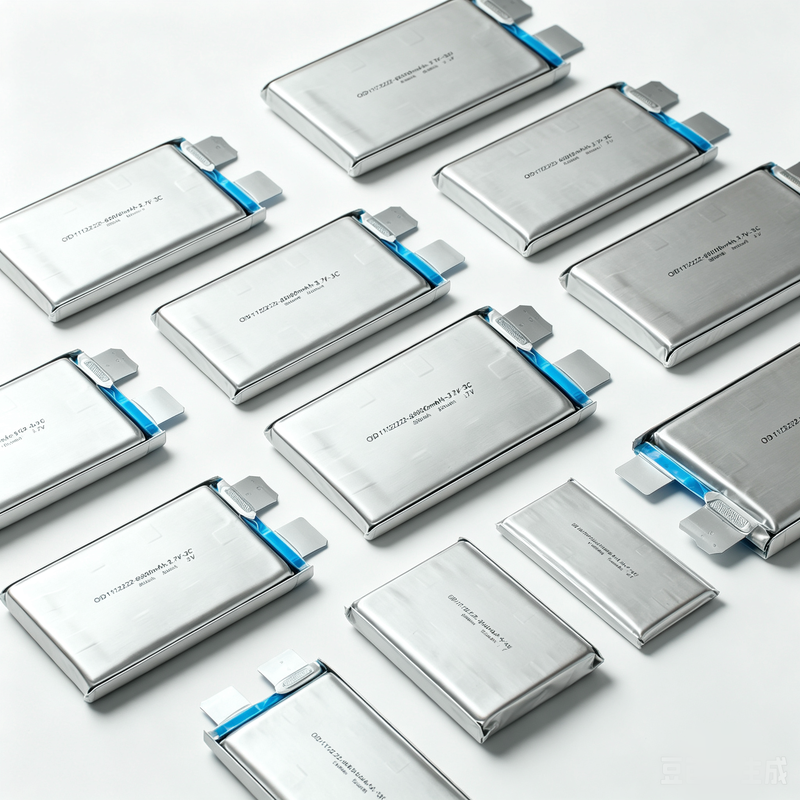

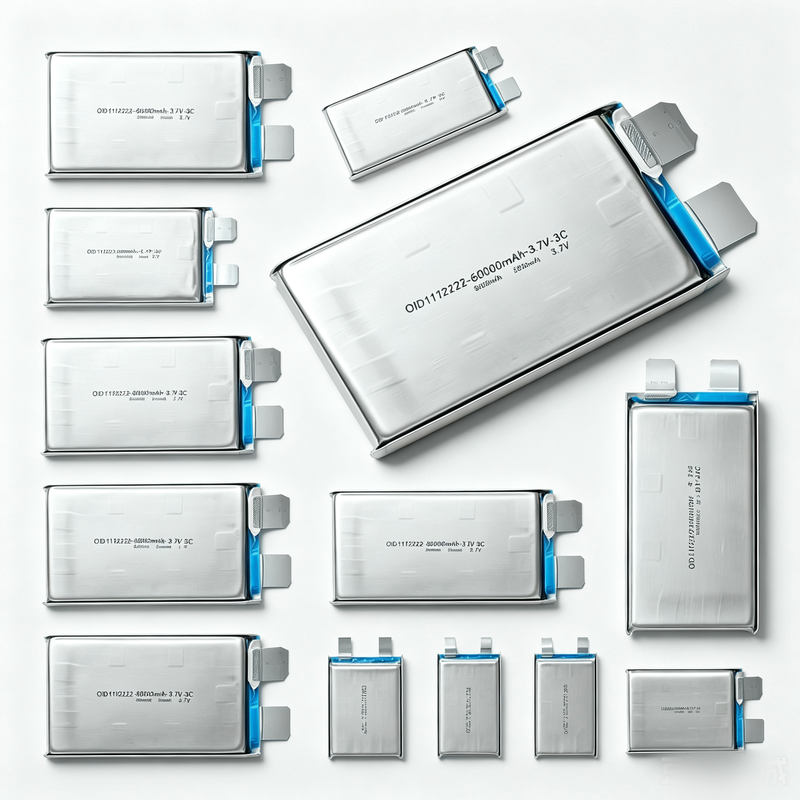

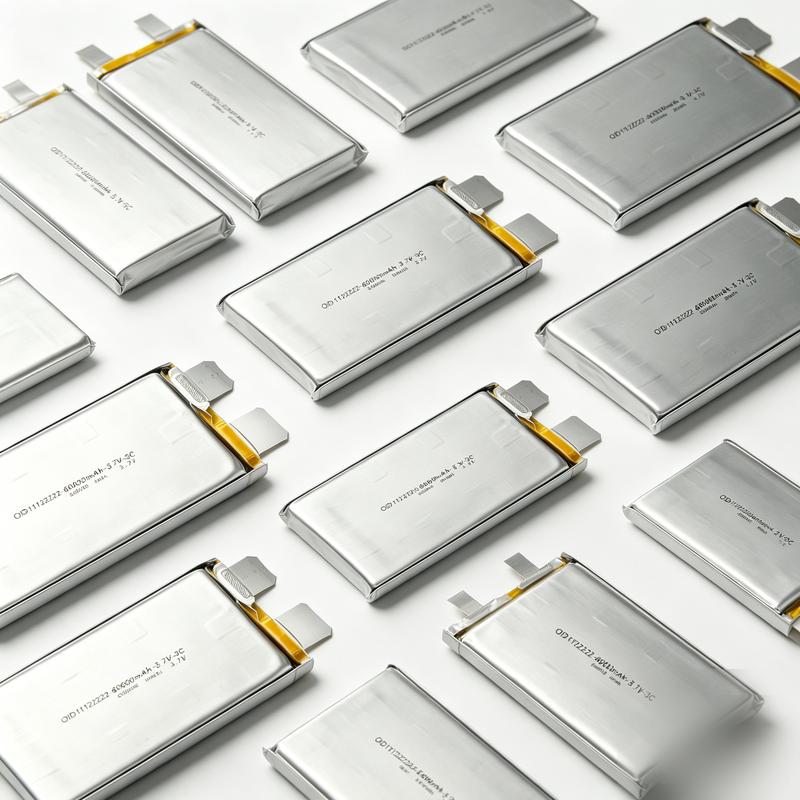

OID 60000mAh 3.7V 3C High-Rate LiPo Drone Battery Pack
\nDesigned and manufactured by Shenzhen Jianheng Technology Co Ltd, the OID series high-rate lithium polymer battery pack delivers exceptional power density and reliability for demanding drone and UAV applications. With a typical capacity of 60.5Ah (minimum 59.5Ah) and a maximum continuous discharge current of 180A (3C), this cell is engineered for long-endurance flights and high-thrust maneuvers. The ultra-low internal resistance (<2mΩ) ensures minimal voltage sag and heat generation, while the energy density exceeds 400Wh/kg, setting a new standard for lightweight aerial power systems.
\nKey Specifications
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n| Parameter | Value |
|---|---|
| Model Number | OID11122222-60000mAh-3.7V-3C-0102 |
| Typical Capacity | 60.5Ah (60500mAh) |
| Minimum Capacity | 59.5Ah (59500mAh) |
| Nominal Voltage | 3.7V |
| Charge End Voltage | 4.25V |
| Discharge End Voltage | 2.5V |
| Standard Charge Current | 12A (0.2C) |
| Maximum Charge Current | 30A (0.5C) @ 20~45°C |
| Standard Discharge Current | 12A (0.2C) |
| Maximum Discharge Current | 180A (3C) |
| Internal Impedance (AC 1kHz) | <2mΩ |
| Energy Density | >400Wh/kg |
| Weight | Approx. 640g |
| Dimensions (T×W×L) | ≤11.2×122×222 mm |
| Tab Width (Positive/Negative) | 30±0.1mm each |
| Tab Pitch | 55±1.0mm |
| Operating Temperature (Charge) | 0°C ~ 45°C |
| Operating Temperature (Discharge) | -20°C ~ 55°C |
| Shipping Voltage | 3.7 ~ 3.9V |
Electrochemical Performance
\n\n\n\n\n\n\n\n\n\n| Test Item | Standard | Test Condition |
|---|---|---|
| Initial Capacity | ≥59.5Ah | Standard charge + standard discharge at 25±2°C |
| Temperature Characteristics (55°C) | ≥90% of rated capacity | Standard charge, rest 2h at 55°C, discharge 12A to 2.5V |
| Temperature Characteristics (20°C) | ≥95% of rated capacity | Standard charge, rest 2h at 20°C, discharge 12A to 2.5V |
| Temperature Characteristics (-20°C) | ≥60% of rated capacity | Standard charge, rest 2h at -20°C, discharge 12A to 2.5V |
| Cycle Life (25±3°C) | ≥300 cycles to 80% initial capacity | 0.2C CC-CV charge to 4.25V, 0.03C cut-off; 0.2C discharge to 3.3V cut-off |
| Shelf Life (28 days at 25°C) | Retention ≥90%, Recovery ≥95% | Standard charge, store 28 days at 25°C, then standard discharge; recharge and discharge again |
| Shelf Life (7 days at 55°C) | Retention ≥75%, Recovery ≥80% | Standard charge, store 7 days at 55°C, then standard discharge; recharge and discharge again |
Safety & Environmental Compliance
\n\n\n\n\n| Test | Requirement | Method |
|---|---|---|
| Vibration Test | No leakage, no explosion, no fire | Amplitude 0.8mm, 10~55Hz sweep 1Hz/min, X/Y/Z axes, 90~100min each |
| Drop Test | No explosion, no fire | 1.0m drop onto concrete with p-tile, X/Y/Z directions, 50% charge state |
Key Features & Advantages
\n- \n
- Ultra-high energy density exceeding 400Wh/kg for extended flight time and reduced payload \n
- Ultra-low internal resistance (<2mΩ) enabling high-efficiency power delivery and minimal heat loss \n
- High-rate discharge capability up to 3C (180A) for aggressive throttle response and heavy-lift operations \n
- Wide operating temperature range from -20°C to 55°C for all-weather deployment \n
- Robust cycle life with ≥300 cycles retaining 80% capacity, reducing total cost of ownership \n
- Excellent shelf life with ≥90% capacity retention after 28 days at room temperature \n
- Complies with UN38.3 and MSDS for safe air transport and international logistics \n
- Precision tab dimensions and sealed construction ensure reliable connection and protection against vibration \n
Storage & Maintenance Guidelines
\nStore the battery in a cool, dry environment within -20°C to +35°C for long-term storage (>6 months) and at 65±20% relative humidity. For optimum lifespan, activate the battery once every 3 months by charging at 0.2C to 4.25V, resting 10 minutes, discharging at 0.2C to 2.5V, resting 10 minutes, and finally charging at 0.2C to 3.85V. Always insulate terminals with tape before disposal to prevent fire hazards.
\nSafety Warnings
\n- \n
- Do not immerse in water, expose to fire, or place near heat sources above 60°C \n
- Use only designated Li-ion battery chargers and never reverse polarity \n
- Avoid short-circuiting, crushing, dropping, or puncturing the cell \n
- Do not disassemble or modify the battery; replacement must be performed by qualified personnel \n
- Keep away from children and strong electrostatic or magnetic fields \n
- If electrolyte contacts eyes, rinse immediately with clean water and seek medical attention \n
- Discontinue use if the battery shows swelling, odor, discoloration, or abnormal heat \n
Ordering & Supply Information
\nSupplier: Shenzhen Jianheng Technology Co Ltd \nBrand: OID \nPlace of Origin: China \nCertifications: UN38.3, MSDS \nMinimum Order Quantity (MOQ): 1 piece \nSupply Ability: 100,000 units per month \nPackaging: Standard export carton with individual cell insulation \nDelivery Port: Shenzhen, China \nDelivery Time: 15-20 working days after order confirmation \nPayment Methods: T/T, L/C, Western Union \nPrice: Please contact our sales team for competitive pricing based on order volume
\nFor technical inquiries or custom battery solutions, contact us at: \nEmail: alan@liion-batt.com \nPhone: 0086 137 2555 9416 \nAddress: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
\nOur products are sold all over the world, you can rest assured.
