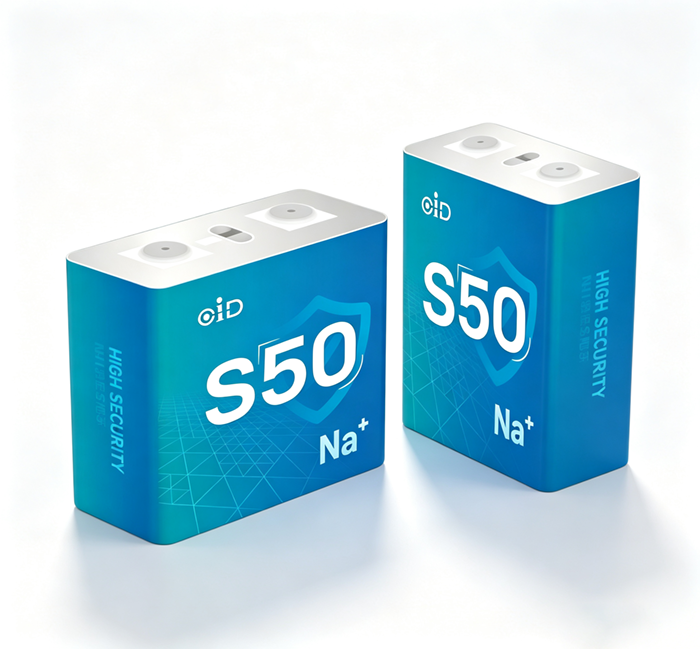

OID SIB50160118-50H Sodium-Ion Drone Battery 50Ah 6C High Rate Low Temperature Prismatic Cell for UAV
-
Highlight
50Ah Sodium-Ion Drone Battery
,6C High Rate Prismatic Cell
,Low Temperature UAV Battery
-
Nominal Capacity50Ah
-
Place of OriginChina
-
Brand NameOID
-
CertificationUN38.3, MSDS
-
Model NumberSIB50160118-50H-2.85V-6C-1602
-
Minimum Order Quantity1pcs
-
PriceContact for preferential solution pricing
-
Packaging DetailsStandard export packaging
-
Delivery Time15-30 days
-
Payment TermsL/C,D/A,D/P,T/T
-
Supply Ability100000 pcs per month
OID SIB50160118-50H Sodium-Ion Drone Battery 50Ah 6C High Rate Low Temperature Prismatic Cell for UAV
OID SIB50160118-50H Sodium-Ion Drone Battery Cell
High-rate 50Ah sodium-ion prismatic cell delivering 2.85V nominal voltage, 6C continuous discharge, 10C pulse discharge, and excellent low-temperature performance for demanding drone and UAV battery packs.
Key Features
- 50Ah nominal capacity at 0.2C, 2.85V nominal voltage
- 6C continuous discharge and 10C 45-second pulse discharge
- Approximately 90 percent capacity retained at -40 degrees Celsius
- 8000 to 10000 cycle life, several times that of lead-acid batteries
- Supports 0V activation charging for safe recovery from deep discharge
- Wide operating temperature range from -40 degrees Celsius to 60 degrees Celsius
- Prismatic aluminum-shell design with stable 0.2 MPa pressure cycling
- Low internal resistance of less than or equal to 0.5 milliohms
- Inherently high safety of sodium-ion chemistry
- Ideal for drone battery packs, UAV power systems, and high-rate start-up power
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SIB50160118-50H-2.85V-6C-1602 |
| Product Type | Sodium Ion Battery |
| Cell Type | Power type sodium-ion cell |
| Nominal Voltage | 2.85 V |
| Charge Voltage | 3.6 V |
| Nominal Capacity | 50 Ah at 25 plus or minus 2 degrees Celsius, 0.2C discharge |
| Typical Capacity | 50 Ah at 0.2C discharge |
| Standard Charging Method | 0.5C CC to 3.6 V, then CV to 0.05C cut-off at 25 plus or minus 2 degrees Celsius |
| Fast Charging Mode | 1.0C CC, 3.6 V maximum voltage, 0.05C cut-off current, 20 to 40 degrees Celsius |
| Maximum Continuous Charging Current | 1C at 0 to 60 degrees Celsius |
| Maximum Continuous Discharging Current | 6C at 0 to 60 degrees Celsius |
| Max Charge Current of 45 Second Pulse | 3C at 0 to 55 degrees Celsius; 6C at -40 to 0 degrees Celsius |
| Max Discharge Current of 45 Second Pulse | 10C at 0 to 60 degrees Celsius |
| Discharging Cut-off Voltage | 1.5 V at greater than 0 degrees Celsius; 1.0 V at less than or equal to 0 degrees Celsius |
| Operation Temperature | Charging: 0 to 40 degrees Celsius; Discharging: -40 to 60 degrees Celsius |
| Storage Temperature | -20 to 40 degrees Celsius: 1 month capacity recovery greater than or equal to 90 percent; -20 to 30 degrees Celsius: 2 months capacity recovery greater than or equal to 90 percent; -20 to 20 degrees Celsius: 3 months capacity recovery greater than or equal to 90 percent |
| Storage Condition | 50 percent SOC cell stored at 40 degrees Celsius for 1 month, 30 degrees Celsius for 2 months, or 20 degrees Celsius for 3 months, then recovered greater than or equal to 90 percent capacity at room temperature using standard charge/discharge mode |
| Internal Resistance | Less than or equal to 0.5 milliohms AC impedance at 1000 Hz |
| Weight | 1660 plus or minus 80 g |
| Thickness | 50.8 plus or minus 0.8 mm shipping thickness |
| Width | 160.3 plus or minus 0.8 mm |
| Height including terminals | 118.6 plus or minus 0.8 mm |
| Height excluding terminals | 116.2 plus or minus 0.8 mm |
| Positive/Negative Terminal Center Distance | 97 plus or minus 0.3 mm |
| Continuous Operation Temperature | 10 to 40 degrees Celsius |
| Operation Temperature Deviation | -20 to 11 degrees Celsius; 41 to 60 degrees Celsius |
| Over-Charging Voltage Protection | Less than or equal to 4.0 V, stop charging when battery voltage reaches 4.0 V |
| Over-Charging Voltage Limit | Less than or equal to 3.65 V, battery must not exceed this limit voltage |
| Discharging Voltage Protection | Greater than or equal to 1.5 V, stop discharging when battery voltage reaches 1.5 V |
| Discharging Voltage Limit | Greater than or equal to 1.0 V, battery must not be used below this limit |
| Appearance | No deep scratches, cracks, rust, discoloration or leakage that may adversely affect commercial value |
| Thickness maximum | 50.5 mm tested under 0.2 MPa pressure |
| Thickness Increase | Less than or equal to 10 percent of initial thickness after initial capacity reduced by 20 percent, cycle with 0.2 MPa pressure |
| Width maximum | 160.8 mm |
| Height maximum including terminals | 119.1 mm |
Performance Test Data
| Item | Condition | Result |
|---|---|---|
| Initial Capacity | Fully charged per standard 4.1.1, rest 1 h, discharged per standard 4.1.2 at 25 plus or minus 2 degrees Celsius | Greater than or equal to 50 Ah |
| Low-temperature Discharge | Charged per standard 4.1.1 at -20 degrees Celsius, discharged per standard 4.1.4 at -20 degrees Celsius | Greater than or equal to 80 percent of initial capacity |
| 6C Rate Discharge | Fully charged per standard 4.1.1, rest 1 h, discharged to 1.5 V at 6.0C | Greater than or equal to 90 percent of initial capacity |
| Room Temperature Storage | Charged per 4.1.1, discharged per 4.1.2, charged to 50 percent SOC at 0.5C, stored 30 days at 25 plus or minus 5 degrees Celsius | Capacity retention greater than or equal to 90 percent of initial value; capacity recovery greater than or equal to 95 percent of initial value; thickness increase less than or equal to 5 percent of initial value |
| Cycle Life | 0.5C charge / 1C discharge cycling at 25 plus or minus 3 degrees Celsius, 3000 cycles per 4.1.3 | 8000 to 10000 cycles expected for the sodium-ion system |
| Acceleration Impact Test | Fully charged per 4.1.1, 50g half-sine pulse for 11 ms, 6 impacts per axis on three mutually perpendicular axes (x, y, z) | No leakage |
| Vibration Test | Fully charged per 4.1.1, vibrated 1 h in each of 3 axes (x, y, z), sine waveform logarithmic scan from 7 Hz to 200 Hz and return to 7 Hz within 15 minutes | No leakage |
| Impact Test | Fully charged per 4.1.1, placed on a flat surface, 15.8 mm diameter metal rod at center, 9.1 kg weight dropped from 61 plus or minus 2.5 cm | No fire, no explosion |
| Over Discharge Test | Fully charged per 4.1.1, discharged at 1C for 90 minutes | No fire, no explosion |
| External Short-circuit Test | Fully charged per 4.1.1, positive and negative terminals connected with total resistance less than 5 milliohms for 10 minutes | No fire, no explosion |
| Heating Test | Fully charged per 4.1.1, heated at 5 degrees Celsius per minute to 130 plus or minus 2 degrees Celsius, held 30 minutes, observed 1 h | No fire, no explosion |
| Extrusion Test | Fully charged per 4.1.1, extruded per GB 38031-2020 until voltage reaches 0 V, deformation reaches 30 percent, force reaches 100 kN, or force reaches 1000 times cell weight | No fire, no explosion |
| Overcharge Test | Fully charged per 4.1.1, charged at 1.0C to 1.5 times upper limit voltage (5.4 V), observed 1 h | No fire, no explosion |
Safety and Application
The OID SIB50160118-50H sodium-ion cell is engineered for high-safety residential and industrial energy storage, low-temperature discharge and charging start-up power sources, and high-rate long-cycle start-up power for forklifts, engineering vehicles, motorcycles, trucks, and drone battery packs. Its sodium-ion chemistry provides inherent safety advantages over lead-acid batteries, and the cell supports 0V activation charging for safe recovery from deep discharge.
Storage and handling: Store separately in a cool (less than or equal to 25 degrees Celsius) dry area for long-term storage, away from direct sunlight, heated environments, and high static environments. Keep away from children or pets. During transport, check positive and negative directions before packaging and verify insulation to prevent short circuits. When monomers are used for module or component assembly, adopt the first-in, first-out principle. Do not soak or wet the cell with water or seawater, and do not place it in microwave ovens or high-voltage containers.
Warnings: Incorrect use may lead to heating, fire, and performance degradation. Do not use different chargers; do not charge beyond the maximum charging current; do not disassemble or reinstall the battery; do not throw or cause impact; do not pierce the battery with sharp objects; do not use the cell together with other battery systems; do not package old and new batteries together; do not expose the battery to high temperatures such as fire; do not put the battery in a microwave oven or high-voltage container; do not connect the positive and negative terminals with conductive materials; do not allow the battery to be soaked or wet by water or seawater. Do not place the battery in direct sunlight or heated environments; do not use batteries in high static environments. Batteries must be kept away from children or pets. When rust or odor is detected during first use, return the product to the seller immediately. When battery life shortens after prolonged use, replace it with a new battery. Do not wear metal objects such as wristbands or watches when handling batteries. The charging time shall not exceed the time specified in the manual. Do not expose the battery outside the operating temperature range specified in this document. For any matters not covered in this specification, please consult with Jianheng.
Warranty
Jianheng warrants that the SIB50160118-50H-2.85V-6C-1602 sodium-ion cell is free from defects in materials and workmanship under normal use and service for a period of 12 months from the date of shipment or 24 months from the date of manufacture, whichever occurs first, unless otherwise agreed in writing. The warranty is subject to the cell being stored, charged, discharged and operated strictly in accordance with this specification. The warranty does not cover damage resulting from overcharge, over-discharge, external short circuit, mechanical abuse, immersion in water or seawater, use with incompatible chargers or battery systems, mixing old and new cells, disassembly, or any use outside the specified operating conditions. The warranty is limited to replacement or repair of defective cells at Jianheng's discretion and does not cover consequential or incidental damages.
Manufacturer Information
Shenzhen Jianheng Technology Co Ltd
Phone: 0086 137 2555 9416
Email: alan@liion-batt.com
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
