OID SIB50160118-50H 2.85V 50Ah Sodium-Ion Prismatic Power Cell 6C Continuous 10C Pulse Discharge 8000-10000 Cycle Life -40C Low Temperature

OID SIB50160118-50H-2.85V-6C-1602 Sodium-Ion Prismatic Power Cell

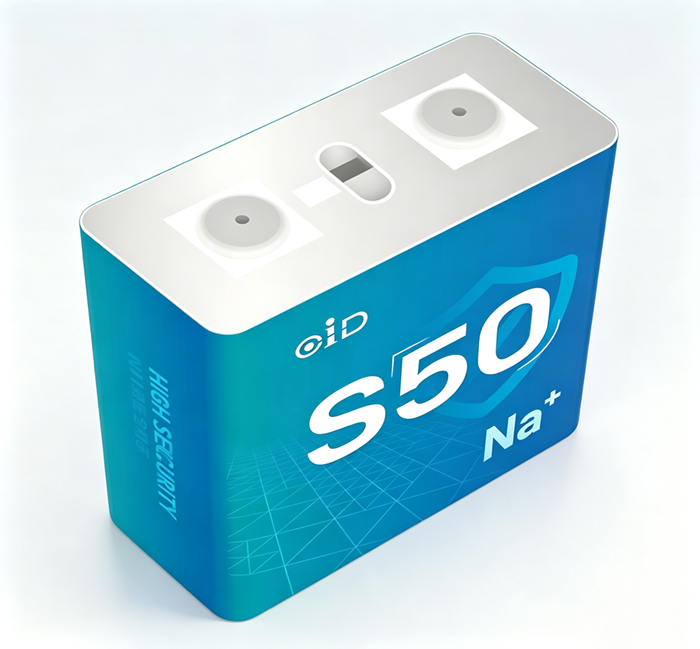

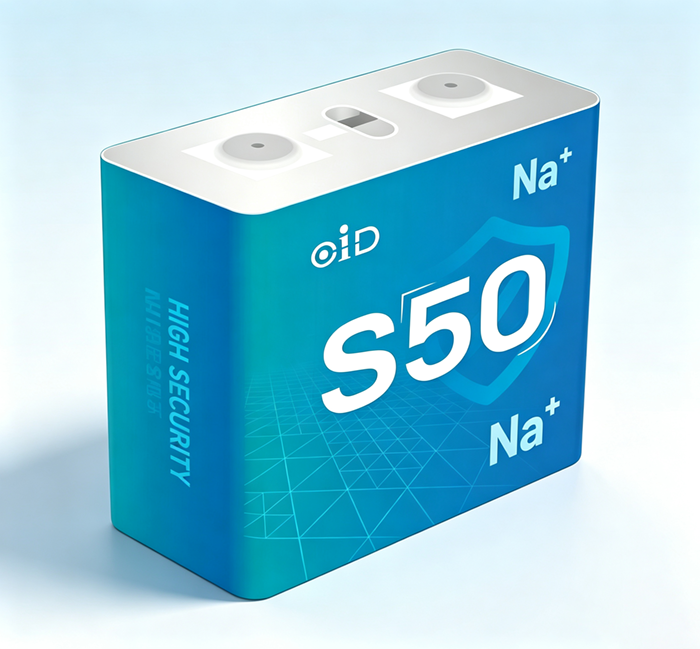

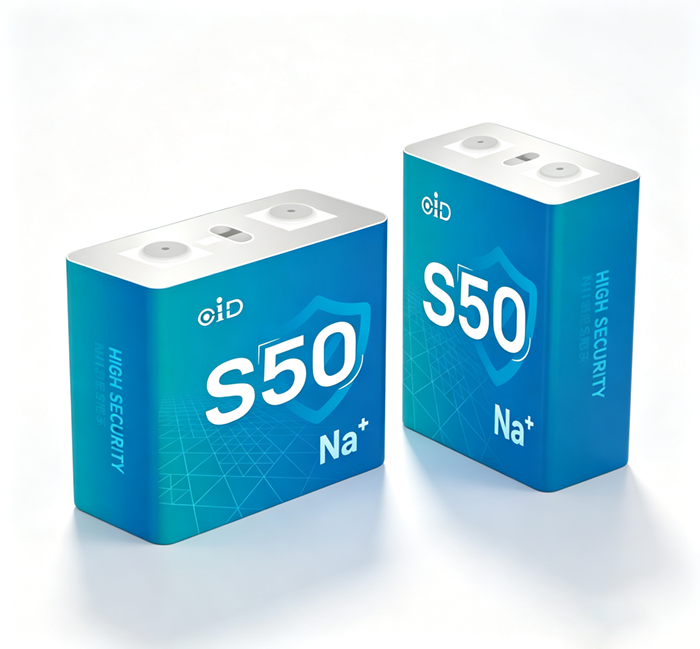

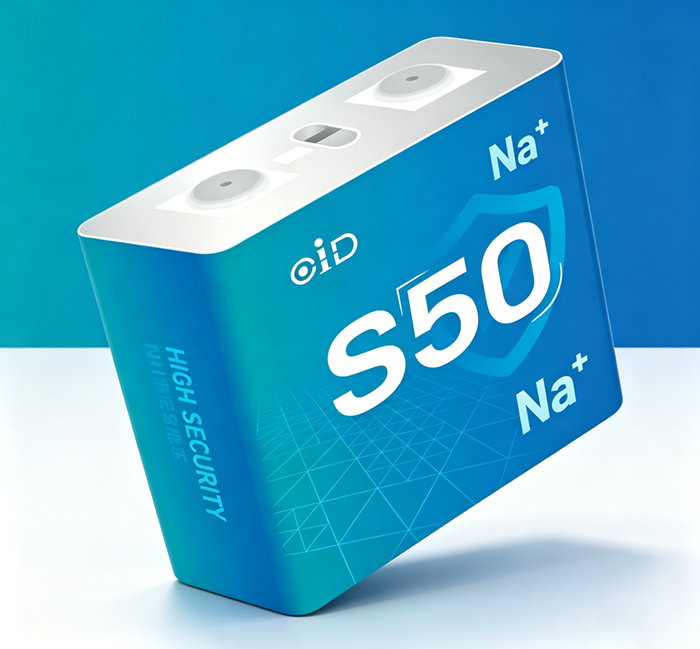

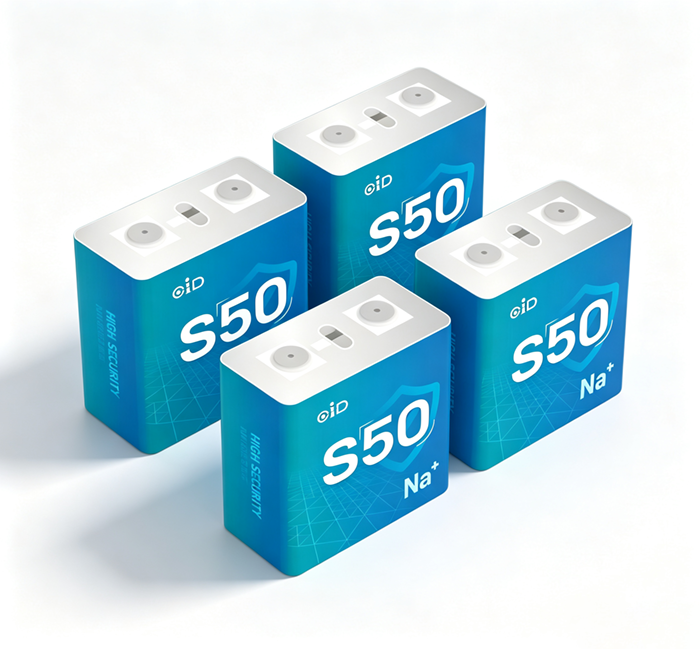

The OID SIB50160118-50H-2.85V-6C-1602 is a rechargeable prismatic aluminum-shell sodium-ion power cell manufactured by Shenzhen Jianheng Technology Co Ltd under the OID brand. It is designed for power-type applications requiring high safety, high rate capability and long cycle life. The cell delivers a nominal voltage of 2.85 V, a nominal capacity of 50 Ah at 0.2C, and supports continuous discharge rates up to 6C, with 45-second pulse discharge capability up to 10C and pulse charge capability up to 6C. It operates over a wide temperature range from -40 C to 60 C and retains approximately 90% of initial capacity at -20 C discharge, with excellent low-temperature performance approaching 90% even at -40 C. The cell is activated and chargeable from 0 V and is engineered to combine the inherent high safety of sodium-ion chemistry with a cycle life of 8000 to 10000 cycles, which is several times that of lead-acid batteries.

Key Advantages

• Inherently high safety of sodium-ion chemistry compared with lead-acid batteries.
• Cycle life of 8000 to 10000 cycles, several times that of lead-acid batteries.
• Excellent low-temperature discharge performance: approximately 90% capacity retained at -40 C.
• High rate capability up to 40C, with continuous 6C discharge and 10C pulse discharge for 45 seconds.
• Supports 0 V activation charging, enabling safe recovery from deep discharge.
• Wide operating temperature range from -40 C to 60 C.
• Prismatic aluminum-shell design with stable 0.2 MPa pressure cycling behavior.
• Suitable for high-safety residential and industrial energy storage.
• Ideal for low-temperature discharge and charging start-up power sources.
• Well suited to high-rate, long-cycle start-up power for forklifts, engineering vehicles, motorcycles and trucks.

Technical Specifications

Dimensions

Prismatic aluminum-shell sodium-ion cell with two terminals on the top. The cell has a shipping thickness T of 50.8 +/- 0.8 mm, a width W of 160.3 +/- 0.8 mm, a height H of 118.6 +/- 0.8 mm including terminals and HO of 116.2 +/- 0.8 mm excluding terminals. The center distance D between the positive and negative terminals is 97 +/- 0.3 mm. The terminal layout drawing also shows dimensions of 97 +/- 0.3 mm, 23 mm, 31.40 mm and 8.80 mm.

Performance Test Data

Storage and Transportation

The cell must be stored separately in a cool (less than or equal to 25 C) dry area for long-term storage, away from direct sunlight, heated environments and high static environments. The battery must be kept away from children or pets. For storage, a 50% SOC cell stored at 40 C for 1 month, 30 C for 2 months, or 20 C for 3 months can recover greater than or equal to 90% capacity at room temperature using the standard charge and discharge mode. During transport, the positive (+) and negative (-) directions must be checked before packaging, and insulation must be verified to prevent short circuits when wiring boards or wires are connected to the battery. The cell must not be exposed to temperatures outside the specified operating temperature range. When monomers are used for module or component assembly, the first-in, first-out principle should be adopted. The cell must not be soaked or wetted by water or seawater, and must not be placed in microwave ovens or high-voltage containers.

Warranty

Jianheng warrants that the SIB50160118-50H-2.85V-6C-1602 sodium-ion cell is free from defects in materials and workmanship under normal use and service for a period of 12 months from the date of shipment or 24 months from the date of manufacture, whichever occurs first, unless otherwise agreed in writing. The warranty is subject to the cell being stored, charged, discharged and operated strictly in accordance with this specification, including the specified temperature ranges, charge and discharge limits, and handling requirements. The warranty does not cover damage resulting from overcharge, over-discharge, external short circuit, mechanical abuse, immersion in water or seawater, use with incompatible chargers or battery systems, mixing old and new cells, disassembly, or any use outside the specified operating conditions. The warranty is limited to replacement or repair of defective cells at Jianheng's discretion and does not cover consequential or incidental damages. Any matters not covered in this specification shall be negotiated with Jianheng.

Warnings

The following warnings apply to the use of this sodium-ion rechargeable cell. Incorrect use may lead to heating, fire and performance degradation. Please refer to the user manual before using applications with the battery, and read the specific charger manual before charging. Stop charging when the battery does not charge after prolonged contact with the charger. Check the positive (+) and negative (-) directions before packaging, and verify insulation to avoid short circuits when connecting wiring boards or wires. Do not use different chargers; do not charge beyond the maximum charging current; do not disassemble or reinstall the battery; do not throw or cause impact; do not pierce the battery with sharp objects such as nails, knives, pencils or drills; do not use the cell together with other battery systems; do not package old and new batteries together; do not expose the battery to high temperatures such as fire; do not put the battery in a microwave oven or high-voltage container; do not use the battery in violation of regulations; do not connect the positive (+) and negative (-) terminals with conductive materials such as metals or wires; do not allow the battery to be soaked or wet by water or seawater. Do not place the battery in direct sunlight or heated environments; do not use batteries in high static environments; batteries must be kept away from children or pets. When rust or odor is detected during first use, return the product to the seller immediately. When battery life shortens after prolonged use, replace it with a new battery. Do not wear metal objects such as wristbands or watches when handling batteries. The charging time shall not exceed the time specified in the manual. Do not expose the battery outside the operating temperature range specified in this document. For any matters not covered in this specification, please consult with Jianheng.

Frequently Asked Questions (FAQ)

Q1: What is the nominal voltage and capacity of this sodium-ion cell?

A1: The nominal voltage is 2.85 V and the nominal capacity is 50 Ah at 0.2C discharge at 25 +/- 2 C. The typical capacity is also 50 Ah at 0.2C discharge.

Q2: What are the maximum continuous and pulse discharge rates?

A2: The maximum continuous discharging current is 6C from 0 to 60 C. The maximum discharge current for a 45-second pulse is 10C from 0 to 60 C. This makes the cell suitable for high-rate start-up power applications.

Q3: How does the cell perform at low temperatures?

A3: The cell operates from -40 C to 60 C for discharging. At -20 C, it retains approximately 90% of initial capacity. Even at -40 C, low-temperature performance approaches 90% capacity retention. The cell also supports pulse charging at 6C from -40 to 0 C.

Q4: What is the cycle life of this sodium-ion battery?

A4: The expected cycle life is 8000 to 10000 cycles for the sodium-ion system. Cycle life testing is performed with 0.5C charge and 1C discharge cycling at 25 +/- 3 C, with capacity retention calculated from the last discharge capacity.

Q5: Can the cell be activated from 0 V?

A5: Yes, the cell supports 0 V activation charging, enabling safe recovery from deep discharge. This is a key safety and maintenance advantage of the sodium-ion chemistry.

Q6: What are the charging specifications?

A6: The standard charging method is 0.5C CC to 3.6 V, then CV to 0.05C cut-off at 25 +/- 2 C. The maximum continuous charging current is 1C from 0 to 60 C. Fast charging mode is 1.0C CC, 3.6 V maximum voltage, 0.05C cut-off current, from 20 to 40 C. The maximum charge current for a 45-second pulse is 3C at 0 to 55 C and 6C at -40 to 0 C.

Q7: What are the storage recommendations?

A7: Store the cell separately in a cool (less than or equal to 25 C) dry area, away from direct sunlight, heated environments and high static environments. Keep away from children or pets. For long-term storage, a 50% SOC cell stored at 40 C for 1 month, 30 C for 2 months, or 20 C for 3 months can recover greater than or equal to 90% capacity at room temperature using standard charge and discharge mode.

Q8: What safety tests has the cell passed?

A8: The cell has passed acceleration impact, vibration, impact, over discharge, external short-circuit, heating, extrusion, and overcharge tests. In all abuse tests, the cell exhibits no fire and no explosion. The cell also shows no leakage in acceleration impact and vibration tests.

Q9: What is the internal resistance and weight of the cell?

A9: The internal resistance is less than or equal to 0.5 mOhm (AC impedance, 1000 Hz). The weight is 1660 +/- 80 g.

Q10: What are the dimensions of the cell?

A10: The shipping thickness is 50.8 +/- 0.8 mm, width is 160.3 +/- 0.8 mm, height including terminals is 118.6 +/- 0.8 mm, and height excluding terminals is 116.2 +/- 0.8 mm. The positive and negative terminal center distance is 97 +/- 0.3 mm.

Q11: What is the warranty period?

A11: Jianheng warrants the cell for 12 months from the date of shipment or 24 months from the date of manufacture, whichever occurs first, unless otherwise agreed in writing. The warranty covers defects in materials and workmanship under normal use and service, subject to strict adherence to the specification.

Q12: What certifications are available?

A12: The product is certified with UN38.3 and MSDS for safe transportation and handling.

Q13: What is the minimum order quantity (MOQ)?

A13: The MOQ is 1pcs. Sample orders are welcome for evaluation and testing.

Q14: What are the payment methods and delivery terms?

A14: Payment methods are negotiable. Please contact us for favorable pricing and delivery terms. Supply ability is 100000 pieces per month. Delivery time is typically 15 to 30 days after order confirmation, depending on quantity.

Q15: What applications is this cell suitable for?

A15: The cell is ideal for high-safety residential energy storage, industrial energy storage, low-temperature discharge and charging start-up power sources, and high-rate long-cycle start-up power for forklifts, engineering vehicles, motorcycles and trucks.
