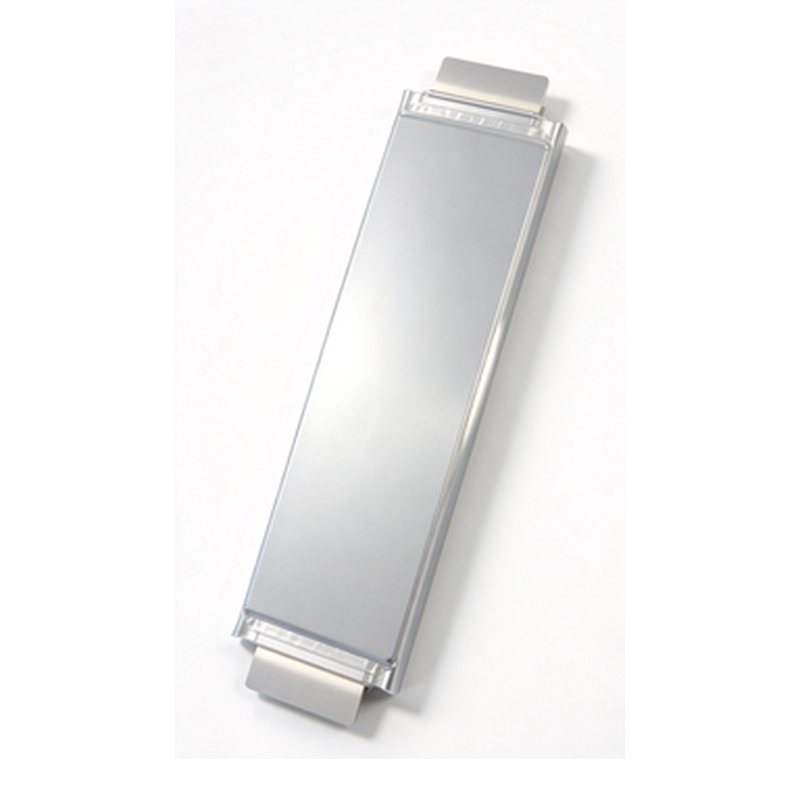

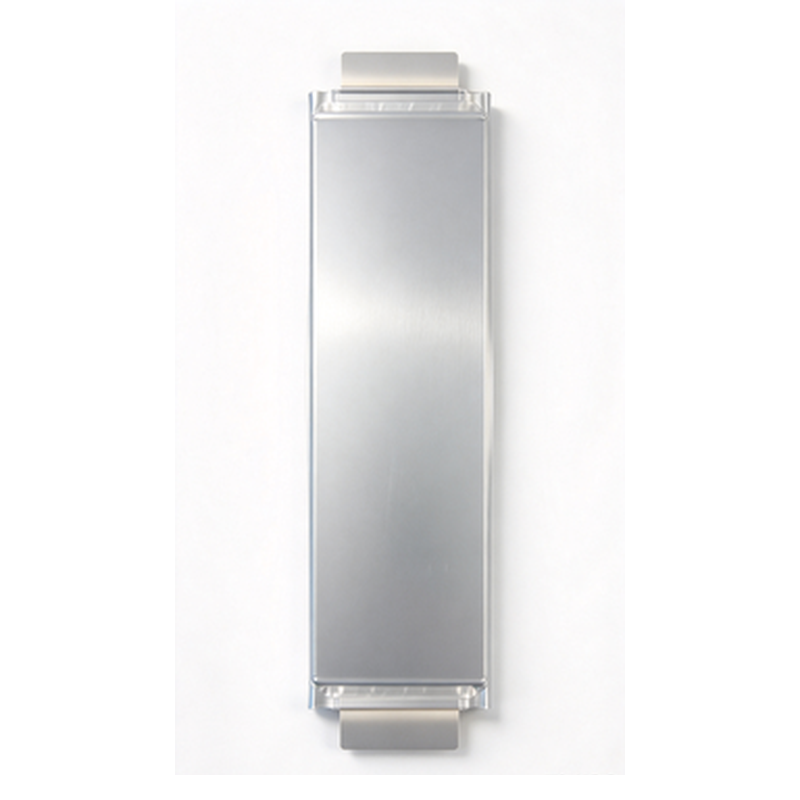

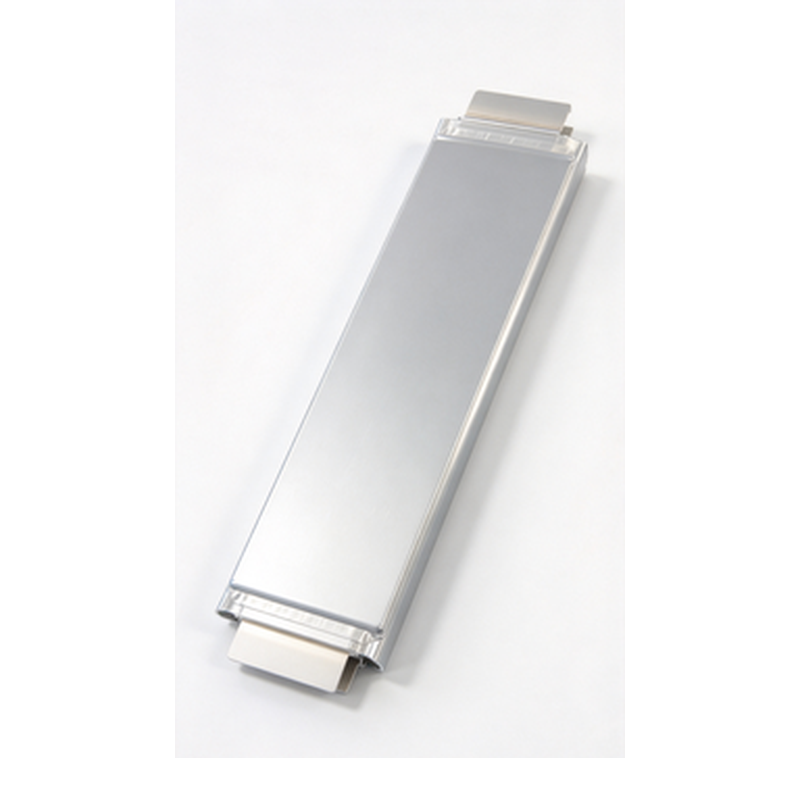

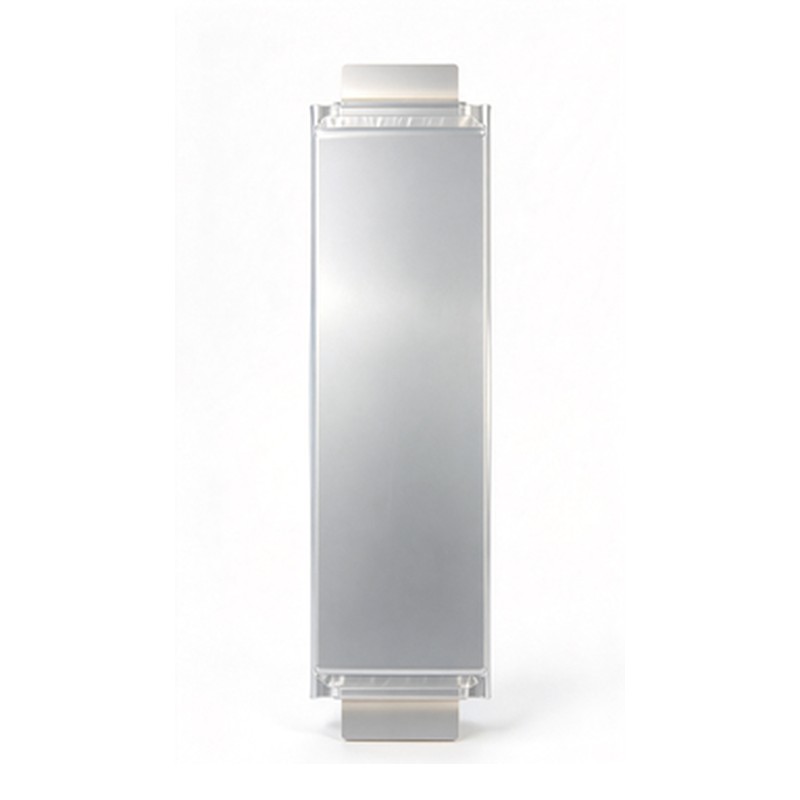

120000mAh 3.7V Ultra-High Capacity Drone Battery LiPo Battery Cell for Long-Endurance UAV Systems

When your drone is hovering over a critical inspection site, racing against a delivery deadline, or mapping kilometers of terrain on a single sortie, the last thing you need is a battery that limits your flight time or struggles under high current loads. The OID13119358-120000mAh-3.7V-3C-0112 from Shenzhen Jianheng Technology Co Ltd is engineered for exactly these moments. With a typical capacity of 123.0Ah, a minimum capacity of 120.0Ah, and an average energy density of 421Wh/kg, this ultra-high capacity lithium-ion polymer cell delivers the endurance, power, and reliability that professional UAV and drone platforms demand.

This cell is not just about raw numbers. It is about solving real operational problems: short flight times, voltage sag under heavy throttle, slow recharge cycles, and safety concerns during aggressive missions. Jianheng has combined an aluminum plastic film shell, low internal resistance, and a wide operating temperature range to create a cell that performs when it matters most.

• Ultra-high capacity: Typical 123.0Ah and minimum 120.0Ah, suitable for long-endurance UAV and drone applications.
• Ultra-high discharge current: Maximum continuous discharge current of 2.0C and maximum pulse discharge current of 3.0C/30s.
• Fast charging capability: Maximum continuous charge current of 0.5C.
• High energy density: Average energy density of 421Wh/kg.
• Low internal resistance: ACIR at 1kHz less than or equal to 1.0 milliohm at 40% SOC.
• Wide operating temperature range: Charging 0 degrees C to 45 degrees C and storage -20 degrees C to 45 degrees C.
• Reliable safety performance: Passes external short circuit, over-discharge, crush, overcharge, drop, saltwater immersion, low pressure, and temperature cycling tests without explosion or fire.
• Long cycle life: Greater than or equal to 80% initial capacity after 300 cycles at 25 plus or minus 2 degrees C.

The cell dimensions are measured without scales. The cell thickness is 11.8mm max at 40% SOC and 13.5mm max at 100% SOC for fresh cells. The width is 119.0mm max and the length is 358.0mm max.

Imagine a survey drone that needs to cover 500 hectares in a single flight. With a conventional 20Ah battery, the mission might require multiple battery swaps and hours of downtime. The OID 13119358 cell, with its 123.0Ah typical capacity, can extend flight endurance dramatically. For a platform consuming 100A at cruise, the math is simple: 123Ah divided by 100A gives over 1.2 hours of continuous flight, compared to just 12 minutes with a 20Ah pack. That is the difference between a quick hop and a full-scale mapping operation.

But capacity alone is not enough. When the drone climbs aggressively or fights headwinds, the current draw spikes. The OID 13119358 supports a maximum continuous discharge current of 2.0C (approximately 240A) and a pulse discharge current of 3.0C (approximately 360A) for 30 seconds. This means voltage sag is minimized, and the drone maintains stable power even during demanding maneuvers. The low ACIR of less than or equal to 1.0 milliohm at 1kHz ensures that energy is delivered efficiently, not wasted as heat.

Fast charging is another critical factor. With a maximum continuous charge current of 0.5C, the cell can be recharged at approximately 60A. For a 120Ah pack, this means a full charge in about two hours, reducing turnaround time between missions. The wide charging temperature range, from 0 degrees C to 45 degrees C with derating, allows operation in diverse climates, from cold morning flights to hot desert conditions.

Safety is paramount in aviation. The OID 13119358 has passed a rigorous battery of tests: external short circuit, over-discharge, crush, overcharge, drop, saltwater immersion, low pressure, and temperature cycling. In each case, the cell exhibited no explosion and no fire. This level of safety performance gives integrators and operators confidence that the battery will not become the weakest link in a critical mission.

Consider a delivery drone operator who needs to transport medical supplies to remote areas. Each flight is 45 minutes. With a 123Ah cell, the drone can carry a heavier payload or fly a longer route without recharging. The cycle life of greater than or equal to 80% initial capacity after 300 cycles means the battery can support hundreds of missions before significant degradation. At one mission per day, that is nearly a year of reliable service. The storage performance, with residual capacity greater than or equal to 90% after 30 days at 25 degrees C, ensures that the battery is ready when needed, even after periods of inactivity.

For high-performance drone racing or freestyle, the pulse discharge capability of 3.0C for 30 seconds provides the burst of power needed for rapid acceleration and vertical climbs. The lightweight design, with an average weight of 1080g and an energy density of 421Wh/kg, helps keep the overall drone weight low, improving agility and flight time.

To ensure safe and optimal performance, always follow these guidelines:

• Never throw the battery into water or seawater. Keep it in a dry, shady, and cool environment when not in use.
• Never keep the battery beside high-temperature sources such as fire or heating machines.
• Please use the stated charger when charging.
• Never reverse the positive and negative terminals.
• Never insert the battery directly into a power socket.
• Never throw the battery into fire or a heating machine.
• Never connect the positive and negative terminals with metal to short-circuit.
• Never ship or store the battery together with metal objects such as hairpins or necklaces.
• Never knock, throw, or trample the battery.
• Never directly weld the battery or pierce it with nails or other sharp tools.
• Do not mix lithium-ion batteries with other different lithium polymer battery models.
• Do not bend or fold the sealing edge. Do not open or deform the folding edge. Do not fillet the end of the folding edge.
• Do not drop, impact, or bend the battery body.
• Battery pack design and packing must not damage the battery.
• Conductive components contacting the two edges of the battery must be insulated.
• Do not use or leave the battery at very high temperatures (e.g., strong direct sunlight or in a very hot vehicle), otherwise it may overheat, catch fire, or its performance may degrade and its service life may be shortened.
• Never use the battery under strong static and strong magnetic fields, otherwise the protecting device may be destroyed.
• If the battery leaks and electrolyte gets into the eyes, do not knead. Wash eyes with water and send to hospital immediately. Otherwise, it will hurt the eyes.
• If the battery emits a peculiar smell, heats, distorts, or appears unconventional during use, storage, or charging, please take it out from the device or charger and stop using it.
• If the pole is dirty, please clean it before use.
• Please encase the pole with insulating paper when you want to abandon the battery to prevent explosion and fire.
• Prevent charging the battery at temperatures lower than specified, otherwise unnecessary degradation of capacity may occur.
• Prevent draining any product down to an over-discharge state. A product may be permanently damaged internally when its voltage is lower than 2.00V, and Jianheng's warranties shall cease to apply.
• The heat dissipation of the product should be fully considered in the design of the battery system. Jianheng will not be responsible for quality assurance due to overheating damage caused by the heat dissipation design.
• The waterproof and dust-proof problem of the battery system should be fully considered. The battery system must meet the waterproof and dust-proof grades stipulated by relevant national standards. Jianheng is not responsible for quality assurance due to damages caused by waterproof and dust-proof problems.
• It is forbidden to mix different P/N products in the same battery system or vehicle, otherwise Jianheng will not be responsible for quality protection.
• When the internal resistance of a battery cell in use exceeds 300% of its initial resistance or its capacity is less than or equal to 70% (25 degrees C), the battery cell should be stopped from use. If this requirement is violated, Jianheng will not be held responsible for quality assurance.

The battery should be stored in a dry, shady, and cool environment. The storage temperature range is -20 to 25 degrees C at 80% RH max for 12 months, -20 to 35 degrees C at 80% RH max for 3 months, and -43 to 45 degrees C at 80% RH max for 1 month, all at 40% SOC. For prolonged storage (more than one month), the SOC should be adjusted to around 50%. After three months of 50% SOC storage, the battery should be charged and discharged once to adjust SOC to around 50%. If 50% SOC storage exceeds 9 months without charge-discharge maintenance, Jianheng will not be responsible for quality protection due to capacity loss or other defects. The battery is charged to 40% of minimum capacity before shipment, with voltage controlled at 3.25V to 3.65V. The measuring test should be performed within one month after shipment from the factory. During transportation, the battery should be protected from short circuit, moisture, and mechanical damage. It is forbidden to mix different P/N cells in the same battery system or vehicle.

Jianheng provides a quality assurance for the battery cell. The client shall complete the warehouse inspection within 15 days after receiving the cells, including but not limited to voltage, self-discharge, internal resistance, and appearance. Potential defective cells should be picked out and confirmed with Jianheng. Defective cells generated by the client during the cell assembly process after shipment are not within the scope of Jianheng's quality assurance. The client shall install a reasonable number of thermal sensors to monitor and record cell temperature throughout the entire service life. The client shall procure that each product shall be used under the strict monitor, control, and protection by the Battery Management System (BMS). The client shall provide detailed BMS information to Jianheng for design review and record keeping. The client shall keep complete records of the BMS monitoring data throughout the entire service life of each product. No warranty or liability claim will be considered without a complete set of BMS monitoring records. The product liability is subject to the terms and conditions of the contract. Jianheng reserves the right to revise product specifications and maintenance characteristics without prior notice.

This ultra-high capacity UAV drone battery cell is available with a minimum order quantity of 1 piece. For pricing and customized solutions, please contact Jianheng directly. Certification includes UN38.3 and MSDS. Supply ability is 100000 pieces per month. Packaging and port details are available upon request.
