16000mAh 22.2V 30C Drone Battery LiPo Battery Pack for UAV High-Rate Discharge

OID 7379186 16000mAh 22.2V 30C 6S High-Rate LiPo Battery Pack for UAV Drone

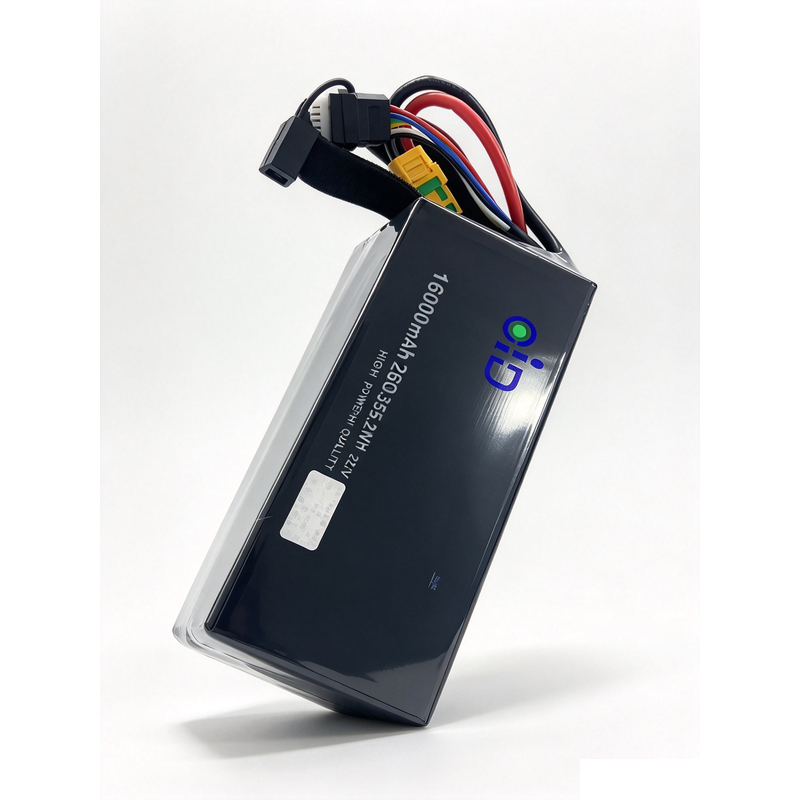

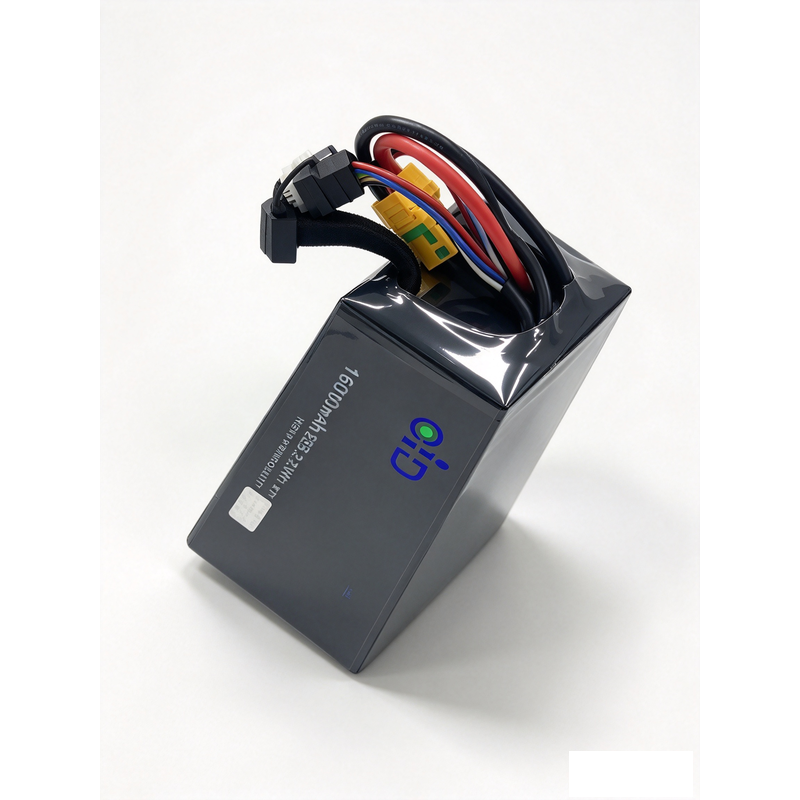

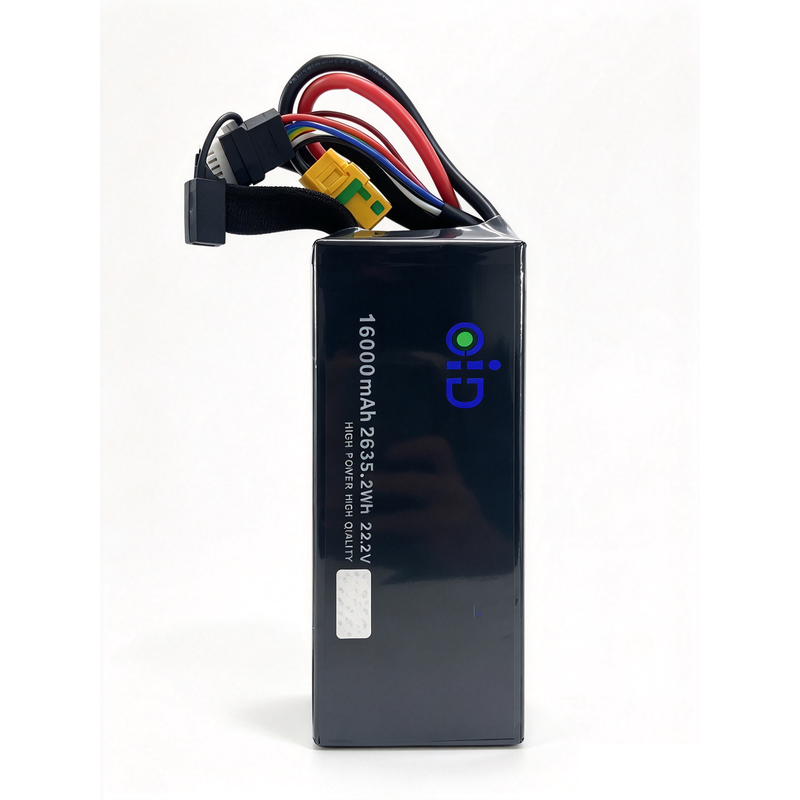

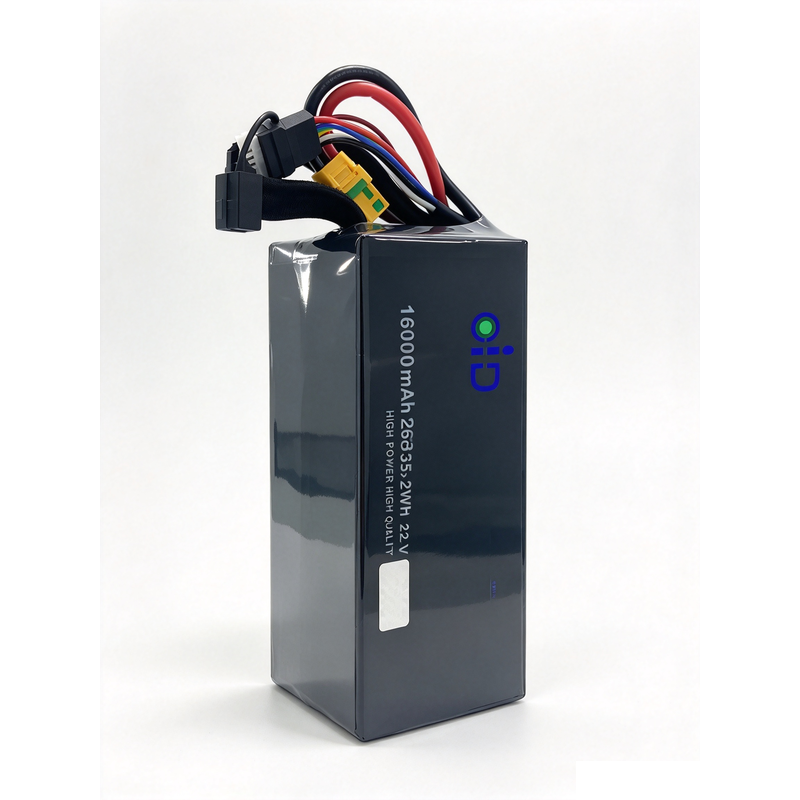

The OID7379186-16000mAh-22.2V-30C-0105 is a high-rate lithium polymer battery pack designed for high-performance drone and UAV applications. It features a 6S configuration with a nominal voltage of 22.2V and a nominal capacity of 16000mAh. The battery pack is equipped with an XT-90S discharge connector and a JST-XH-7P reverse-direction charging connector. It is assembled with a black heat-shrink sleeve, a magic strap, and an outer transparent PVC wrap. The pack is engineered to deliver high discharge current, low internal resistance, and stable performance, making it suitable for demanding aerial platforms such as agricultural plant protection drones and other high-performance UAVs.

Advantages

• High-rate discharge capability: Continuous discharge current up to 70A and peak current up to 90A, with the battery cells capable of supporting up to 240A continuous and 480A peak.
• Instant 30C high-rate support: The cells are designed to support instantaneous 30C discharge rate for high-power demand scenarios.
• Low internal resistance: Initial impedance of the finished pack is less than or equal to 15mOhm, ensuring high efficiency and reduced heat generation.
• High stability: The battery pack offers stable performance across a wide operating temperature range and maintains over 90 percent residual capacity after 30 days of storage.
• Long cycle life: Cycle life is greater than or equal to 500 cycles with capacity retention of 80 percent or more under specified test conditions.
• Reliable mechanical durability: Passes vibration, drop, over-discharge, and over-charge tests without fire or leakage.
• Optimized for high-performance UAV: The pack is specifically configured with high-current XT-90S discharge wiring and a reliable charging connector for professional drone applications.

Technical Specifications

Dimensions

Performance Test Data

Storage and Transportation

The battery pack shall be stored within -20 degrees C to 40 degrees C. For long-term storage (more than once every three months must fill the electricity), the environmental condition should be: temperature 23 plus or minus 5 degrees C, humidity 65 plus or minus 20 percent RH. The voltage for long-term storage shall be 21.6V to 23.4V. The battery should be charged once every 3 months and kept at about 50 percent charge state. During transportation, the battery should be kept away from water, fire sources, and strong impacts. The product should be packed properly to prevent short circuits and mechanical damage. The shipment voltage is greater than or equal to 23.1V.

Warranty

Jianheng warrants that the OID7379186-16000mAh-22.2V-30C-0105 battery pack is free from defects in materials and workmanship under normal use and service for a period of 12 months from the date of shipment. This warranty is subject to the following conditions: the battery must be used, charged, and stored in accordance with the specifications and instructions provided in this document; the battery must not be disassembled, modified, or subjected to physical abuse, water immersion, or unauthorized repair. The warranty does not cover damage caused by improper charging, over-discharge, over-current, external short circuit, or use beyond the specified operating limits. The warranty is limited to the repair or replacement of the defective product at Jianheng's discretion. Jianheng shall not be liable for any incidental or consequential damages arising from the use of this product.

Warnings

• Do not put the product into water.
• Do not use the product near fire sources or heat sources.
• Do not disassemble or modify the product without authorization.
• Do not smash or strongly impact the product.
• Please charge with a special charger designed to meet the requirements of this specification.
• The charge current and charge voltage must not exceed the maximum values specified in this specification.
• The charger design should meet the requirements of this specification. Using current and voltage ranges beyond the requirements of this specification may cause quality problems in battery charge and discharge performance, mechanical performance, and safety performance.
• The cell/battery pack shall be equipped with a PCM that can properly protect the cell/battery pack. The PCM shall have functions of (1) overcharging prevention, (2) over-discharging prevention, and (3) over-current prevention to maintain safety and prevent significant deterioration of cell performance. Over-current can occur by external short circuit.
• Do not expose batteries to direct sunlight.
• The above warnings are based on the danger of using the battery. The user will take full responsibility for the result of using this battery.

Frequently Asked Questions

Q: What is the recommended charging method for this battery?

A: The standard charging method is 0.5C CC charge to 25.2V, then CV 25.2V until charge current declines to less than or equal to 0.02C. The maximum charge current is 3.0C at 23 plus or minus 5 degrees C. Always use a special charger designed to meet the requirements of this specification.

Q: What is the maximum continuous and peak discharge current?

A: The continuous discharge current is up to 70A, and the peak discharge current is up to 90A, determined by plug and wire. The battery cells can support up to 240A continuous and 480A peak.

Q: How should I store the battery for long periods?

A: For long-term storage, keep the battery at a temperature of 23 plus or minus 5 degrees C and humidity of 65 plus or minus 20 percent RH. The voltage should be 21.6V to 23.4V. Charge the battery once every 3 months and keep it at about 50 percent charge state. The storage temperature range is -20 degrees C to 40 degrees C.

Q: What is the cycle life of this battery pack?

A: The cycle life is greater than or equal to 500 cycles with capacity retention of 80 percent or more under specified test conditions (Charge: 1C to 25.2V; Discharge: 5C to 19.8V).

Q: What safety tests does this battery pass?

A: The battery pack passes vibration, drop, over-discharge, and over-charge tests without fire or leakage. It also has a PCM that provides overcharging prevention, over-discharging prevention, and over-current prevention.

Q: What connectors does this battery use?

A: The discharge connector is an XT-90S female connector with UL3135# 10AWG wire, exposed wire length 150 plus or minus 10mm. The charging connector is a JST-XH-7P reverse-direction waterproof plug with UL3239# 22AWG wire, exposed wire length 150 plus or minus 10mm.

Q: What is the shipment voltage?

A: The shipment voltage is greater than or equal to 23.1V.

Q: What certifications does this battery have?

A: The battery is certified with UN38.3 and MSDS.
