23Ah Solid State Battery 3.67V 10000 Cycles Fast Charge

OiD1074172S230 3.67V 23Ah 3C Discharge 10000 Cycles Solid State Battery

Product Name

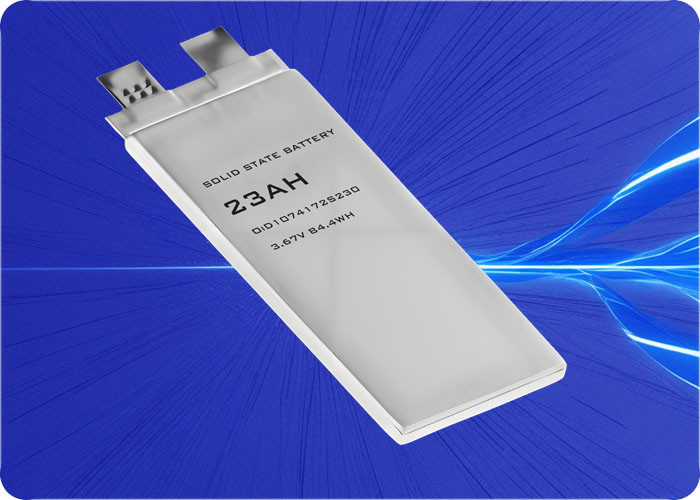

Solid State Pouch Cell (Model: OiD1074172S230)

Advantages

• High Energy Density (292Wh/kg)
• High Power Capability (10C Peak Discharge)
• Excellent Temperature Performance (-30°C to 100°C)

Specifications

Cycle Life

Operating Temperature Range

Certifications

Compliant with solid state battery standards (IEC 62660, UN38.3)

Key Features

• Advanced solid state battery technology
• Superior cycle life performance
• Wide operating temperature range
• High power density

Applications

• Electric vehicle power systems
• Energy storage solutions
• High-performance industrial equipment
• Medical devices

Usage Warnings & Precautions

• Do not exceed 4.2V charging voltage
• Avoid discharge below 2.75V
• Must use with compatible battery management system
• Do not expose to temperatures outside operating range

Storage Guidelines

• Recommended storage SOC: 30-50%
• Short-term storage: -20°C to 45°C
• Long-term storage: -10°C to 35°C
• Store in dry environment

Warranty & Disclaimer

• 24-month limited warranty
• Warranty covers manufacturing defects only
• Not responsible for improper use or installation
